Item Code: GH-304-HM

Push Pull Toggle Clamp. Stroke 60mm. Overall Length 236mm. Holding Force 680daN.

Item Code: GH-304-HM

Push Pull Toggle Clamp. Stroke 60mm. Overall Length 236mm. Holding Force 680daN.

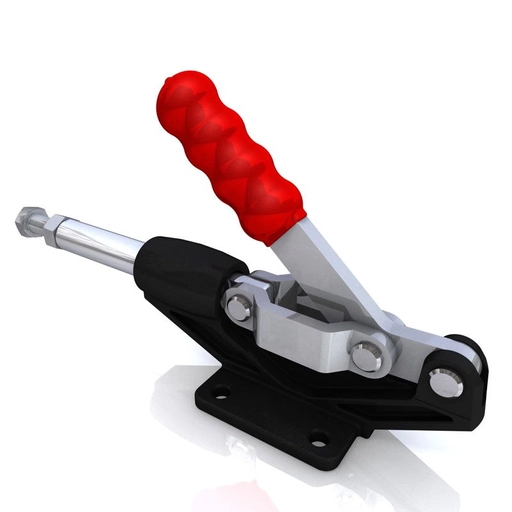

GH-304-HM Push Pull Toggle Clamp with Plunger Stroke 60mm Size 680daN

Holding Force: 680daN
Plunger Stroke: 60mm
Handle Opens: 180°
Weight: 1.48Kg
Spindle Supplied: SA-125017

What's In The Bag
GH-304-HM Toggle Clamp
SA-125017 M12x50mm Spindle With Nuts

Material
Clamp: Steel
Spindle: Steel
Handle: uPVC

Please Note, The Plunger On This Clamp Is Not Zinc Plated

Quick Links

50+ in stock

Flat
401+kg
101-150mm
201-250mm
101+mm
M12
41-60mm
41 to 80mm
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£46.37  ea. Excl VAT £55.64  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £42.66 8%
30 - 49 £40.34 13%
50 + £38.49 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Base TypeFlat
Holding Force401+kg
Height101-150mm
Total Length201-250mm
Arm Length101+mm
Spindle SizeM12
Plunger Stroke41-60mm
Stroke Length41 to 80mm
Download STP

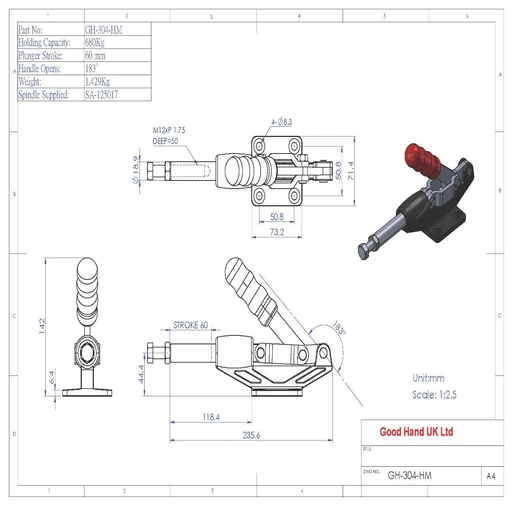

GH-304-HM Datasheet
