Item Code: GH-31200M

Push Pull Toggle Clamp. Stroke 50mm. Overall Length 190mm. Holding Force 1200daN.

Item Code: GH-31200M

Push Pull Toggle Clamp. Stroke 50mm. Overall Length 190mm. Holding Force 1200daN.

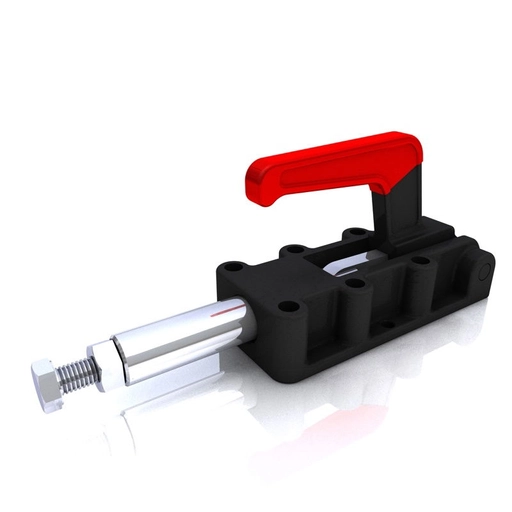

GH-31200M Push Pull Toggle Clamp with Plunger Stroke 50mm Size 1200daN

Holding Force: 1200daN
Plunger Stroke: 50mm
Handle Opens: 185°
Weight: 1.5Kg
Spindle Supplied: SA-107515

What's In The Bag
GH-31200M Toggle Clamp
SA-107515 M10x75mm Spindle With Nuts

Material
Clamp: Cast Iron
Spindle: Steel
Handle: uPVC

Quick Links

50+ in stock

Flat
401+kg
51-100mm
151-200mm
51-75mm
M10
41-60mm
41 to 80mm
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£52.02  ea. Excl VAT £62.42  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £47.86 8%
30 - 49 £45.26 13%
50 + £43.18 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Base TypeFlat
Holding Force401+kg
Height51-100mm
Total Length151-200mm
Arm Length51-75mm
Spindle SizeM10
Plunger Stroke41-60mm
Stroke Length41 to 80mm
Download STP

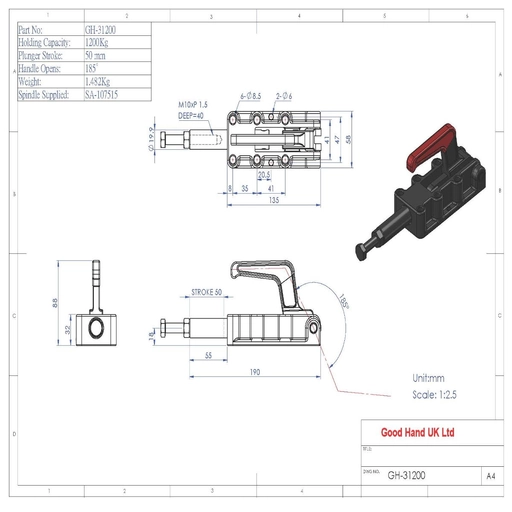

GH-31200M Datasheet
