Item Code: GH-30509M

Push Pull Toggle Clamp. Stroke 43.8mm. Overall Length 149mm. Holding Force 1136daN.

Item Code: GH-30509M

Push Pull Toggle Clamp. Stroke 43.8mm. Overall Length 149mm. Holding Force 1136daN.

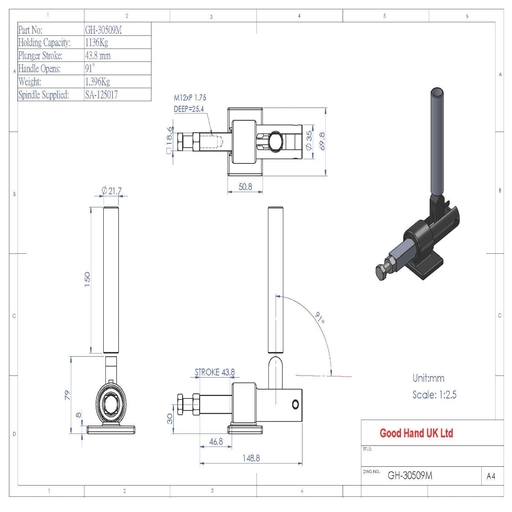

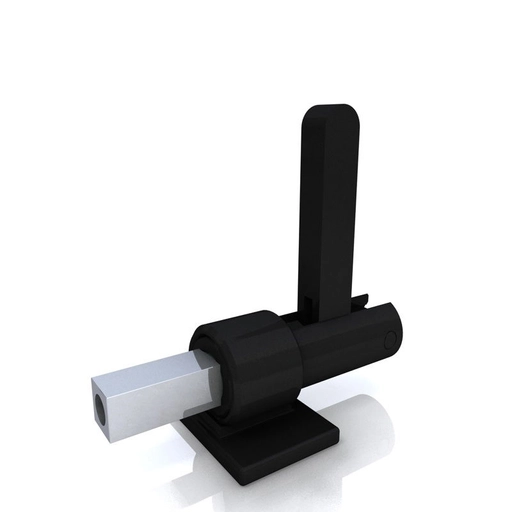

GH-30509M Push Pull Toggle Clamp with Plunger Stroke 43.8mm Size 1136daN

Holding Force: 1136daN
Plunger Stroke: 43.8mm
Weight: 1.33Kg
Spindle Supplied: SA-125017 Standard Spindle
Weldable Handle
This range of clamps are supplied as follows.
1. The handle requires welding to the the mechanism.
2. The base is supplied without fixing holes and needs to be fixed to the mechanism body.
3. The mechanism can be fixed in any position relative to the base.
Please Note, The Plunger On This Clamp Is Not Zinc Plated

Quick Links

8 in stock

401+kg
201-250mm
101-150mm
26-50mm
M12
41-60mm
41 to 80mm
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£109.16  ea. Excl VAT £130.99  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £100.43 8%
30 - 49 £94.97 13%
50 + £90.60 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Holding Force401+kg
Height201-250mm
Total Length101-150mm
Arm Length26-50mm
Spindle SizeM12
Plunger Stroke41-60mm
Stroke Length41 to 80mm
Download STP
GH-30509M Datasheet
