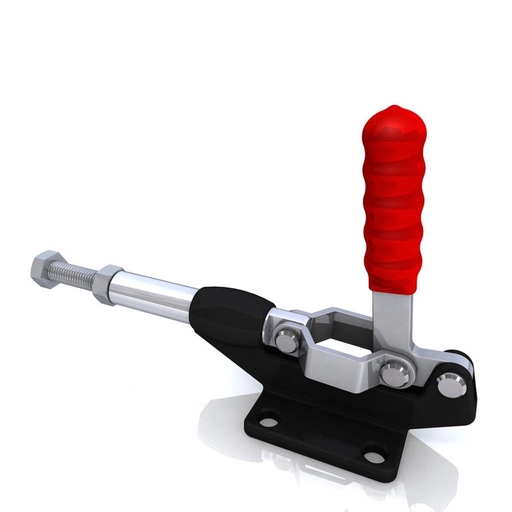

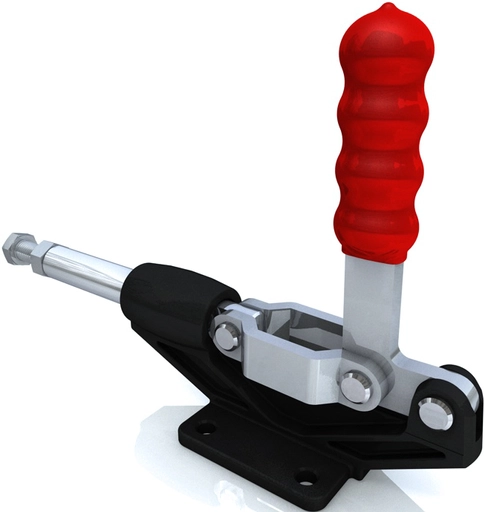

Push Pull Toggle Clamp. Stroke 42mm. Overall Length 158mm. Holding Force 386daN.

Item Code: GH-305-EM

Push Pull Toggle Clamp. Stroke 42mm. Overall Length 158mm. Holding Force 386daN.

Item Code: GH-305-EM

Push Pull Toggle Clamp. Stroke 42mm. Overall Length 158mm. Holding Force 386daN.

GH-305-EM Push Pull Toggle Clamp with Plunger Stroke 42mm Size 386daN

Holding Force: 386daN
Plunger Stroke: 42mm
Handle Opens: 90°
Weight: 0.58Kg
Spindle Supplied: SA-105015

What's In The Bag
GH-305-EM Toggle Clamp
SA-105015 M10x50mm Spindle With Nuts

Material
Clamp: Steel
Spindle: Steel
Handle: uPVC

Please Note, The Plunger On This Clamp Is Not Zinc Plated

Quick Links

Dispatch by 06/07/25

Arm Length: 76-100mm

Base Type: Flat

Height: 101-150mm

Holding Force: 301-400kg

Plunger Stroke: 41-60mm

Spindle Size: M10

Stroke Length: 41 to 80mm

Total Length: 151-200mm

M10 x 50mm Spindle With 2 Nuts Pitch 1.5 - £1.90
M10 x 50mm Spindle With 2 Nuts Pitch 1.5

Qty

M10 x 65mm Spindle 2 Nuts Pitch 1.5 - £1.90
M10 x 65mm Spindle 2 Nuts Pitch 1.5

Qty

M10 x 75mm Spindle 2 Nuts Pitch 1.5 - £1.90
M10 x 75mm Spindle 2 Nuts Pitch 1.5

Qty

M10 x 80mm Spindle With 2 Nuts Pitch 1.5 - £1.90
M10 x 80mm Spindle With 2 Nuts Pitch 1.5

Qty

M10 x 90mm Spindle 2 Nuts Pitch 1.5 - £1.90
M10 x 90mm Spindle 2 Nuts Pitch 1.5

Qty

M10 x 85mm Neoprene Tipped Spindle 2 Nuts - £2.83
M10 x 85mm Neoprene Tipped Spindle 2 Nuts

Qty

M10 x 85mm Black Plated Swivel Foot Spindle 2 Nuts - £6.18
M10 x 85mm Black Plated Swivel Foot Spindle 2 Nuts

Qty

M10 Neoprene Pad With Threaded Insert - £3.69
M10 Neoprene Pad With Threaded Insert

Qty

Neoprene Cap For M10 Spindles - £1.35
Neoprene Cap For M10 Spindles

Qty

£27.76 ea. Excl VAT £33.31 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£25.54	8%
30 - 49	£24.15	13%
50 +	£23.04	17%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

M10 x 50mm Spindle With 2 Nuts Pitch 1.5 - £1.90
M10 x 50mm Spindle With 2 Nuts Pitch 1.5

Qty

M10 x 65mm Spindle 2 Nuts Pitch 1.5 - £1.90
M10 x 65mm Spindle 2 Nuts Pitch 1.5

Qty

M10 x 75mm Spindle 2 Nuts Pitch 1.5 - £1.90
M10 x 75mm Spindle 2 Nuts Pitch 1.5

Qty

M10 x 80mm Spindle With 2 Nuts Pitch 1.5 - £1.90
M10 x 80mm Spindle With 2 Nuts Pitch 1.5

Qty

M10 x 90mm Spindle 2 Nuts Pitch 1.5 - £1.90
M10 x 90mm Spindle 2 Nuts Pitch 1.5

Qty

M10 x 85mm Neoprene Tipped Spindle 2 Nuts - £2.83
M10 x 85mm Neoprene Tipped Spindle 2 Nuts

Qty

M10 x 85mm Black Plated Swivel Foot Spindle 2 Nuts - £6.18
M10 x 85mm Black Plated Swivel Foot Spindle 2 Nuts

Qty

M10 Neoprene Pad With Threaded Insert - £3.69
M10 Neoprene Pad With Threaded Insert

Qty

Neoprene Cap For M10 Spindles - £1.35
Neoprene Cap For M10 Spindles

Qty

Quick Links

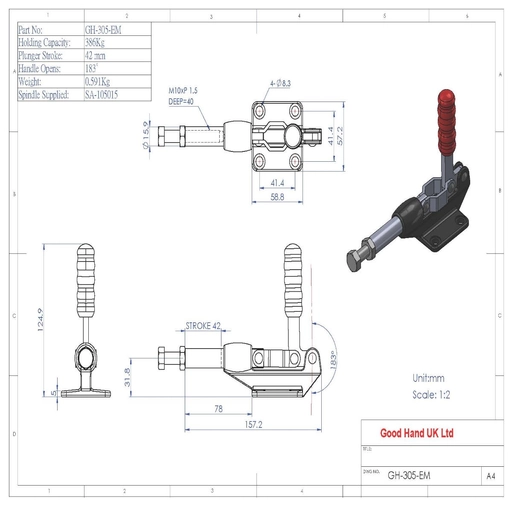

Product Dimensions

Specifications

Arm Length	76-100mm
Base Type	Flat
Height	101-150mm
Holding Force	301-400kg
Plunger Stroke	41-60mm
Spindle Size	M10
Stroke Length	41 to 80mm
Total Length	151-200mm

Downloads

Download STP

GH-305-EM Datasheet

Push Pull Toggle Clamp. Stroke 42mm. Overall Length 158mm. Holding Force 386daN.

Push Pull Toggle Clamp. Stroke 42mm. Overall Length 158mm. Holding Force 386daN.
