Item Code: GH-36010M

Push Pull Toggle Clamp. Stroke 41.3mm. Overall Length 172mm. Holding Force 364daN.

Item Code: GH-36010M

Push Pull Toggle Clamp. Stroke 41.3mm. Overall Length 172mm. Holding Force 364daN.

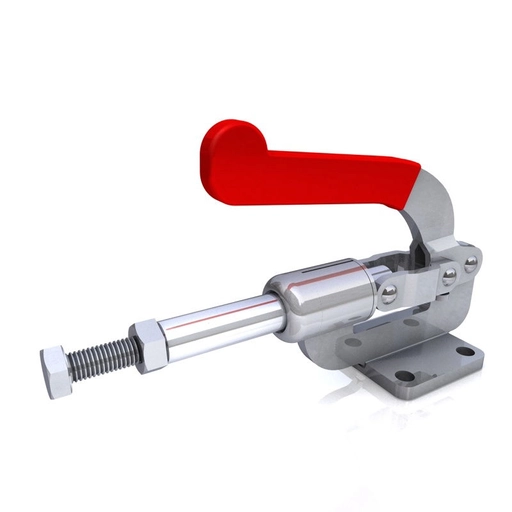

GH-36010M Push Pull Toggle Clamp with Plunger Stroke 41.3mm Size 364daN

Holding Force: 364daN
Plunger Stroke: 41.3mm
Handle Opens: 180°
Weight: 0.80Kg
Spindle Supplied: SA-105015

What's In The Bag
GH-36010M Toggle Clamp
SA-085012 M8x50mm Spindle With Nuts

Material
Clamp: Steel
Spindle: Steel
Handle: uPVC

Please Note, The Plunger On This Clamp Is Not Zinc Plated

Quick Links

39 in stock

Flat
301-400kg
101-150mm
151-200mm
76-100mm
M8
41-60mm
41 to 80mm
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£26.33  ea. Excl VAT £31.60  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £24.22 8%
30 - 49 £22.91 13%
50 + £21.85 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Base TypeFlat
Holding Force301-400kg
Height101-150mm
Total Length151-200mm
Arm Length76-100mm
Spindle SizeM8
Plunger Stroke41-60mm
Stroke Length41 to 80mm
Download STP

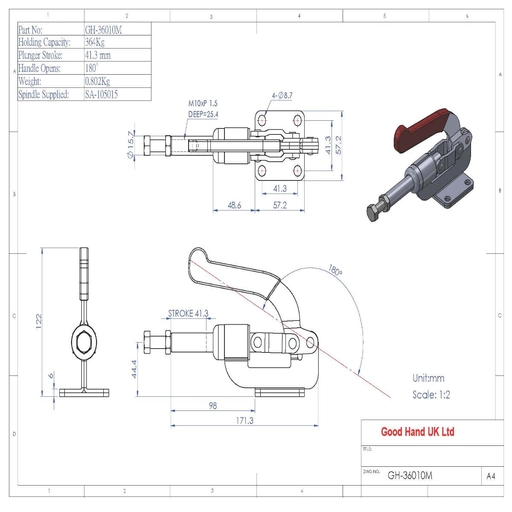

GH-36010M Datasheet
