Item Code: GH-30607M

Push Pull Toggle Clamp. Stroke 41.3mm. Overall Length 154mm. Holding Force 318daN.

Push Pull Toggle Clamp. Stroke 41.3mm. Overall Length 154mm. Holding Force 318daN.

Item Code: GH-30607M

Push Pull Toggle Clamp. Stroke 41.3mm. Overall Length 154mm. Holding Force 318daN.

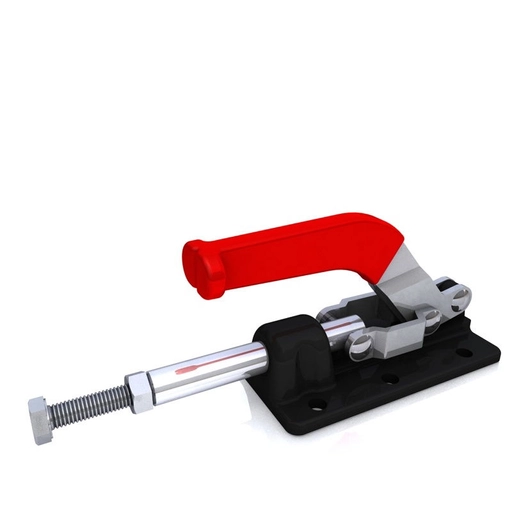

GH-30607M Push Pull Toggle Clamp with Plunger Stroke 41.3mm Size 318daN

Holding Force: 318daN
Plunger Stroke: 41.3mm
Handle Opens: 180°
Weight: 0.70Kg
Spindle Supplied: SA-085012

What's In The Bag
GH-36070M Toggle Clamp
SA-085012 M8x50mm Spindle With Nuts

Material
Clamp: Steel
Spindle: Steel
Handle: uPVC

Please Note, The Plunger On This Clamp Is Not Zinc Plated

Quick Links

50+ in stock

26-50mm
Flat
51-100mm
301-400kg
41-60mm
M8
41 to 80mm
151-200mm
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£36.83  ea. Excl VAT £44.20  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £33.88 8%
30 - 49 £32.04 13%
50 + £30.57 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm Length26-50mm
Base TypeFlat
Height51-100mm
Holding Force301-400kg
Plunger Stroke41-60mm
Spindle SizeM8
Stroke Length41 to 80mm
Total Length151-200mm
Download STP

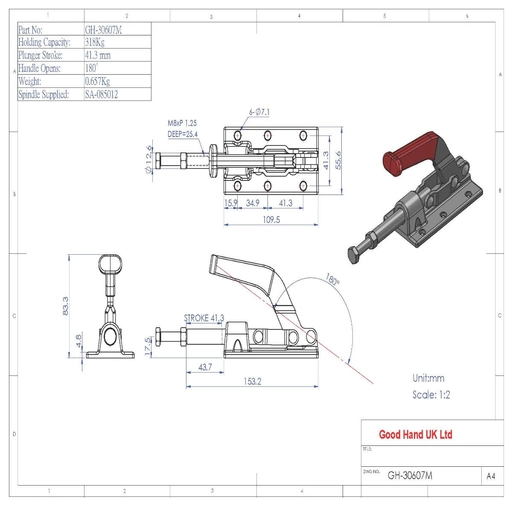

GH-30607M Datasheet
