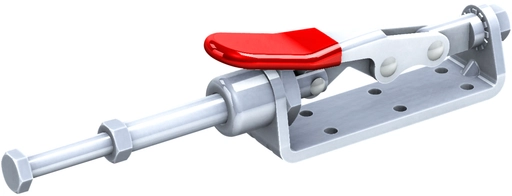

Push Pull Toggle Clamp. Stroke 40mm. Overall Length 171mm. Holding Force 200daN.

Item Code: GH-30606M

Push Pull Toggle Clamp. Stroke 40mm. Overall Length 171mm. Holding Force 200daN.

Item Code: GH-30606M

Push Pull Toggle Clamp. Stroke 40mm. Overall Length 171mm. Holding Force 200daN.

Push Pull Toggle Clamp Plunger Stroke 40mm Size 200daN

Holding Force: 200daN
Plunger Stroke: 40mm
Handle Opens: 125°
Weight: 0.37Kg
Spindle Supplied: SA-086512

What's In The Bag
GH-30606M Toggle Clamp
SA-086512 8mm Spindle With Nuts

Material
Clamp: Steel
Spindle: Steel
Handle: uPVC

Please Note, The Plunger On This Clamp Is Not Zinc Plated

Quick Links

50+ in stock

Base Type: Flat

Holding Force: 101-200kg

Height: 0-50mm

Total Length: 151-200mm

Arm Length: 51-75mm

Spindle Size: M8

Plunger Stroke: 21-40mm

Stroke Length: 0 to 40mm

£38.33 ea. Excl VAT £46.00 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£35.26	8%
30 - 49	£33.35	13%
50 +	£31.81	17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Product Dimensions

Specifications

Base Type	Flat
Holding Force	101-200kg
Height	0-50mm
Total Length	151-200mm
Arm Length	51-75mm
Spindle Size	M8
Plunger Stroke	21-40mm
Stroke Length	0 to 40mm

Downloads

Download STP

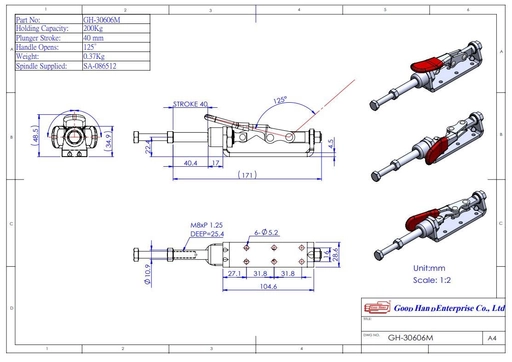

GH-30606M Datasheet

Push Pull Toggle Clamp. Stroke 40mm. Overall Length 171mm. Holding Force 200daN.

Push Pull Toggle Clamp. Stroke 40mm. Overall Length 171mm. Holding Force 200daN.
