Item Code: GH-302-FM

Push Pull Toggle Clamp. Stroke 32mm. Overall Length 140mm. Holding Force 136daN.

Item Code: GH-302-FM

Push Pull Toggle Clamp. Stroke 32mm. Overall Length 140mm. Holding Force 136daN.

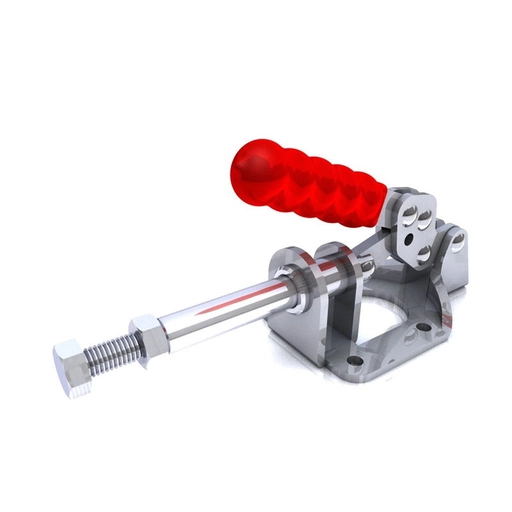

GH-302-FM Push Pull Toggle Clamp with Plunger Stroke 32mm Size 136daN

Holding Force: 136daN
Plunger Stroke: 32mm
Handle Opens: 180°
Weight: 0.30Kg
Spindle Supplied: SA-085012

What's In The Bag
GH-302-FM Toggle Clamp
SA-085012 M8x50mm Spindle With Nuts

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Please Note, The Plunger On This Clamp Is Not Zinc Plated

Quick Links

50+ in stock

Flat
101-200kg
51-100mm
101-150mm
26-50mm
M8
21-40mm
0 to 40mm
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£16.40  ea. Excl VAT £19.68  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £15.09 8%
30 - 49 £14.27 13%
50 + £13.61 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Base TypeFlat
Holding Force101-200kg
Height51-100mm
Total Length101-150mm
Arm Length26-50mm
Spindle SizeM8
Plunger Stroke21-40mm
Stroke Length0 to 40mm
GH-302-FM

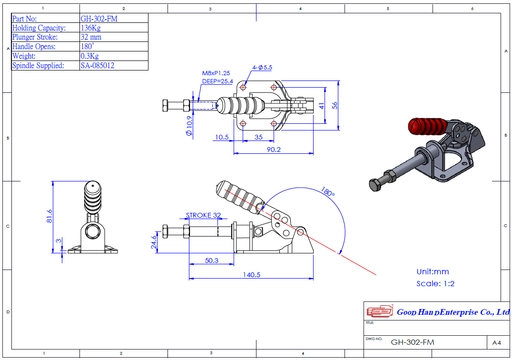

GH-302-FM Datasheet
