Item Code: GH-36003M

Push Pull Toggle Clamp. Stroke 31.8mm. Overall Length 125mm. Holding Force 272daN

Item Code: GH-36003M

Push Pull Toggle Clamp. Stroke 31.8mm. Overall Length 125mm. Holding Force 272daN

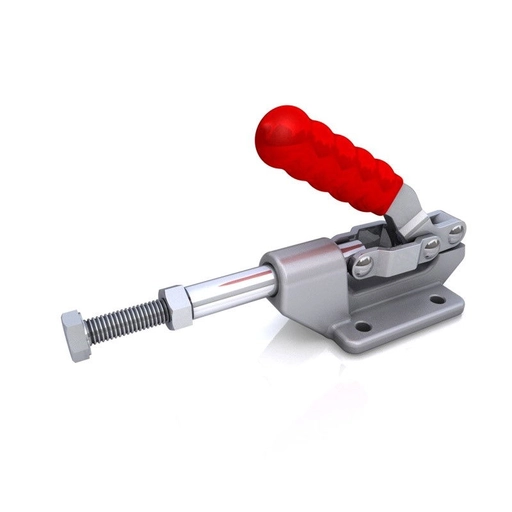

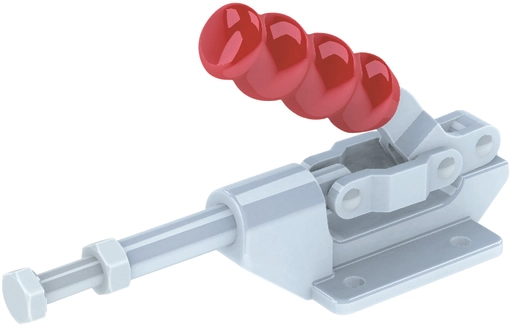

GH-36003M Push Pull Toggle Clamp with Plunger Stroke 31.8mm Size 272daN

Holding Force: 272daN
Plunger Stroke: 31.8mm
Handle Opens: 180°
Weight: 0.36Kg
Spindle Supplied: SA-085012

What's In The Bag
GH-36003M Toggle Clamp
SA-085012 M8x50mm Spindle With Nuts

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Please Note, The Plunger On This Clamp Is Not Zinc Plated

Quick Links

23 in stock

51-75mm
Flat
51-100mm
201-300Kg
21-40mm
M8
0 to 40mm
101-150mm
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£23.50  ea. Excl VAT £28.20  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £21.62 8%
30 - 49 £20.44 13%
50 + £19.50 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm Length51-75mm
Base TypeFlat
Height51-100mm
Holding Force201-300Kg
Plunger Stroke21-40mm
Spindle SizeM8
Stroke Length0 to 40mm
Total Length101-150mm
Download STP

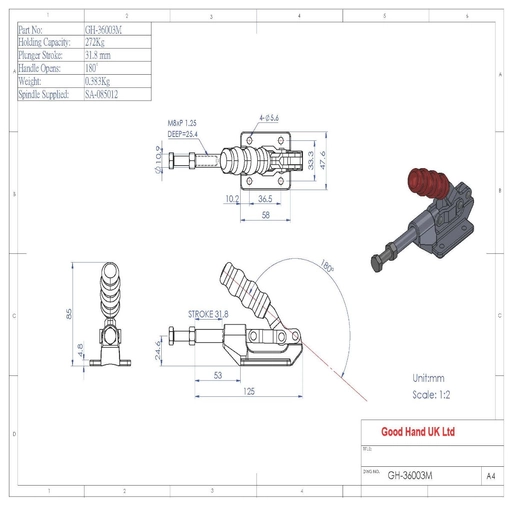

GH-36003M Datasheet
