Push Pull Toggle Clamp. Stroke 30mm. Overall Length 125mm. With Keyway. Holding Force 180daN.

Item Code: GH-36020M-K

Push Pull Toggle Clamp. Stroke 30mm. Overall Length 125mm. With Keyway. Holding Force 180daN.

Item Code: GH-36020M-K

Push Pull Toggle Clamp. Stroke 30mm. Overall Length 125mm. With Keyway. Holding Force 180daN.

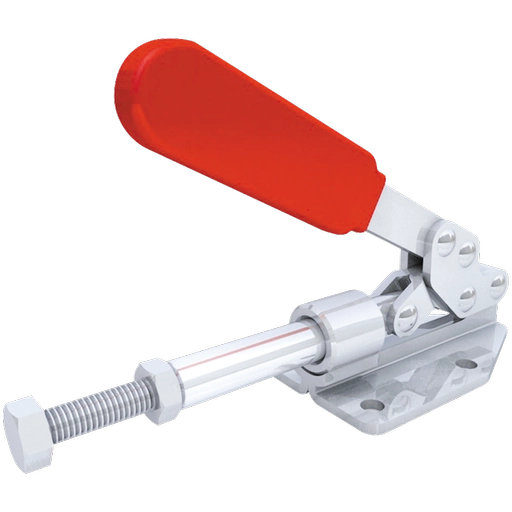

GH-36020M-K Push Pull Toggle Clamp with Plunger Stroke 30mm Size 180daN

Holding Force: 180daN
Plunger Stroke: 30mm
Handle Opens: 145°
Weight: 0.35Kg
Spindle Supplied: SA-085012
Includes Keyway
What's In The Bag
GH-36020M-K Toggle Clamp
SA-085012 M8x50mm Spindle With Nuts

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Please Note, The Plunger On This Clamp Is Not Zinc Plated

Quick Links

8 in stock

Base Type: Flat

Holding Force: 101-200kg

Height: 51-100mm

Total Length: 101-150mm

Arm Length: 26-50mm

Spindle Size: M8

Plunger Stroke: 21-40mm

Stroke Length: 0 to 40mm

£24.50 ea. Excl VAT £29.40 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£22.54	8%
30 - 49	£21.31	13%
50 +	£20.33	17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

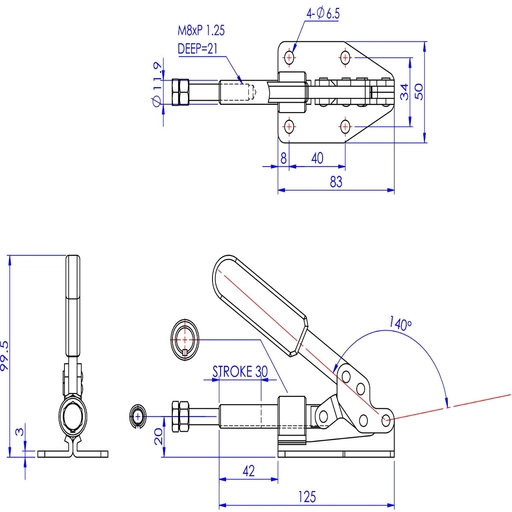

Product Dimensions

Specifications

Base Type	Flat
Holding Force	101-200kg
Height	51-100mm
Total Length	101-150mm
Arm Length	26-50mm
Spindle Size	M8
Plunger Stroke	21-40mm
Stroke Length	0 to 40mm

Downloads

GH-36020M-K

Push Pull Toggle Clamp. Stroke 30mm. Overall Length 125mm. With Keyway. Holding Force 180daN.

Push Pull Toggle Clamp. Stroke 30mm. Overall Length 125mm. With Keyway. Holding Force 180daN.
