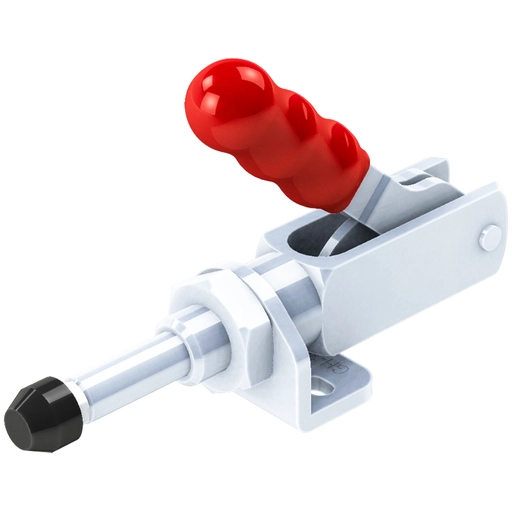

Item Code: GH-36411M

Push Pull Toggle Clamp. Stroke 20mm. Overall Length 90mm. Holding Force 100daN

Push Pull Toggle Clamp. Stroke 20mm. Overall Length 90mm. Holding Force 100daN

Item Code: GH-36411M

Push Pull Toggle Clamp. Stroke 20mm. Overall Length 90mm. Holding Force 100daN

GH-36411 M Push Pull Toggle Clamp with Plunger Stroke 20mm Size 100daN

Holding Force: 100daN
Plunger Stroke: 20.5mm
Weight: 0.125Kg
Spindle Supplied: SA-042007 + NC-04
Locknut Supplied: M12 x 1.5

What's In The Bag
GH-36411M Toggle Clamp
SA-042007 M4x20mm Spindle With Nuts
Nc-04 Neprene Cap For M4 Spindle

Material
Clamp: Steel
Spindle: Steel
Handle: uPVC

Quick Links

Dispatch by 29/05/26

0 to 40mm
Nose Mounted
Push-Pull
51-100mm
0-100daN
M4
0 to 30mm
51-100mm

£20.12  ea. Excl VAT £24.14  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Next Working Day Delivery on All In-Stock Products



modal placeholder

Quick Links

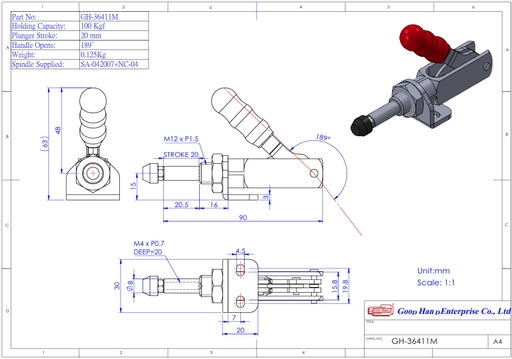

Download STP
