Item Code: GH-36410M

Push Pull Toggle Clamp. Stroke 16mm. Overall Length 67.3mm. Holding Force 80daN.

Push Pull Toggle Clamp. Stroke 16mm. Overall Length 67.3mm. Holding Force 80daN.

Item Code: GH-36410M

Push Pull Toggle Clamp. Stroke 16mm. Overall Length 67.3mm. Holding Force 80daN.

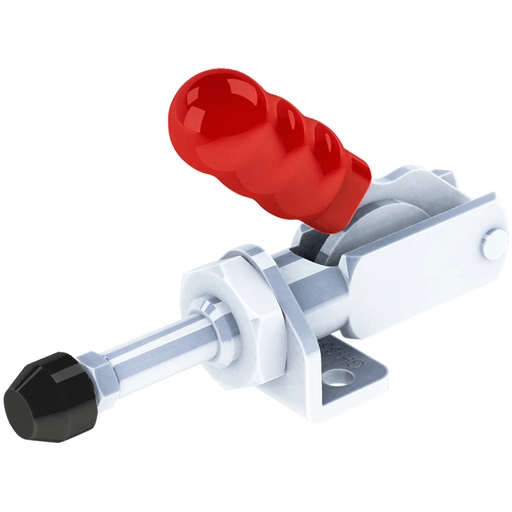

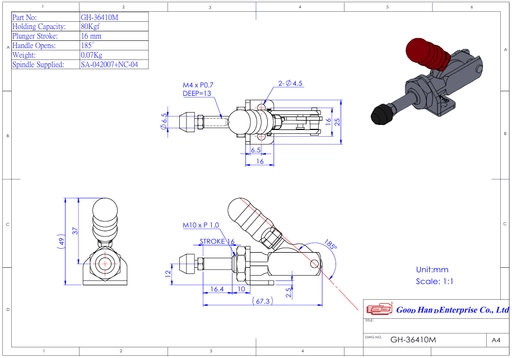

GH-36410M Push Pull Toggle Clamp with Plunger Stroke 16.4mm Size 80daN

Holding Force: 80daN
Plunger Stroke: 16.4mm
Weight: 0.07Kg
Spindle Supplied: SA-042007 + NC-04
Locknut Supplied: M10 x 1.0

What's In The Bag
GH-36410M Toggle Clamp
SA-042007 M4x20mm Spindle With Nuts
Nc-04 Neprene Cap For M4 Spindle

Material
Clamp: Steel
Spindle: Steel
Handle: uPVC

Quick Links

Dispatch by 29/05/26

0 to 40mm
Nose Mounted
Push-Pull
0-50mm
0-100daN
M4
0 to 30mm
51-100mm

£14.89  ea. Excl VAT £17.87  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.
