Item Code: GH-36006

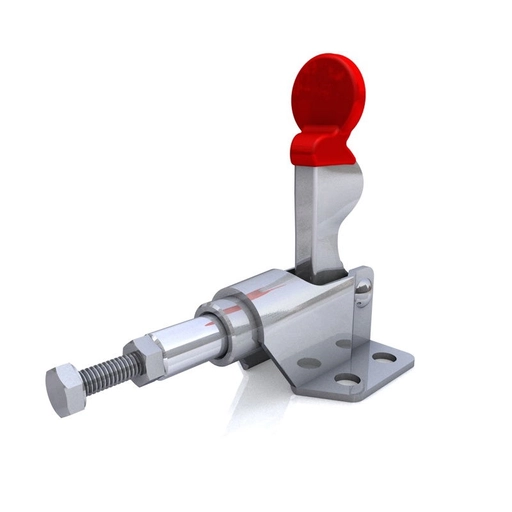

Push Pull Toggle Clamp. Stroke 13.3mm. Overall Length 59mm. Holding Force 50daN.

Item Code: GH-36006

Push Pull Toggle Clamp. Stroke 13.3mm. Overall Length 59mm. Holding Force 50daN.

GH-36006 Push Pull Clamp with Plunger Stroke 13.3mm Size 50daN

Holding Force: 50daN
Plunger Stroke: 13.3mm
Handle Opens: 93°
Weight: 0.07Kg
Spindle Supplied: SA-041507

What's In The Bag
GH-36006 Toggle Clamp
SA-041507 M4x15mm Spindle With Nuts

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Quick Links

50+ in stock

26-50mm
Flat
51-100mm
0-100Kg
0-20mm
M4
0 to 40mm
51-100mm
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£13.45  ea. Excl VAT £16.14  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £12.37 8%
30 - 49 £11.70 13%
50 + £11.16 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm Length26-50mm
Base TypeFlat
Height51-100mm
Holding Force0-100Kg
Plunger Stroke0-20mm
Spindle SizeM4
Stroke Length0 to 40mm
Total Length51-100mm
Download STP

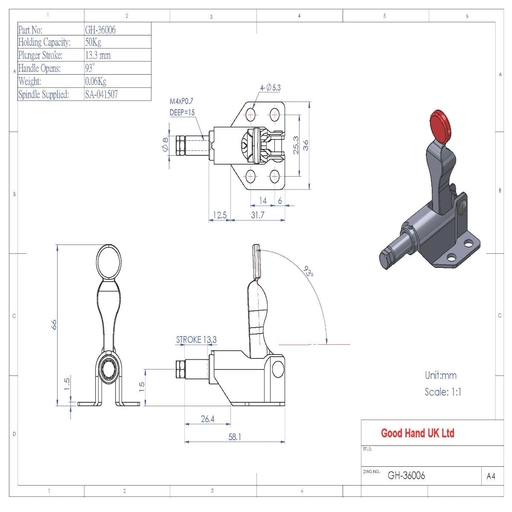

GH-36006 Datasheet
