Item Code: GH-36070M

Push Pull Toggle Clamp. Stroke 10mm. Overall Length 129mm. Holding Force 50daN.

Item Code: GH-36070M

Push Pull Toggle Clamp. Stroke 10mm. Overall Length 129mm. Holding Force 50daN.

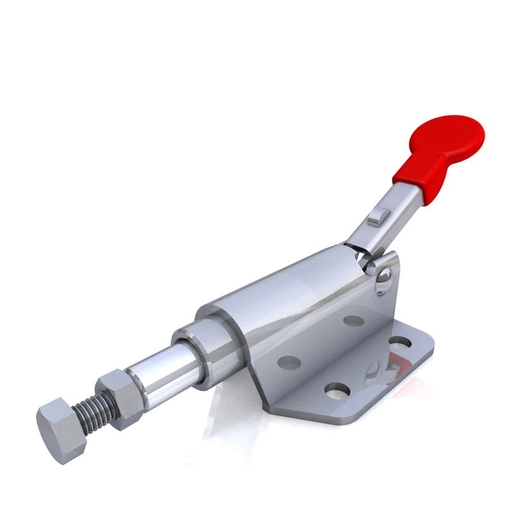

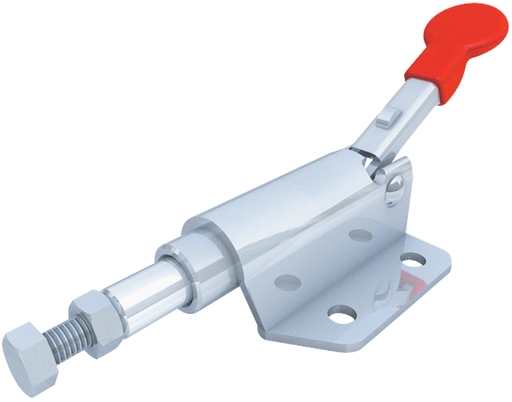

GH-36070M Push Pull Toggle Clamp with Plunger Stroke 10mm Size 50daN

Holding Force: 50daN
Plunger Stroke: 10mm
Handle Opens: 66°
Weight: 0.1Kg
Spindle Supplied: SA-051508

What's In The Bag
GH-36070M Toggle Clamp
SA-051508 M5x15mm Spindle With Nuts

Material
Clamp: Steel
Spindle: Steel
Handle: uPVC

Quick Links

50+ in stock

26-50mm
0-50mm
0-100Kg
0-20mm
M5
0 to 40mm
101-150mm
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£13.73  ea. Excl VAT £16.48  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £12.63 8%
30 - 49 £11.95 13%
50 + £11.40 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm Length26-50mm
Height0-50mm
Holding Force0-100Kg
Plunger Stroke0-20mm
Spindle SizeM5
Stroke Length0 to 40mm
Total Length101-150mm
Download STP

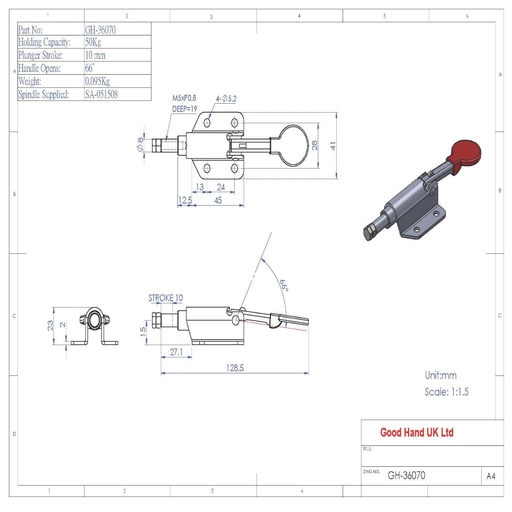

GH-36070M Datasheet
