Push Pull Toggle Clamp. Stroke 101.6mm. Overall Length 322mm. Holding Force 3400daN.

Item Code: GH-36340M

Push Pull Toggle Clamp. Stroke 101.6mm. Overall Length 322mm. Holding Force 3400daN.

Item Code: GH-36340M

Push Pull Toggle Clamp. Stroke 101.6mm. Overall Length 322mm. Holding Force 3400daN.

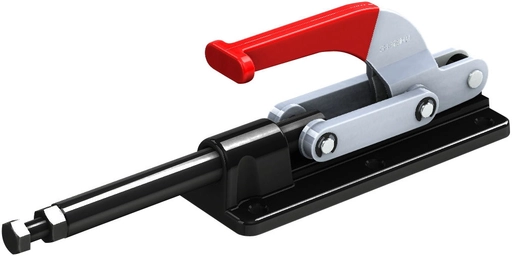

GH-36340M Push Pull Toggle Clamp with Plunger Stroke 101.6mm Size 3400daN

Holding Force: 3400daN
Plunger Stroke: 101.6mm
Handle Opens: 191°
Weight: 3.14Kg
Spindle Supplied: SA-127517

What's In The Bag
GH-36340M Toggle Clamp
SA-1257517 M12x57mm Spindle With Nuts

Material
Clamp: Steel
Spindle: Steel
Handle: uPVC

Quick Links

Dispatch by 16/06/25

Base Type: Flat

Holding Force: 401+kg

Height: 101-150mm

Total Length: 251+mm

Arm Length: 101+mm

Spindle Size: M12

Plunger Stroke: 81+mm

Stroke Length: 81+mm

£146.56 ea. Excl VAT £175.87 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£134.84	8%
30 - 49	£127.51	13%
50 +	£121.64	17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

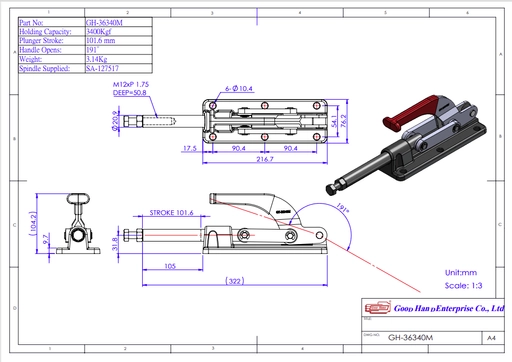

Product Dimensions

Specifications

Base Type	Flat
Holding Force	401+kg
Height	101-150mm
Total Length	251+mm
Arm Length	101+mm
Spindle Size	M12
Plunger Stroke	81+mm
Stroke Length	81+mm

Downloads

Download STP

GH-36340M Datasheet

Push Pull Toggle Clamp. Stroke 101.6mm. Overall Length 322mm. Holding Force 3400daN.

Push Pull Toggle Clamp. Stroke 101.6mm. Overall Length 322mm. Holding Force 3400daN.
