Item Code: GH-35000M

Push Pull Toggle Clamp. Stroke 100mm. Overall Length 392mm. Holding Force 5000daN.

Item Code: GH-35000M

Push Pull Toggle Clamp. Stroke 100mm. Overall Length 392mm. Holding Force 5000daN.

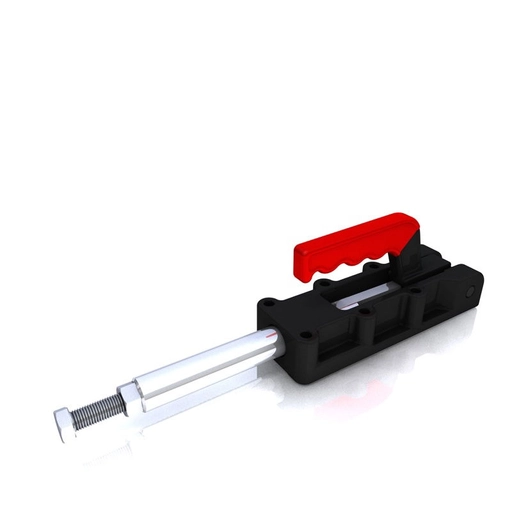

GH-35000M Push Pull Toggle Clamp with Plunger Stroke 100mm Size 5000daN

Holding Force: 5000daN
Plunger Stroke: 100mm
Handle Opens: 185°
Weight: 6.5Kg
Spindle Supplied: SA-167520

What's In The Bag
GH-35000M Toggle Clamp
SA-167520 M16x75mm Spindle With Nuts

Material
Clamp: Cast Iron
Spindle: Steel
Handle: uPVC

Quick Links

10 in stock

Flat
401+kg
101-150mm
251+mm
101+mm
M16
81+mm
81+mm
Qty
Qty
Qty

£151.12  ea. Excl VAT £181.34  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £139.03 8%
30 - 49 £131.47 13%
50 + £125.43 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty

Quick Links



Base TypeFlat
Holding Force401+kg
Height101-150mm
Total Length251+mm
Arm Length101+mm
Spindle SizeM16
Plunger Stroke81+mm
Stroke Length81+mm
Download STP

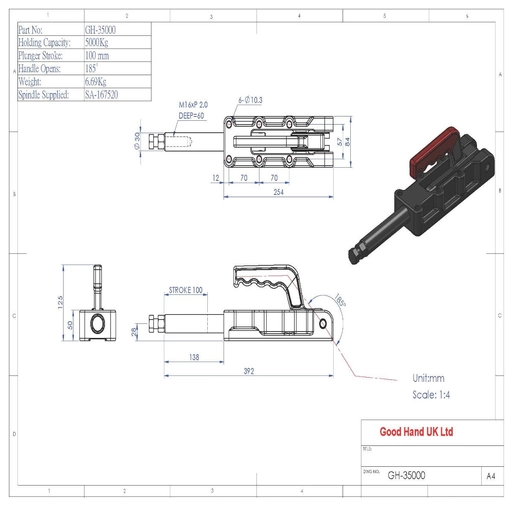

GH-35000M Datasheet
