Pull Handles Recessed Form B

List view Grid view
Pull Handles Recessed Form B

Material:
Tray handle in aluminium profile, end caps polyamide;
form B: mounting by 2 countersunk screws, steel

Version:

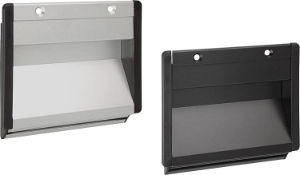

Handle glass-bead blasted, satin finish and anodised black or natural colour.
Rubber profile black.
Fastening screws electro zinc-plated.

Note:
The Tray Handles form B can be mounted from outside with 2 countersunk screws.

Two cross-slots offset by 90° for M4 screws allow earth/ground connection and can serve as a mounting aid for additional add-on parts.

Assembly:
After fitting the lower rubber profile, press the two side caps onto the handle. Next press the handle over the lower edge of the mounting cutout at a 45° angle and then push it up against the housing panel.
Now, depending on which type is being used, push the 2nd rubber profile into the upper groove or fix in place with 2 countersunk screws.

Pull Handles Recessed Form B

Quick Filters

Choose Vertical Base Type

Flat

Side Mount

Straight

Choose Horizontal Base Type

Flat

Side Mount

Straight

Choose Stroke Length

0-40mm

41-80mm

81mm and Over

Choose Type

Hook

Latch

Vertical Latch

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Air Knife Only

Air Knife With Filter and Shim Set

Air Knife With Plumbing Kit Installed, Filter and Shim Set

Style

Air Knife Only

Air Knife With Filter and Shim Set

Style

Air Knife Only

Air Knife With Filter and Shim Set

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Air Amplifier Only

Air Amplifier With Filter and Shim Set

Style

Air Amplifier Only

Air Amplifier With Filter

Item

Filter / Regulator

Air Amplifier Shim Set

Item

Filter / Regulator

Vortex Tube Generator

Vortex Tube Cold Silencer

Vortex Tube Hot Silencer

Style

Vortex Tube Only

Vortex Tube With Generator Kit, Muffler, Tubing And Filter

Clamp Type

Horizontal

Vertical

Latch

Vertical Latch

Clamp Type

Vertical

Press

Push-Pull

Clamp Type

Horizontal

Vertical

Hook

Latch

Vertical Latch

Push-Pull

Flip-Flop

Style

Safety Lock

Stainless Steel

Line drawing placeholder

Move drawing here

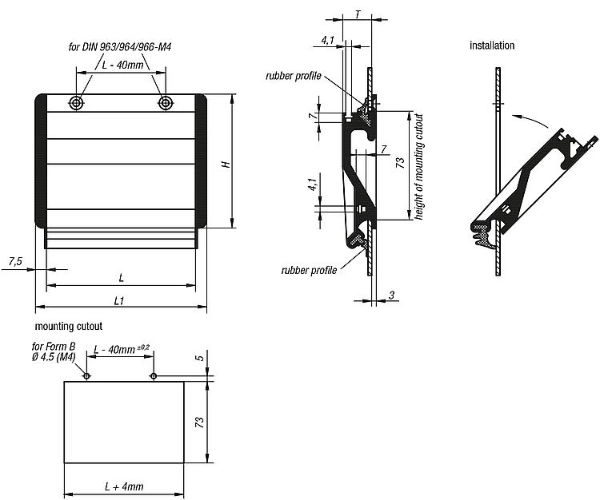

Form H L L1 Load capacity N Mounting cutout T Price (Exc. Tax) Stock Qty basket

Filters

K0238.10021
View product
B 90 100 115 500 104 x 73 19.5
£19.38
0
K0238.10023
View product
B 90 100 115 500 104 x 73 19.5
£18.17
0
K0238.11821
View product
B 90 118 133 500 122 x 73 19.5
£20.60
0
K0238.11823
View product
B 90 118 133 500 122 x 73 19.5
£19.19
0
K0238.16721
View product
B 90 167 182 500 171 x 73 19.5
£25.06
0
K0238.16723
View product
B 90 167 182 500 171 x 73 19.5
£22.86
0

Showing products per page


£
£

Dispatch by 29/10/25

Item Code: K0238.10021

Recessed Handle. Screw On. Aluminium.100mm Wide. 90mm High. Black.

£19.38  Excl VAT £23.26  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K0238.10023

Recessed Handle. Screw On. Aluminium.100mm Wide. 90mm High. Natural.

£18.17  Excl VAT £21.80  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K0238.11821

Recessed Handle. Screw On. Aluminium.118mm Wide. 90mm High. Black.

£20.60  Excl VAT £24.72  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K0238.11823

Recessed Handle. Screw On. Aluminium.118mm Wide. 90mm High. Natural.

£19.19  Excl VAT £23.03  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K0238.16721

Recessed Handle. Screw On. Aluminium.167mm Wide. 90mm High. Black.

£25.06  Excl VAT £30.07  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K0238.16723

Recessed Handle. Screw On. Aluminium.167mm Wide. 90mm High. Natural.

£22.86  Excl VAT £27.43  Inc VAT

Price breaks available

Text

Qty

Showing products per page

Recessed Handle. Screw On. Aluminium.100mm Wide. 90mm High. Black.

Dispatch by 29/10/25

Item Code: K0238.10021

£19.38  Excl VAT £23.26  Inc VAT

Price breaks available

Text

Qty

Recessed Handle. Screw On. Aluminium.100mm Wide. 90mm High. Natural.

Dispatch by 29/10/25

Item Code: K0238.10023

£18.17  Excl VAT £21.80  Inc VAT

Price breaks available

Text

Qty

Recessed Handle. Screw On. Aluminium.118mm Wide. 90mm High. Black.

Dispatch by 29/10/25

Item Code: K0238.11821

£20.60  Excl VAT £24.72  Inc VAT

Price breaks available

Text

Qty

Recessed Handle. Screw On. Aluminium.118mm Wide. 90mm High. Natural.

Dispatch by 29/10/25

Item Code: K0238.11823

£19.19  Excl VAT £23.03  Inc VAT

Price breaks available

Text

Qty

Recessed Handle. Screw On. Aluminium.167mm Wide. 90mm High. Black.

Dispatch by 29/10/25

Item Code: K0238.16721

£25.06  Excl VAT £30.07  Inc VAT

Price breaks available

Text

Qty

Recessed Handle. Screw On. Aluminium.167mm Wide. 90mm High. Natural.

Dispatch by 29/10/25

Item Code: K0238.16723

£22.86  Excl VAT £27.43  Inc VAT

Price breaks available

Text

Qty
