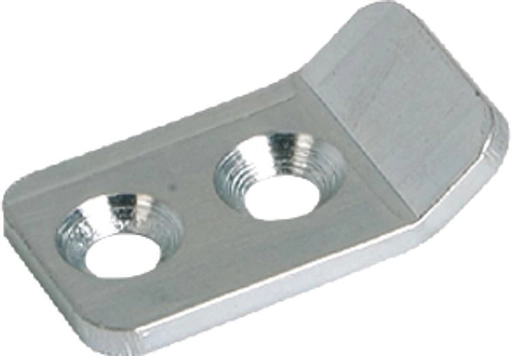

Catch Plate In Steel Form B

Item Code: GH-46.9242271

Catch Plate In Steel Form B

Item Code: GH-46.9242271

Catch Plate In Steel Form B

Kipp Part Number K0046.9242271

Material:
Steel or stainless steel 1.4301.

Version:
Galvanized and blue chromed.
Stainless steel bright.

Note:
Adjustable latches are safe locking systems for industrial applications. By exceeding the dead centre they resist vibration.

After the hook is engaged with the catch plate, by pushing the lever down the parts to be locked can be drawn together by up to 5 mm.
To compensate for tolerances or to create enough tension, the hook length can be adjusted using the M5 threaded spindle.

The latches can be screwed down or riveted.

Any catch plate can be combined with any latch.

Order required catch plate version separately.

The retaining force F1 applies to the latch, not the catch plate.

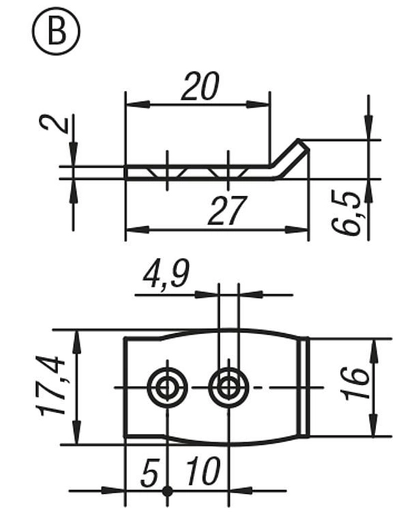

Drawing reference:
Form A standard
Form B with lock
Form C with padlock hole

1) Hole arrangements for assembly with catch plate

Quick Links

41 in stock

Material: Steel

Version: Catch Plate Only

£0.73 ea. Excl VAT £0.88 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
10 - 24	£0.67	8%
25 - 49	£0.64	13%
50 +	£0.58	20%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Product Dimensions

Main material	steel
Item	Catch Plate
Version 1	for latch
Version 2	adjustable
Surface finish body	galvanised and passivated
Form	B
Part Number	GH-46.9242271
for Art. No.	K0046 / K0047

Specifications

Material	Steel
Version	Catch Plate Only

Catch Plate In Steel Form B

Catch Plate In Steel Form B
