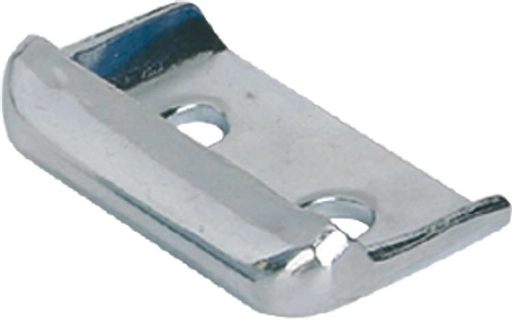

Catch Plate In Stainless Steel

Item Code: GH-48.9163282

Catch Plate In Stainless Steel

Item Code: GH-48.9163282

Catch Plate In Stainless Steel

Kipp Part Number K0048.9163282

Material:
Steel or stainless steel 1.4301.

Version:
Galvanized and blue chromed.
Stainless steel bright.

Note:
Adjustable latches are safe locking systems for industrial applications. By exceeding the dead centre they resist vibration.

These latches are very robust and have a low overall height.

After the hook is engaged with the catch plate, by pushing the lever down the parts to be locked can be drawn together by up to 6 mm.
To compensate for tolerances or to create enough tension, the hook length can be adjusted using the M6 threaded spindle.

The latches can be screwed down or riveted.

Order required catch plate separately.

The retaining force F1 applies to the latch, not the catch plate.

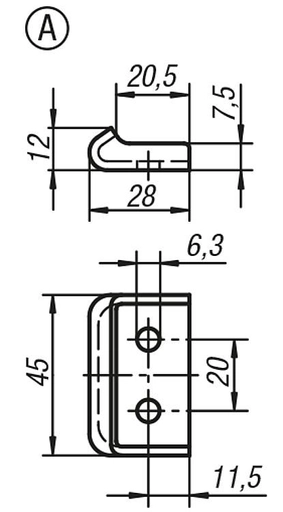

Drawing reference:
Form A standard
Form B with lock
Form C with padlock hole

1) Hole arrangement for assembly with catch plate

Quick Links

5 in stock

Material: Stainless Steel

Version: Latch Only

£6.24 ea. Excl VAT £7.49 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
10 - 24	£5.74	8%
25 - 49	£5.43	13%
50 +	£4.99	20%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Product Dimensions

Main material	stainless steel
Item	Catch Plate
Version 1	for latch
Version 2	adjustable
Surface finish body	bright
Steel code	1.4301
Form	A
Part Number	GH-48.9163282
for Art. No.	K0048 / K0049

Specifications

Material	Stainless Steel
Version	Latch Only

Catch Plate In Stainless Steel

Catch Plate In Stainless Steel
