Item Code: GH-47.2420601

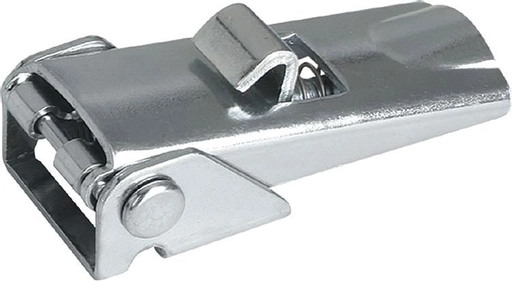

Adjustable Screw Latch In Steel With Safety Clip Length 59mm

Item Code: GH-47.2420601

Adjustable Screw Latch In Steel With Safety Clip Length 59mm

Order catch plates separately. Part No. GH-46.9142141, GH-469242271, or GH-46.9342381

Kipp Part Number K0047.2420601

Material:
Steel or stainless steel 1.4301.

Version:
Galvanized and blue chromed.
Stainless steel bright.

Note:
Adjustable latches are safe locking systems for industrial applications. By exceeding the dead centre they resist vibration.

After the hook is engaged with the catch plate, by pushing the lever down the parts to be locked can be drawn together by up to 5 mm.
To compensate for tolerances or to create enough tension, the hook length can be adjusted using the M5 threaded spindle.

The latches can be screwed down or riveted.

Any catch plate can be combined with any latch.

Order required catch plate version separately.

The retaining force F1 applies to the latch, not the catch plate.

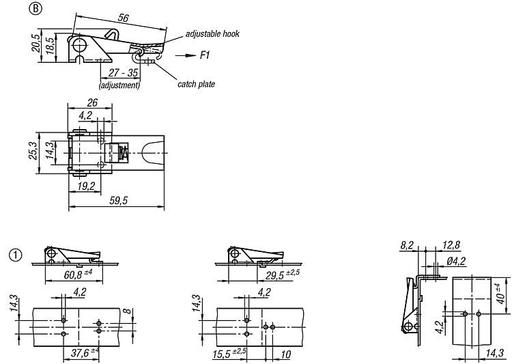

Drawing reference:
Form A standard
Form B with lock
Form C with padlock hole

1) Hole arrangements for assembly with catch plate

Quick Links

Dispatch by 13/07/25

59mm
Steel
Latch Only
Qty
Qty
Qty

£10.10  ea. Excl VAT £12.12  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
10 - 24 £9.29 8%
25 - 49 £8.79 13%
50 + £8.08 20%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty

Quick Links



Main materialsteel
ItemLatch
Version 1adjustable
Version 2fastening holes covered
Main colourgalvanised
FormB
Product typewith lock
Part NumberGH-47.2420601
Retaining force F1 N1000
Length59mm
MaterialSteel
VersionLatch Only
DWG Download
GH-47.2420601 Datasheet
IGS Download
STP Download
