Item Code: GH-49.2631161

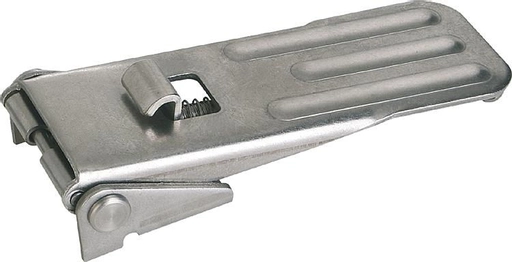

Adjustable Screw Latch In Steel Safety Clip Length 115mm

Item Code: GH-49.2631161

Adjustable Screw Latch In Steel Safety Clip Length 115mm

Order catch plates separately. Part No. GH-46.9142141, GH-469242271, or GH-46.9342381

Kipp Part Number K0049.2631161

Material:
Steel or stainless steel 1.4301.

Version:
Galvanized and blue chromed.
Stainless steel bright.

Note:
Adjustable latches are safe locking systems for industrial applications. By exceeding the dead centre they resist vibration.

These latches are very robust and have a low overall height.

After the hook is engaged with the catch plate, by pushing the lever down the parts to be locked can be drawn together by up to 6 mm.
To compensate for tolerances or to create enough tension, the hook length can be adjusted using the M6 threaded spindle.

The latches can be screwed down or riveted.

Order required catch plate separately.

The retaining force F1 applies to the latch, not the catch plate.

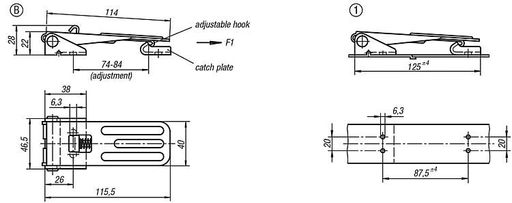

Drawing reference:
Form A standard
Form B with lock
Form C with padlock hole

1) Hole arrangement for assembly with catch plate

Quick Links

19 in stock

115mm
Steel
Latch Only
Qty
Qty
Qty

£25.30  ea. Excl VAT £30.36  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
10 - 24 £23.28 8%
25 - 49 £22.01 13%
50 + £20.24 20%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty

Quick Links



Main materialsteel
ItemLatch
Version 1with swing bail, adjustable
Version 2fastening holes covered
Surface finish bodygalvanised and passivated
FormB
Product typewith lock
Part NumberGH-49.2631161
Retaining force F1 N4000
Length115mm
MaterialSteel
VersionLatch Only
DWG Download
GH-49.2631161 Datasheet
IGS Download
STP Download
