No Drip Internal Mix Wide Angle Round Pattern, 8.5 GPH/32.2 LPH Max

Item Code: AW2020SS

No Drip Internal Mix Wide Angle Round Pattern, 8.5 GPH/32.2 LPH Max

Item Code: AW2020SS

No Drip Internal Mix Wide Angle Round Pattern, 8.5 GPH/32.2 LPH Max

EXAIR's 1/4 FNPT and 1/2 FNPT no drip internal mix wide angle round pattern atomizing nozzles positively stop liquid flow when the compressed air is shut off helps conserve expensive liquids and protects the product finish from drips. They are great for covering a broad area and can be adjusted for a light mist or a heavy soaking spray. They are popular for dust mitigation, humidification, and cooling of products, people or livestock in a broad area. These nozzles are also perfect for applying a coating to parts packed in large containers, for example, misting a container of stamped steel parts with oil to prevent oxidation during shipment. For pressure fed applications not requiring independent air and liquid control.

Connection 1/4" NPT

Performance Figures below

Quick Links

Dispatch by 07/07/25

Max Liquid Consumption: 0-50 LPH

Spray Pattern: Wide Round

£478.18 ea. Excl VAT £573.82 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
10 +	£430.36	10%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

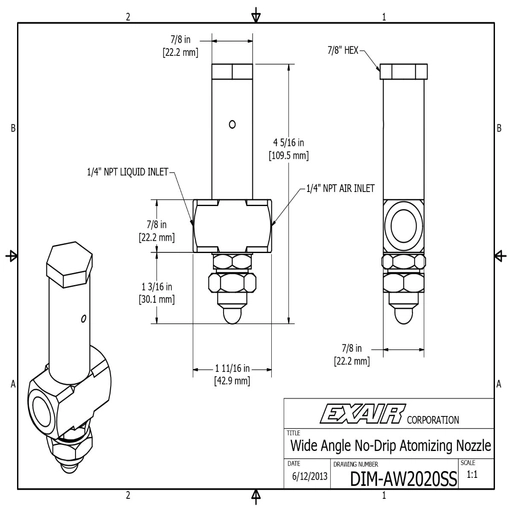

Product Dimensions

Specifications

Max Liquid Consumption	0-50 LPH
Spray Pattern	Wide Round

No Drip Internal Mix Wide Angle Round Pattern, 8.5 GPH/32.2 LPH Max

No Drip Internal Mix Wide Angle Round Pattern, 8.5 GPH/32.2 LPH Max
