No Drip Internal Mix Flat Fan Pattern, 18.3 GPH/69.3 LPH Max

Item Code: AF2040SS

No Drip Internal Mix Flat Fan Pattern, 18.3 GPH/69.3 LPH Max

Item Code: AF2040SS

No Drip Internal Mix Flat Fan Pattern, 18.3 GPH/69.3 LPH Max

EXAIR's 1/4 FNPT no drip internal mix flat fan pattern atomizing nozzles feature their ability to positively stop liquid flow when the compressed air is shut off helps conserve expensive liquids and protects the product finish from drips. They are designed with efficiency in mind. Especially good for vertical or horizontal assembly lines, their broad thin pattern makes efficient use of your expensive liquids. Their output can be adjusted for a very light film or a heavy coat of whatever liquid you are working with. Whether it's applying paint to hanging sheet metal, or using a water mist to cool a laminate web, flat fan atomizing nozzles cover a wide flat area, ideal for products moving on a conveyor. Engineered of Type 303 stainless steel for corrosion resistance. For pressure fed applications not requiring independent air and liquid control.

Connection 1/4" NPT

Performance Figures below

Quick Links

Dispatch by 07/07/25

Max Liquid Consumption: 50-100 LPH

Spray Pattern: Flat Fan

£478.18 ea. Excl VAT £573.82 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
10 +	£430.36	10%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

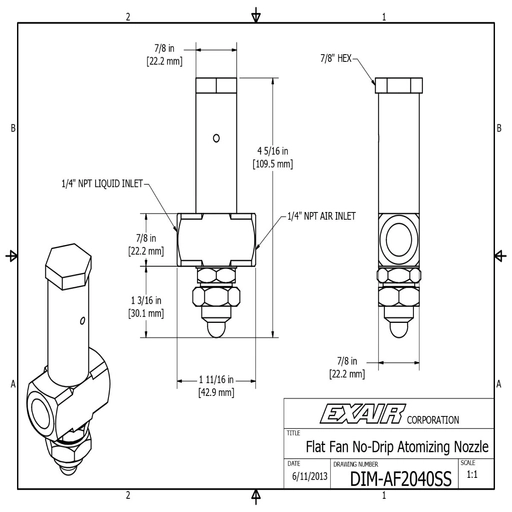

Product Dimensions

Specifications

Max Liquid Consumption	50-100 LPH
Spray Pattern	Flat Fan

No Drip Internal Mix Flat Fan Pattern, 18.3 GPH/69.3 LPH Max

No Drip Internal Mix Flat Fan Pattern, 18.3 GPH/69.3 LPH Max
