Item Code: GH-40324-R

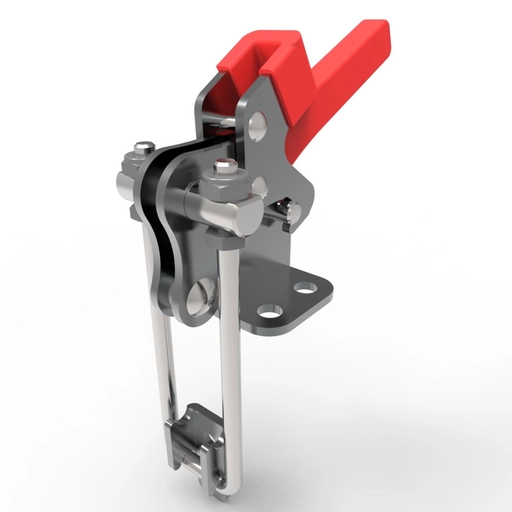

Vertical Latch Toggle Clamp With Safety Lock. Overall Height 78.5mm. Overall Length 81mm. Holding Force 225daN. Latch Plate Included

Item Code: GH-40324-R

Vertical Latch Toggle Clamp With Safety Lock. Overall Height 78.5mm. Overall Length 81mm. Holding Force 225daN. Latch Plate Included

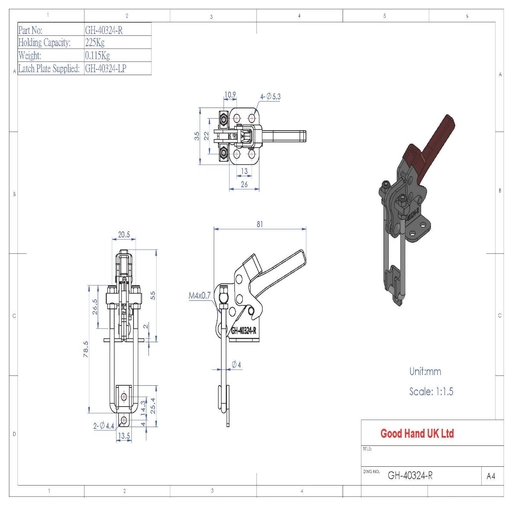

GH-40324-R Vertical Latch Toggle Clamp with Safety Lock Size 225daN

Holding Force: 225daN
Weight: 012Kg
U Bolt Diameter: 4mm
Bracket Supplied: GH-40324-LP
Clamping Stroke: 38mm
Adjustment Distance: 12.2mm

What's In The Bag
GH-40324-R Toggle Clamp
GH-40324-LP Latch Plate

Material
Clamp: Steel
Handle: uPVC

Quick Links

50+ in stock

Flat
51-100mm
201-300Kg
Yes
51-100mm
Vertical Latch

£18.70  ea. Excl VAT £22.44  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £17.20 8%
30 - 49 £16.27 13%
50 + £15.52 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Base Type Flat
Height 51-100mm
Holding Force 201-300Kg
Safety Lock Yes
Total Length 51-100mm
Type Vertical Latch
Downlaod STP
GH-40324-R Datasheet
