Item Code: GH-40820-SS

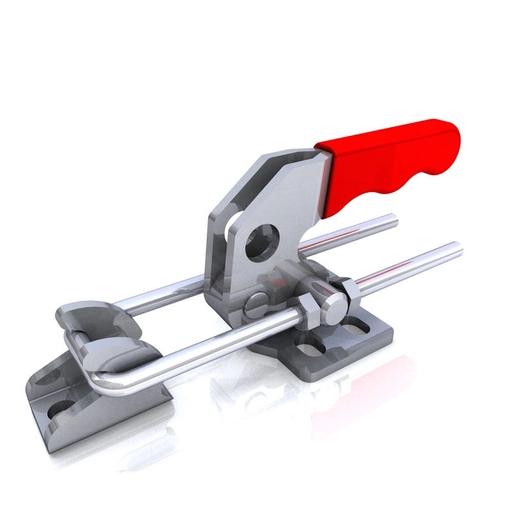

Stainless Steel Vertical or Horizontal Latch Toggle Clamp. Overall Length 134.3mm. Overall Height 42mm. Holding Force 200daN. Latch Plate Included

Stainless Steel Vertical or Horizontal Latch Toggle Clamp. Overall Length 134.3mm. Overall Height 42mm. Holding Force 200daN. Latch Plate Included

Item Code: GH-40820-SS

Stainless Steel Vertical or Horizontal Latch Toggle Clamp. Overall Length 134.3mm. Overall Height 42mm. Holding Force 200daN. Latch Plate Included

GH-40820-SS Stainless Steel Latch Clamp Size 200daN

Holding Force: 200daN
Weight: 0.12Kg
U Bolt Diameter: 4mm
Latch Plate Supplied: GH-40820-LPSS
Clamping Stroke: 16mm
Adjustment Distance: 40.6mm

What's In The Bag
GH-40820-SS Toggle Clamp
GH-40820-LPSS Latch Plate

Material
Clamp: Stainless Steel
Latch Plate: Stainless Steel
Handle: uPVC

Quick Links

50+ in stock

Flat
0-50mm
101-200kg
Yes
51-100mm
Latch

£30.06  ea. Excl VAT £36.07  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £27.66 8%
30 - 49 £26.15 13%
50 + £24.95 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Base Type Flat
Height 0-50mm
Holding Force 101-200kg
Stainless Steel Yes
Total Length 51-100mm
Type Latch
Download STP

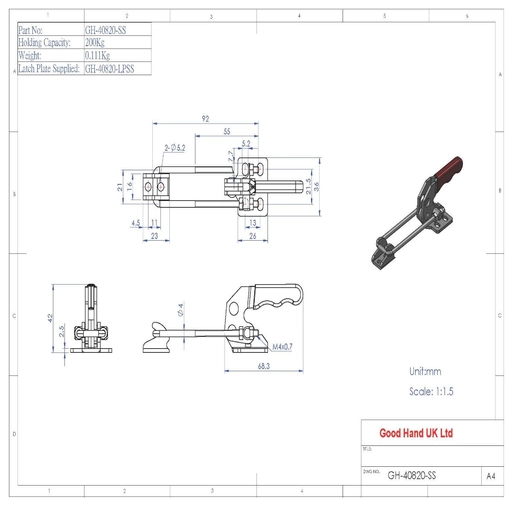

GH-40820-SS Datasheet
