Item Code: GH-40324-RSS

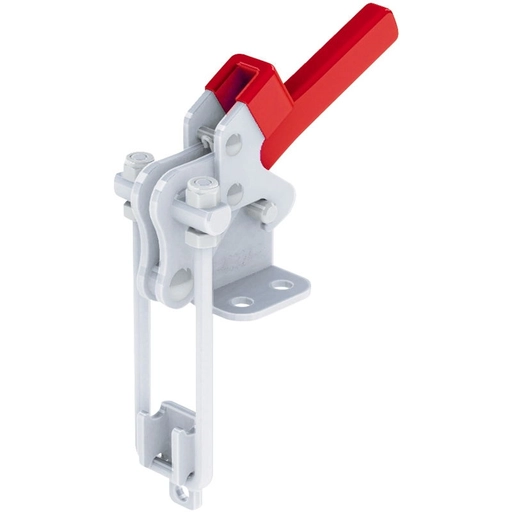

Stainless Steel Vertical Latch Toggle Clamp. Overall Height 78.5mm. Overall Length 81mm. Holding Force 225daN. Latch Plate Included

Stainless Steel Vertical Latch Toggle Clamp. Overall Height 78.5mm. Overall Length 81mm. Holding Force 225daN. Latch Plate Included

Item Code: GH-40324-RSS

Stainless Steel Vertical Latch Toggle Clamp. Overall Height 78.5mm. Overall Length 81mm. Holding Force 225daN. Latch Plate Included

GH-40324-RSS Vertical Latch Toggle Clamp with Safety Lock Size 225daN

Holding Force: 225daN
Weight: 0.12Kg
U Bolt Diameter: 4mm
Bracket Supplied: GH-40324-LPSS
Clamping Stroke: 38mm
Adjustment Distance: 12.2mm

What's In The Bag
GH-40324-RSS Toggle Clamp
GH-40324-LPSS Latch Plate

Material
Clamp: Stainless Steel
Handle: uPVC

Quick Links

24 in stock

Flat
51-100mm
201-300Kg
Yes
Yes
51-100mm
Vertical Latch

£50.10  ea. Excl VAT £60.12  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Base Type Flat
Height 51-100mm
Holding Force 201-300Kg
Safety Lock Yes
Stainless Steel Yes
Total Length 51-100mm
Type Vertical Latch
Download STP

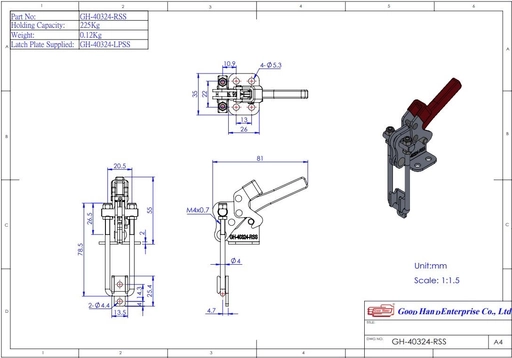

GH-40324-RSS Datasheet
