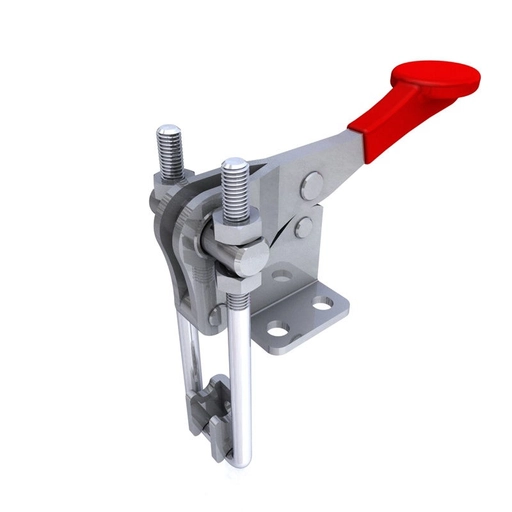

Stainless Steel Vertical Latch Toggle Clamp. Overall Height 111mm. Overall Length 121.5mm. Holding Force 450daN. Latch Plate Included

Item Code: GH-40334-SS

Stainless Steel Vertical Latch Toggle Clamp. Overall Height 111mm. Overall Length 121.5mm. Holding Force 450daN. Latch Plate Included

Item Code: GH-40334-SS

Stainless Steel Vertical Latch Toggle Clamp. Overall Height 111mm. Overall Length 121.5mm. Holding Force 450daN. Latch Plate Included

GH-40334-SS Stainless Steel Latch Clamp with Latch Plate Size 450daN

Holding Force: 450daN
U Bolt Diameter: 6mm
Weight: 0.25Kg
Latch Plate Supplied: GH-40334-LPSS
Clamping Stroke: 50mm
Adjustment Distance: 20.3mm

What's In The Bag
GH-40334-SS Toggle Clamp
GH-40334-LPSS Latch Plate

Material
Clamp: Stainless Steel
Latch Plate: Stainless Steel
Handle: uPVC

Quick Links

13 in stock

Base Type: Flat

Height: 101-150mm

Holding Force: 401+kg

Stainless Steel: Yes

Total Length: 101-150mm

Type: Vertical Latch

Stainless Steel Latch Plate For Model GH-40334SS - £9.03
Stainless Steel Latch Plate For Model GH-40334SS

£46.58 ea. Excl VAT £55.90 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 - 29	£42.85	8%
30 - 49	£40.52	13%
50 +	£38.66	17%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Stainless Steel Latch Plate For Model GH-40334SS - £9.03
Stainless Steel Latch Plate For Model GH-40334SS

Quick Links

Product Dimensions

Specifications

Base Type	Flat
Height	101-150mm
Holding Force	401+kg
Stainless Steel	Yes
Total Length	101-150mm
Type	Vertical Latch

Downloads

Download STP

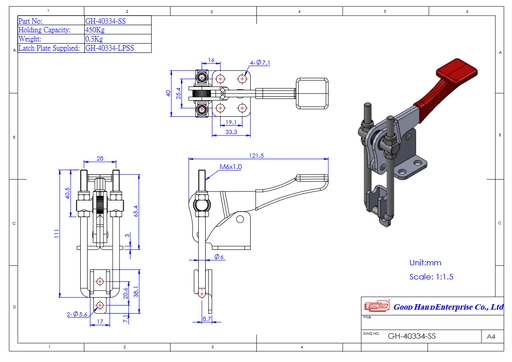

GH-40334-SS Datasheet

Stainless Steel Vertical Latch Toggle Clamp. Overall Height 111mm. Overall Length 121.5mm. Holding Force 450daN. Latch Plate Included

Stainless Steel Vertical Latch Toggle Clamp. Overall Height 111mm. Overall Length 121.5mm. Holding Force 450daN. Latch Plate Included
