Item Code: GH-40334-RSS

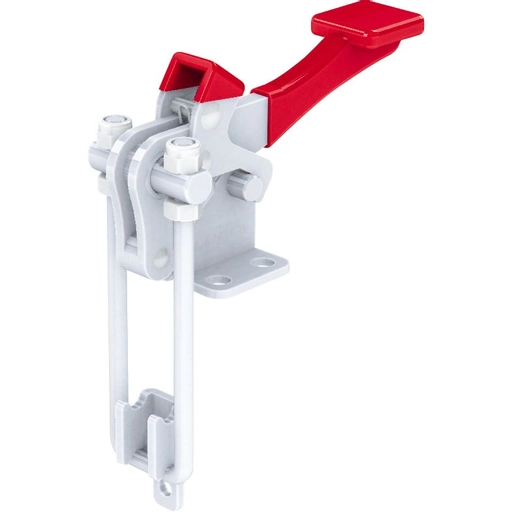

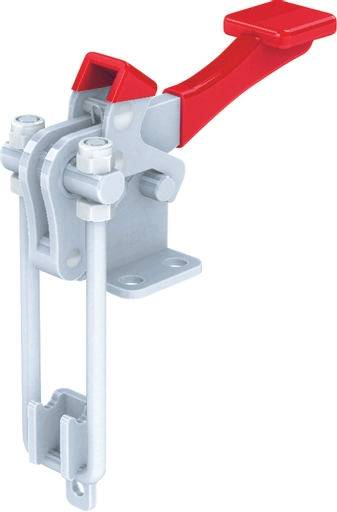

Stainless Steel Vertical Latch Toggle Clamp. Overall Height 111mm. Overall Length 121.5mm. Holding Force 450daN. Latch Plate Included

Item Code: GH-40334-RSS

Stainless Steel Vertical Latch Toggle Clamp. Overall Height 111mm. Overall Length 121.5mm. Holding Force 450daN. Latch Plate Included

GH-40334-RSS Vertical Latch Toggle Clamp with Safety Lock Size 450daN

Holding Force: 450daN
Weight: 0.32Kg
U Bolt Diameter: 6mm
Bracket Supplied: GH-40334-LPSS
Clamping Stroke: 50mm
Adjustment Distance: 20.3mm

What's In The Bag
GH-40334-RSS Toggle Clamp
GH-40334-LPSS Latch Plate

Material
Clamp: Stainless Steel
Handle: uPVC

Quick Links

20 in stock

Flat
101-150mm
401+kg
Yes
Yes
101-150mm
Vertical Latch

£74.27  ea. Excl VAT £89.12  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Base Type Flat
Height 101-150mm
Holding Force 401+kg
Safety Lock Yes
Stainless Steel Yes
Total Length 101-150mm
Type Vertical Latch
Download STP

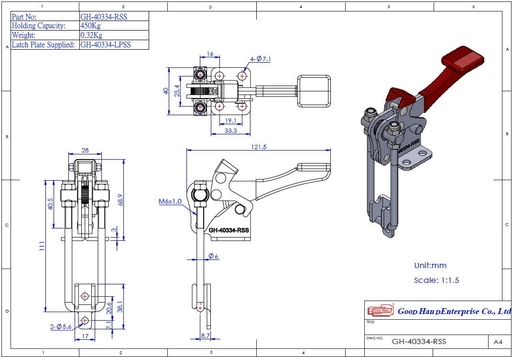

GH-40334-RSS Datasheet
