Item Code: GH-40380-RSS

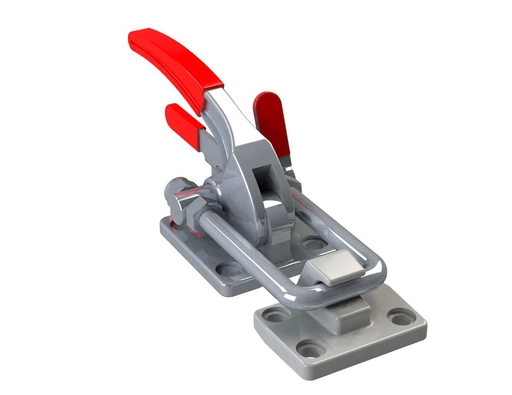

Stainless Steel Horizontal Latch Toggle Clamp. Overall Length 248.2mm. Overall Height 93.8mm. Holding Force 3400daN. Latch Plate Included

Stainless Steel Horizontal Latch Toggle Clamp. Overall Length 248.2mm. Overall Height 93.8mm. Holding Force 3400daN. Latch Plate Included

Item Code: GH-40380-RSS

Stainless Steel Horizontal Latch Toggle Clamp. Overall Length 248.2mm. Overall Height 93.8mm. Holding Force 3400daN. Latch Plate Included

GH-40380-RSS Stainless Steel Latch Toggle Clamp with Safety Lock Size 3400daN
Holding Force: 3400daN
Weight: 1.61Kg
U Bar Diameter: 1/2"
Latch Plate Supplied: GH-40370-LPSS
Clamping Stroke: 50mm
Adjustment Distance: 28.4mm

What's In The Bag
GH-40380-RSS Toggle Clamp
GH-40370-LPSS Latch Plate

Material
Clamp: Stainless Steel
Latch Plate: Stainless Steel
Handle: uPVC

Quick Links

50+ in stock

Flat
51-100mm
401+kg
Yes
Yes
151-200mm
Latch

£244.63  ea. Excl VAT £293.56  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £225.06 8%
30 - 49 £212.83 13%
50 + £203.04 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Base Type Flat
Height 51-100mm
Holding Force 401+kg
Safety Lock Yes
Stainless Steel Yes
Total Length 151-200mm
Type Latch
Downlaod STP

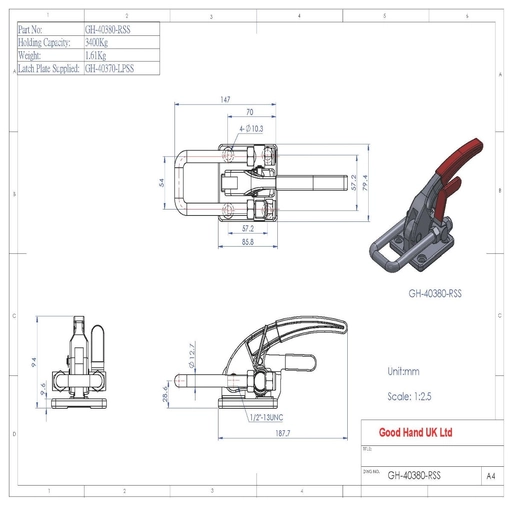

GH-40380-RSS Datasheet
