Item Code: GH-40323-RSS

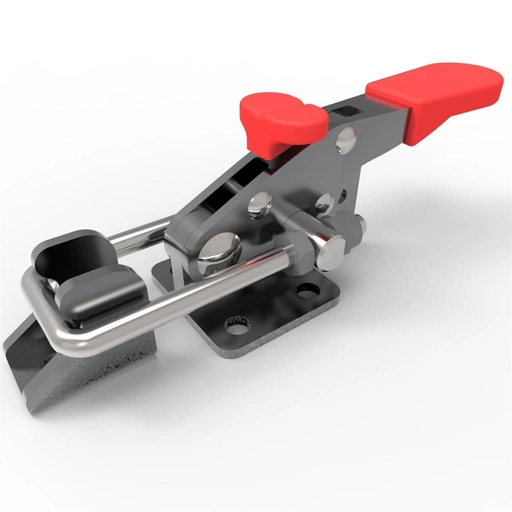

Stainless Steel Horizontal Latch Toggle Clamp. Overall Length 105.8mm. Overall Height 31.3mm. Holding Force 163daN. Safety Lock. Latch Plate Included

Item Code: GH-40323-RSS

Stainless Steel Horizontal Latch Toggle Clamp. Overall Length 105.8mm. Overall Height 31.3mm. Holding Force 163daN. Safety Lock. Latch Plate Included

GH-40323-RSS Horizontal Latch Toggle Clamp with Safety Lock Size 163daN
Holding Force: 163daN
Weight: 0.071Kg
U Bolt Diameter: 4mm
Latch Plate Supplied: GH-40323-LPSS
Clamping Stroke: 24mm
Adjustment Distance: 10.4mm

What's In The Bag
GH-40323-RSS Toggle Clamp
GH-40323-LPSS Latch Plate

Material
Clamp: Stainless Steel
Latch Plate: Stainless Steel
Handle: uPVC

Quick Links

50+ in stock

Flat
101-200kg
0-50mm
101-150mm
Yes
Latch
Yes

£39.71  ea. Excl VAT £47.65  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £36.53 8%
30 - 49 £34.55 13%
50 + £32.96 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Base Type Flat
Holding Force 101-200kg
Height 0-50mm
Total Length 101-150mm
Safety Lock Yes
Type Latch
Stainless Steel Yes
Downlaod STP

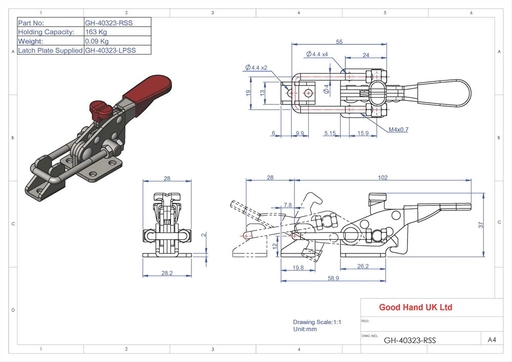

GH-40323-RSS Datasheet
