Item Code: GH-40323-R

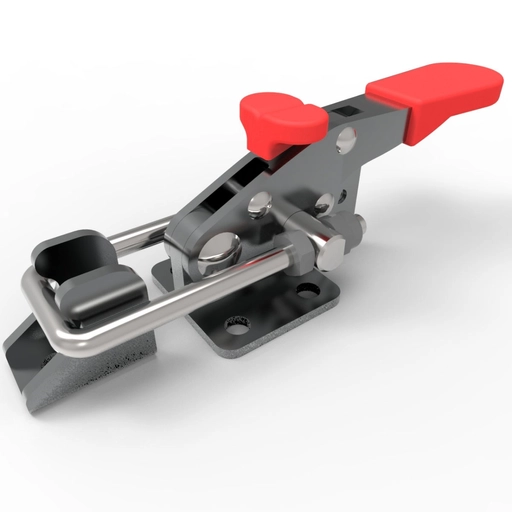

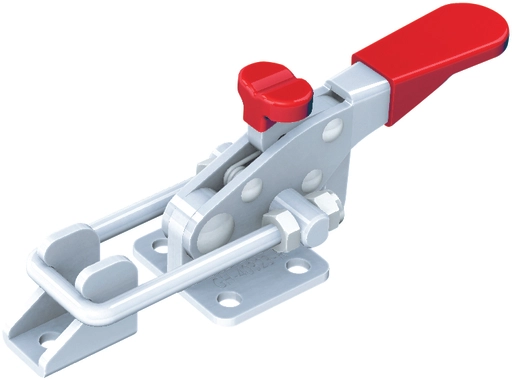

Horizontal Latch Toggle Clamp With Safety Lock. Overall Length 105.8mm. Overall Height 31.3mm. Holding Force 163daN. Latch Plate Included

Horizontal Latch Toggle Clamp With Safety Lock. Overall Length 105.8mm. Overall Height 31.3mm. Holding Force 163daN. Latch Plate Included

Item Code: GH-40323-R

Horizontal Latch Toggle Clamp With Safety Lock. Overall Length 105.8mm. Overall Height 31.3mm. Holding Force 163daN. Latch Plate Included

GH-40323-R Horizontal Latch Toggle Clamp with Safety Lock Size 163daN

Holding Force: 163daN
Weight: 0.071Kg
U Bolt Diameter: 4mm
Latch Plate Supplied: GH-40323-LP
Clamping Stroke: 24mm
Adjustment Distance: 10.4mm

What's In The Bag
GH-40323-R Toggle Clamp
GH-40323-LP Latch Plate

Material
Clamp: Steel
Handle: uPVC

Quick Links

18 in stock

Flat
0-50mm
101-200kg
Yes
Yes
51-100mm
Latch

£15.42  ea. Excl VAT £18.50  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £14.19 8%
30 - 49 £13.42 13%
50 + £12.80 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Base Type Flat
Height 0-50mm
Holding Force 101-200kg
Safety Lock Yes
Stainless Steel Yes
Total Length 51-100mm
Type Latch
Download STP

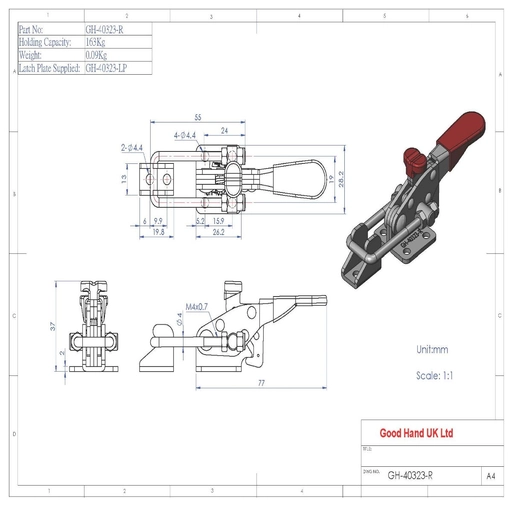

GH-40323-R Datasheet
