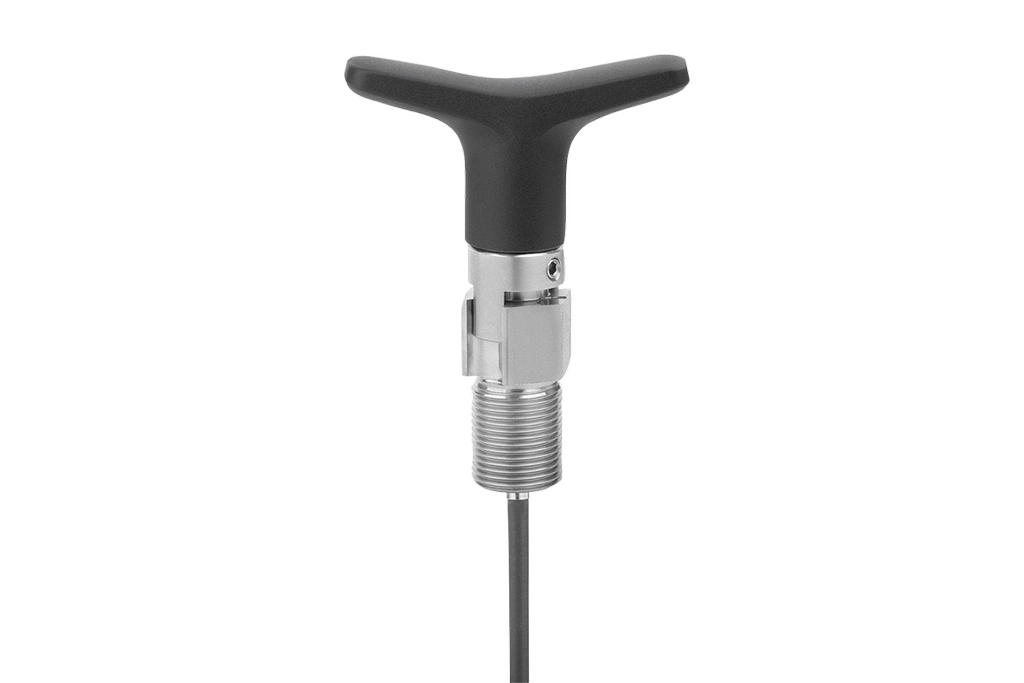

K2213 - T-Grip Actuating Element For Remote Control Bowden Cable System In Stainless Steel

K2213 - T-Grip Actuating Element For Remote Control Bowden Cable System In Stainless Steel

Product description:
The operating elements for manual operation of the Bowden cable systems were specially designed to match the system-compatible indexing plungers. The combination of indexing plunger and actuating element forms a complete system which can be used for many types of application. Differing grip geometries enable optimal handling for the respective application.

Material:
Actuating element 1.4305.
Grip thermoplastic.
Setscrew brass.

Version:
Stainless steel parts bright.
Setscrew galvanised.
Plastic grip black-grey.

Note:
When installing the Bowden cables, the following points should be noted:The length of the free end of the cable can change due to the layout angle, bending radius and load factors. So, after laying the Bowden cable, the length of the counter-bearing (casing) must be adjusted using the adjusting screw supplied. The adjusting screw is also used to set the pretension in the Bowden cable system.
When laying the cable, particular care must be taken to ensure that the bending radius is not below the minimum value, which in this case is R = 65 mm. A radius which is too narrow can lead to increased wear and higher friction.
Also avoid letting the bending radius briefly go below the minimum value when installing, as this can cause damage to the casing. Also, the casing is designed only to support pressure forces. If pulled too sharply, the inner coil will be stretched and permanently damaged.

On request:
Special versions.

Accessory:
Indexing plunger K2214.
Indexing plunger K2215.
Hex nut K0700.
Mounting bracket K0638.
Bowden cable K2116.
Wire cable K2023.
Tension sleeve K2024.
End sleeve K2025.
Setscrew K2026.
Bowden cable distributor K2042.

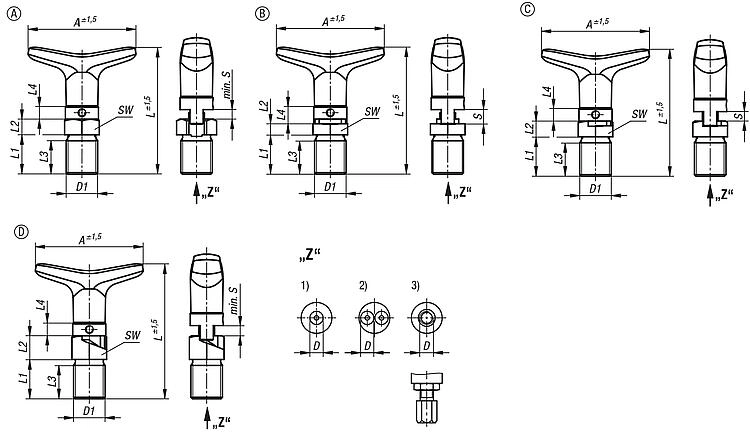

Drawing reference:
Form A: without detent function
Form B: with detent function
Form C: with detent function and rotation lock
Form D: with rotary cam

1) Single Bowden cable connection
2) Double Bowden cable connection
3) Single Bowden cable connection with setscrew

Select your sizes

Line drawing placeholder

Move drawing here

	A	Component Colour	D	D1	Form	L	L1	L2	L3	L4	Size	Style	SW	Travel S	Version	Price (Exc. Tax)	Stock
Filters
K2213.1422210 View product	75	Black	6	M20x1.5	D	94	25	20	21.2	8	2	Rotation Cam	22	10	With T-Grip	£55.70	0
K2213.1432216 View product	75	Black	6	M20x1.5	D	99	25	25	21.2	8	3	Rotation Cam	22	16	With T-Grip	£55.84	0
K2213.1422208 View product	75	Black	6	M20x1.5	D	94	25	20	21.2	8	2	Rotation Cam	22	8	With T-Grip	£54.60	0
K2213.1412204 View product	75	Black	6	M20x1.5	D	89	25	15	21.2	8	1	Rotation Cam	22	4	With T-Grip	£52.56	0
K2213.1412206 View product	75	Black	6	M20x1.5	D	89	25	15	21.2	8	1	Rotation Cam	22	6	With T-Grip	£49.88	0
K2213.1422212 View product	75	Black	6	M20x1.5	D	94	25	20	21.2	8	2	Rotation Cam	22	12	With T-Grip	£53.48	0
K2213.1412205 View product	75	Black	6	M20x1.5	D	89	25	15	21.2	8	1	Rotation Cam	22	5	With T-Grip	£50.06	0
K2213.1312205 View product	75	Black	6	M20x1.5	C	84	25	10	21.2	8	1	With Detent function. Rotation Lock	22	5	With T-Grip	£46.78	0
K2213.1322210 View product	75	Black	6	M20x1.5	C	94	25	20	21.2	8	2	With Detent function. Rotation Lock	22	10	With T-Grip	£52.50	0
K2213.1312204 View product	75	Black	6	M20x1.5	C	84	25	10	21.2	8	1	With Detent function. Rotation Lock	22	4	With T-Grip	£49.30	0
K2213.1322212 View product	75	Black	6	M20x1.5	C	94	25	20	21.2	8	2	With Detent function. Rotation Lock	22	12	With T-Grip	£53.00	0
K2213.1322216 View product	75	Black	6	M20x1.5	C	94	25	20	21.2	8	2	With Detent function. Rotation Lock	22	16	With T-Grip	£50.70	0
K2213.1312206 View product	75	Black	6	M20x1.5	C	84	25	10	21.2	8	1	With Detent function. Rotation Lock	22	6	With T-Grip	£46.62	0
K2213.1322208 View product	75	Black	6	M20x1.5	C	94	25	20	21.2	8	2	With Detent function. Rotation Lock	22	8	With T-Grip	£51.42	0
K2213.1122212 View product	75	Black	6	M20x1.5	A	94	25	20	21.2	8	2	Without Detent Function	22	12	With T-Grip	£52.58	0
K2213.1112205 View product	75	Black	6	M20x1.5	A	84	25	10	21.2	8	1	Without Detent Function	22	5	With T-Grip	£46.74	0
K2213.1122208 View product	75	Black	6	M20x1.5	A	94	25	20	21.2	8	2	Without Detent Function	22	8	With T-Grip	£51.00	0
K2213.1122210 View product	75	Black	6	M20x1.5	A	94	25	20	21.2	8	2	Without Detent Function	22	10	With T-Grip	£52.08	0
K2213.1122216 View product	75	Black	6	M20x1.5	A	94	25	20	21.2	8	2	Without Detent Function	22	16	With T-Grip	£50.28	0
K2213.1112204 View product	75	Black	6	M20x1.5	A	84	25	10	21.2	8	1	Without Detent Function	22	4	With T-Grip	£49.24	0
K2213.1112206 View product	75	Black	6	M20x1.5	A	84	25	10	21.2	8	1	Without Detent Function	22	6	With T-Grip	£46.58	0
K2213.1413205 View product	75	Black	M6	M20x1.5	D	89	25	15	21.2	8	1	Rotation Cam	22	5	With T-Grip	£51.16	0
K2213.1423210 View product	75	Black	M6	M20x1.5	D	94	25	20	21.2	8	2	Rotation Cam	22	10	With T-Grip	£56.80	0
K2213.1423212 View product	75	Black	M6	M20x1.5	D	94	25	20	21.2	8	2	Rotation Cam	22	12	With T-Grip	£54.56	0
K2213.1433216 View product	75	Black	M6	M20x1.5	D	99	25	25	21.2	8	3	Rotation Cam	22	16	With T-Grip	£56.94	0
K2213.1413204 View product	75	Black	M6	M20x1.5	D	89	25	15	21.2	8	1	Rotation Cam	22	4	With T-Grip	£53.64	0
K2213.1423208 View product	75	Black	M6	M20x1.5	D	94	25	20	21.2	8	2	Rotation Cam	22	8	With T-Grip	£55.70	0
K2213.1413206 View product	75	Black	M6	M20x1.5	D	89	25	15	21.2	8	1	Rotation Cam	22	6	With T-Grip	£50.98	0
K2213.1313206 View product	75	Black	M6	M20x1.5	C	84	25	10	21.2	8	1	With Detent function. Rotation Lock	22	6	With T-Grip	£47.70	0
K2213.1323216 View product	75	Black	M6	M20x1.5	C	94	25	20	21.2	8	2	With Detent function. Rotation Lock	22	16	With T-Grip	£51.78	0
K2213.1313204 View product	75	Black	M6	M20x1.5	C	84	25	10	21.2	8	1	With Detent function. Rotation Lock	22	4	With T-Grip	£50.38	0
K2213.1313205 View product	75	Black	M6	M20x1.5	C	84	25	10	21.2	8	1	With Detent function. Rotation Lock	22	5	With T-Grip	£47.88	0
K2213.1323210 View product	75	Black	M6	M20x1.5	C	94	25	20	21.2	8	2	With Detent function. Rotation Lock	22	10	With T-Grip	£53.60	0
K2213.1323212 View product	75	Black	M6	M20x1.5	C	94	25	20	21.2	8	2	With Detent function. Rotation Lock	22	12	With T-Grip	£54.08	0
K2213.1323208 View product	75	Black	M6	M20x1.5	C	94	25	20	21.2	8	2	With Detent function. Rotation Lock	22	8	With T-Grip	£52.50	0
K2213.1213204 View product	75	Black	M6	M20x1.5	B	84	25	10	21.2	8	1	With Detent	22	4	With T-Grip	£50.60	0
K2213.1223216 View product	75	Black	M6	M20x1.5	B	94	25	20	21.2	8	2	With Detent	22	16	With T-Grip	£51.80	0
K2213.1223208 View product	75	Black	M6	M20x1.5	B	94	25	20	21.2	8	2	With Detent	22	8	With T-Grip	£52.52	0
K2213.1223212 View product	75	Black	M6	M20x1.5	B	94	25	20	21.2	8	2	With Detent	22	12	With T-Grip	£54.10	0
K2213.1213205 View product	75	Black	M6	M20x1.5	B	84	25	10	21.2	8	1	With Detent	22	5	With T-Grip	£48.10	0
K2213.1213206 View product	75	Black	M6	M20x1.5	B	84	25	10	21.2	8	1	With Detent	22	6	With T-Grip	£47.90	0
K2213.1223210 View product	75	Black	M6	M20x1.5	B	94	25	20	21.2	8	2	With Detent	22	10	With T-Grip	£53.60	0
K2213.1113205 View product	75	Black	M6	M20x1.5	A	84	25	10	21.2	8	1	Without Detent Function	22	5	With T-Grip	£47.84	0
K2213.1123210 View product	75	Black	M6	M20x1.5	A	94	25	20	21.2	8	2	Without Detent Function	22	10	With T-Grip	£53.18	0
K2213.1113204 View product	75	Black	M6	M20x1.5	A	84	25	10	21.2	8	1	Without Detent Function	22	4	With T-Grip	£50.34	0
K2213.1113206 View product	75	Black	M6	M20x1.5	A	84	25	10	21.2	8	1	Without Detent Function	22	6	With T-Grip	£47.66	0
K2213.1123212 View product	75	Black	M6	M20x1.5	A	94	25	20	21.2	8	2	Without Detent Function	22	12	With T-Grip	£53.68	0
K2213.1123216 View product	75	Black	M6	M20x1.5	A	94	25	20	21.2	8	2	Without Detent Function	22	16	With T-Grip	£51.38	0
