K2213 - Mushroom Grip Actuating Element For Remote Control Bowden Cable System In Stainless Steel

K2213 - Mushroom Grip Actuating Element For Remote Control Bowden Cable System In Stainless Steel

Product description:
The operating elements for manual operation of the Bowden cable systems were specially designed to match the system-compatible indexing plungers. The combination of indexing plunger and actuating element forms a complete system which can be used for many types of application. Differing grip geometries enable optimal handling for the respective application.

Material:
Actuating element 1.4305.
Grip thermoplastic.
Setscrew brass.

Version:
Stainless steel parts bright.
Setscrew galvanised.
Plastic grip available in various colours.

Note for ordering:
We recommend using the online shop configurator to create a complete system with ease.

Note:
When installing the Bowden cables, the following points should be noted:The length of the free end of the cable can change due to the layout angle, bending radius and load factors. So, after laying the Bowden cable, the length of the counter-bearing (casing) must be adjusted using the adjusting screw supplied. The adjusting screw is also used to set the pretension in the Bowden cable system.
When laying the cable, particular care must be taken to ensure that the bending radius is not below the minimum value, which in this case is R = 65 mm. A radius which is too narrow can lead to increased wear and higher friction.
Also avoid letting the bending radius briefly go below the minimum value when installing, as this can cause damage to the casing. Also, the casing is designed only to support pressure forces. If pulled too sharply, the inner coil will be stretched and permanently damaged.

On request:
Special versions.

Accessory:
Indexing plunger K2214.
Indexing plunger K2215.
Hex nut K0700.
Mounting bracket K0638.
Bowden cable K2116.
Wire cable K2023.
Tension sleeve K2024.
End sleeve K2025.
Setscrew K2026.
Bowden cable distributor K2042.

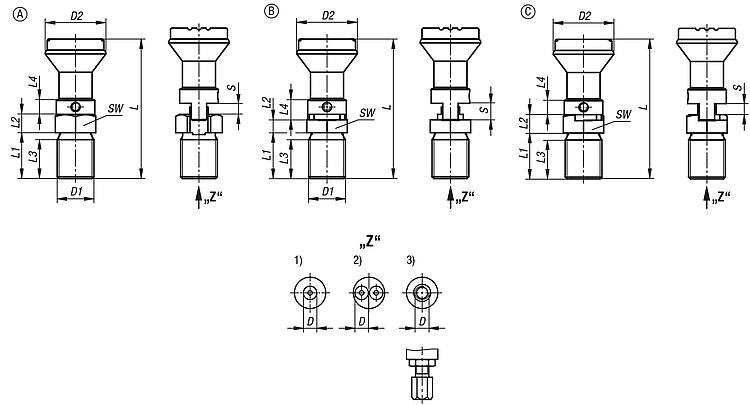

Drawing reference:
Form A: without detent function
Form B: with detent function
Form C: with detent function and rotation lock

1) Single Bowden cable connection
2) Double Bowden cable connection
3) Single Bowden cable connection with setscrew

Select your sizes

Line drawing placeholder

Move drawing here

	Component Colour	D	D1	D2	Form	L	L1	L2	L3	L4	Lockout	Size	SW	Travel S	Version	Price (Exc. Tax)	Stock
Filters
K2213.1122112 View product	Black	6	M20x1.5	33	A	86	25	20	21.2	8	No	2	22	12	Mushroom Grip	£49.96	0
K2213.1112106 View product	Black	6	M20x1.5	33	A	76	25	10	21.2	8	No	1	22	6	Mushroom Grip	£43.96	0
K2213.1122116 View product	Black	6	M20x1.5	33	A	86	25	20	21.2	8	No	2	22	16	Mushroom Grip	£47.66	0
K2213.1112104 View product	Black	6	M20x1.5	33	A	76	25	10	21.2	8	No	1	22	4	Mushroom Grip	£46.64	0
K2213.1112105 View product	Black	6	M20x1.5	33	A	76	25	10	21.2	8	No	1	22	5	Mushroom Grip	£44.12	0
K2213.1122108 View product	Black	6	M20x1.5	33	A	86	25	20	21.2	8	No	2	22	8	Mushroom Grip	£48.38	0
K2213.1122110 View product	Black	6	M20x1.5	33	A	86	25	20	21.2	8	No	2	22	10	Mushroom Grip	£49.46	0
K2213.11221310 View product	Blue	6	M20x1.5	33	A	86	25	20	21.2	8	No	2	22	10	Mushroom Grip	£49.46	0
K2213.11221316 View product	Blue	6	M20x1.5	33	A	86	25	20	21.2	8	No	2	22	16	Mushroom Grip	£47.66	0
K2213.11221312 View product	Blue	6	M20x1.5	33	A	86	25	20	21.2	8	No	2	22	12	Mushroom Grip	£49.96	0
K2213.11121304 View product	Blue	6	M20x1.5	33	A	76	25	10	21.2	8	No	1	22	4	Mushroom Grip	£46.64	0
K2213.11121305 View product	Blue	6	M20x1.5	33	A	76	25	10	21.2	8	No	1	22	5	Mushroom Grip	£44.12	0
K2213.11121306 View product	Blue	6	M20x1.5	33	A	76	25	10	21.2	8	No	1	22	6	Mushroom Grip	£43.96	0
K2213.11221308 View product	Blue	6	M20x1.5	33	A	86	25	20	21.2	8	No	2	22	8	Mushroom Grip	£48.38	0
K2213.11121205 View product	Green	6	M20x1.5	33	A	76	25	10	21.2	8	No	1	22	5	Mushroom Grip	£44.12	0
K2213.11121204 View product	Green	6	M20x1.5	33	A	76	25	10	21.2	8	No	1	22	4	Mushroom Grip	£46.64	0
K2213.11221212 View product	Green	6	M20x1.5	33	A	86	25	20	21.2	8	No	2	22	12	Mushroom Grip	£49.96	0
K2213.11221216 View product	Green	6	M20x1.5	33	A	86	25	20	21.2	8	No	2	22	16	Mushroom Grip	£47.66	0
K2213.11121206 View product	Green	6	M20x1.5	33	A	76	25	10	21.2	8	No	1	22	6	Mushroom Grip	£43.96	0
K2213.11221208 View product	Green	6	M20x1.5	33	A	86	25	20	21.2	8	No	2	22	8	Mushroom Grip	£48.38	0
K2213.11221210 View product	Green	6	M20x1.5	33	A	86	25	20	21.2	8	No	2	22	10	Mushroom Grip	£49.46	0
K2213.11121505 View product	Grey	6	M20x1.5	33	A	76	25	10	21.2	8	No	1	22	5	Mushroom Grip	£44.12	0
K2213.11221508 View product	Grey	6	M20x1.5	33	A	86	25	20	21.2	8	No	2	22	8	Mushroom Grip	£48.38	0
K2213.11121504 View product	Grey	6	M20x1.5	33	A	76	25	10	21.2	8	No	1	22	4	Mushroom Grip	£46.64	0
K2213.11221516 View product	Grey	6	M20x1.5	33	A	86	25	20	21.2	8	No	2	22	16	Mushroom Grip	£47.66	0
K2213.11121506 View product	Grey	6	M20x1.5	33	A	76	25	10	21.2	8	No	1	22	6	Mushroom Grip	£43.96	0
K2213.11221510 View product	Grey	6	M20x1.5	33	A	86	25	20	21.2	8	No	2	22	10	Mushroom Grip	£49.46	0
K2213.11221512 View product	Grey	6	M20x1.5	33	A	86	25	20	21.2	8	No	2	22	12	Mushroom Grip	£49.96	0
K2213.11121105 View product	Orange	6	M20x1.5	33	A	76	25	10	21.2	8	No	1	22	5	Mushroom Grip	£44.12	0
K2213.11221116 View product	Orange	6	M20x1.5	33	A	86	25	20	21.2	8	No	2	22	16	Mushroom Grip	£47.66	0
K2213.11121106 View product	Orange	6	M20x1.5	33	A	76	25	10	21.2	8	No	1	22	6	Mushroom Grip	£43.96	0
K2213.11221110 View product	Orange	6	M20x1.5	33	A	86	25	20	21.2	8	No	2	22	10	Mushroom Grip	£49.46	0
K2213.11221112 View product	Orange	6	M20x1.5	33	A	86	25	20	21.2	8	No	2	22	12	Mushroom Grip	£49.96	0
K2213.11221108 View product	Orange	6	M20x1.5	33	A	86	25	20	21.2	8	No	2	22	8	Mushroom Grip	£48.38	0
K2213.11121104 View product	Orange	6	M20x1.5	33	A	76	25	10	21.2	8	No	1	22	4	Mushroom Grip	£46.64	0
K2213.11121606 View product	Red	6	M20x1.5	33	A	76	25	10	21.2	8	No	1	22	6	Mushroom Grip	£43.96	0
K2213.11221608 View product	Red	6	M20x1.5	33	A	86	25	20	21.2	8	No	2	22	8	Mushroom Grip	£48.38	0
K2213.11121604 View product	Red	6	M20x1.5	33	A	76	25	10	21.2	8	No	1	22	4	Mushroom Grip	£46.64	0
K2213.11121605 View product	Red	6	M20x1.5	33	A	76	25	10	21.2	8	No	1	22	5	Mushroom Grip	£44.12	0
K2213.11221610 View product	Red	6	M20x1.5	33	A	86	25	20	21.2	8	No	2	22	10	Mushroom Grip	£49.46	0
K2213.11221612 View product	Red	6	M20x1.5	33	A	86	25	20	21.2	8	No	2	22	12	Mushroom Grip	£49.96	0
K2213.11221616 View product	Red	6	M20x1.5	33	A	86	25	20	21.2	8	No	2	22	16	Mushroom Grip	£47.66	0
K2213.11121705 View product	Yellow	6	M20x1.5	33	A	76	25	10	21.2	8	No	1	22	5	Mushroom Grip	£44.12	0
K2213.11221710 View product	Yellow	6	M20x1.5	33	A	86	25	20	21.2	8	No	2	22	10	Mushroom Grip	£49.46	0
K2213.11121704 View product	Yellow	6	M20x1.5	33	A	76	25	10	21.2	8	No	1	22	4	Mushroom Grip	£46.64	0
K2213.11221708 View product	Yellow	6	M20x1.5	33	A	86	25	20	21.2	8	No	2	22	8	Mushroom Grip	£48.38	0
K2213.11221712 View product	Yellow	6	M20x1.5	33	A	86	25	20	21.2	8	No	2	22	12	Mushroom Grip	£49.96	0
K2213.11221716 View product	Yellow	6	M20x1.5	33	A	86	25	20	21.2	8	No	2	22	16	Mushroom Grip	£47.66	0
