K2128 - Adjustable Cam Levers With Steel Handle and Steel Thread M3-M10

List view Grid view

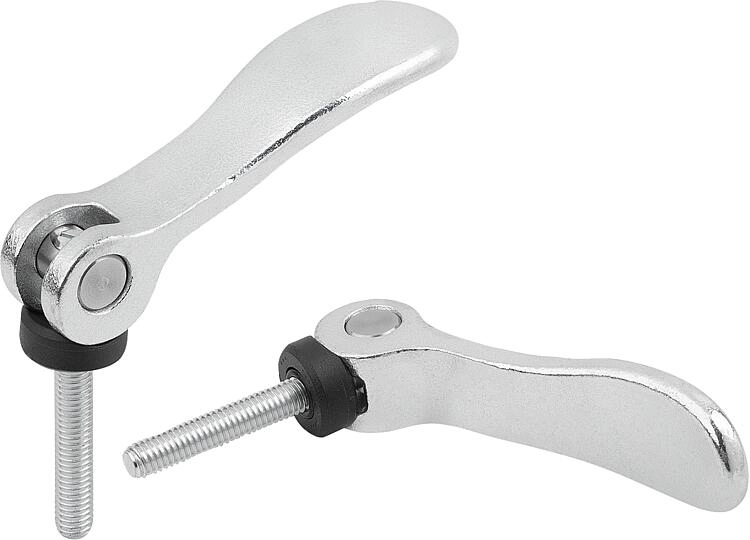

K2128 - Adjustable Cam Levers With Steel Handle and Steel Thread M3-M10

Product description:
These cam levers have a technically optimised plastic thrust washer.
The thrust washer is made of a special high-performance plastic that guarantees very good wear and creep resistance.

Material:
Handle steel 1.0401.
Thrust washer high performance, carbon-fibre reinforced thermoplastic.
Hinge pin stainless steel 1.4305.
Stud steel, grade 5.8.

Version:
Handle and stud blue passivated.
Thrust washer, black.
Hinge pin bright.

Note:
Adjustable cam levers are used if the position of the lever relative to the axis of tension only permits one specific position (interference circle). The exact position of the lever is adjusted using a screwdriver on the fine thread setscrew.
Plastics are subject to creeping under load (retardation).

Accessory:
For slightly curved contact faces, a stainless steel washer K2130 can also be ordered.
This washer can be mounted between the thrust washer and the contact face.

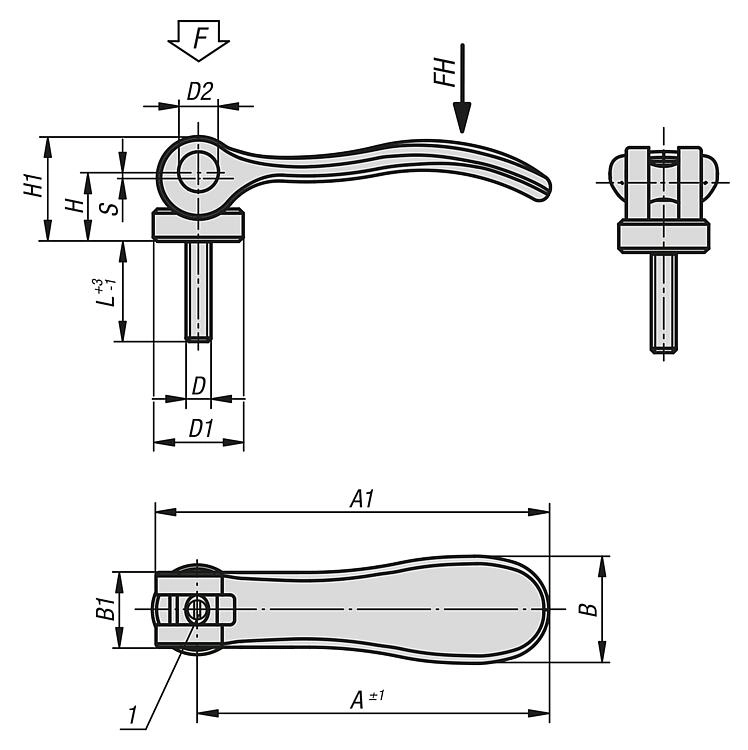

Drawing reference:
1) setscrew for fine adjustment of lever

K2128 - Adjustable Cam Levers With Steel Handle and Steel Thread M3-M10

Quick Filters

Choose Vertical Base Type

Flat

Side Mount

Straight

Choose Horizontal Base Type

Flat

Side Mount

Straight

Choose Stroke Length

0-40mm

41-80mm

81mm and Over

Choose Type

Hook

Latch

Vertical Latch

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Air Knife Only

Air Knife With Filter and Shim Set

Air Knife With Plumbing Kit Installed, Filter and Shim Set

Style

Air Knife Only

Air Knife With Filter and Shim Set

Style

Air Knife Only

Air Knife With Filter and Shim Set

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Air Amplifier Only

Air Amplifier With Filter and Shim Set

Style

Air Amplifier Only

Air Amplifier With Filter

Item

Filter / Regulator

Air Amplifier Shim Set

Item

Filter / Regulator

Vortex Tube Generator

Vortex Tube Cold Silencer

Vortex Tube Hot Silencer

Style

Vortex Tube Only

Vortex Tube With Generator Kit, Muffler, Tubing And Filter

Clamp Type

Horizontal

Vertical

Latch

Vertical Latch

Clamp Type

Vertical

Press

Push-Pull

Clamp Type

Horizontal

Vertical

Hook

Latch

Vertical Latch

Push-Pull

Flip-Flop

Line drawing placeholder

Move drawing here

Hand Force FH (N) A A1 B B1 Clamping force F (kN) D D1 D2 H H1 L Travel S Price (Exc. Tax) Stock Qty basket

Filters

K2128.1502205X20
View product
120 70.4 79.2 21.5 15 4 M5 16 9 14.7 22.2 20 1.2
£14.67
0
K2128.1502205X30
View product
120 70.4 79.2 21.5 15 4 M5 16 9 14.7 22.2 30 1.2
£14.67
0
K2128.1502205X40
View product
120 70.4 79.2 21.5 15 4 M5 16 9 14.7 22.2 40 1.2
£15.08
0
K2128.1502205X50
View product
120 70.4 79.2 21.5 15 4 M5 16 9 14.7 22.2 50 1.2
£15.08
0
K2128.1502206X20
View product
120 70.4 79.2 21.5 15 4 M6 16 9 14.7 22.2 20 1.2
£14.67
0
K2128.1502206X30
View product
120 70.4 79.2 21.5 15 4 M6 16 9 14.7 22.2 30 1.2
£14.67
0
K2128.1502206X40
View product
120 70.4 79.2 21.5 15 4 M6 16 9 14.7 22.2 40 1.2
£15.08
0
K2128.1502206X50
View product
120 70.4 79.2 21.5 15 4 M6 16 9 14.7 22.2 50 1.2
£15.08
0
K2128.2502208X25
View product
350 96 108 33.3 24 8 M8 25 11 18.3 28.8 25 1.5
£23.14
0
K2128.2502208X30
View product
350 96 108 33.3 24 8 M8 25 11 18.3 28.8 30 1.5
£23.14
0
K2128.2502208X40
View product
350 96 108 33.3 24 8 M8 25 11 18.3 28.8 40 1.5
£23.73
0
K2128.2502208X50
View product
350 96 108 33.3 24 8 M8 25 11 18.3 28.8 50 1.5
£23.73
6
K2128.2502210X25
View product
350 96 108 33.3 24 8 M10 25 11 18.3 28.8 25 1.5
£23.14
0
K2128.2502210X30
View product
350 96 108 33.3 24 8 M10 25 11 18.3 28.8 30 1.5
£23.14
0
K2128.2502210X40
View product
350 96 108 33.3 24 8 M10 25 11 18.3 28.8 40 1.5
£23.73
0
K2128.2502210X50
View product
350 96 108 33.3 24 8 M10 25 11 18.3 28.8 50 1.5
£23.73
0

Showing products per page


£
£

Dispatch by 28/10/25

Item Code: K2128.1502205X20

Adjustable Cam Lever. 70.4mm Handle Length. M5x20mm Steel Thread.

£14.67  Excl VAT £17.60  Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K2128.1502205X30

Adjustable Cam Lever. 70.4mm Handle Length. M5x30mm Steel Thread.

£14.67  Excl VAT £17.60  Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K2128.1502205X40

Adjustable Cam Lever. 70.4mm Handle Length. M5x40mm Steel Thread.

£15.08  Excl VAT £18.10  Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K2128.1502205X50

Adjustable Cam Lever. 70.4mm Handle Length. M5x50mm Steel Thread.

£15.08  Excl VAT £18.10  Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K2128.1502206X20

Adjustable Cam Lever. 70.4mm Handle Length. M6x20mm Steel Thread.

£14.67  Excl VAT £17.60  Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K2128.1502206X30

Adjustable Cam Lever. 70.4mm Handle Length. M6x30mm Steel Thread.

£14.67  Excl VAT £17.60  Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K2128.1502206X40

Adjustable Cam Lever. 70.4mm Handle Length. M6x40mm Steel Thread.

£15.08  Excl VAT £18.10  Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K2128.1502206X50

Adjustable Cam Lever. 70.4mm Handle Length. M6x50mm Steel Thread.

£15.08  Excl VAT £18.10  Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K2128.2502208X25

Adjustable Cam Lever. 96mm Handle Length. M8x25mm Steel Thread.

£23.14  Excl VAT £27.77  Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K2128.2502208X30

Adjustable Cam Lever. 96mm Handle Length. M8x30mm Steel Thread.

£23.14  Excl VAT £27.77  Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K2128.2502208X40

Adjustable Cam Lever. 96mm Handle Length. M8x40mm Steel Thread.

£23.73  Excl VAT £28.48  Inc VAT

Price breaks available

Text

Qty

6 in stock

Item Code: K2128.2502208X50

Adjustable Cam Lever. 96mm Handle Length. M8x50mm Steel Thread.

£23.73  Excl VAT £28.48  Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K2128.2502210X25

Adjustable Cam Lever. 96mm Handle Length. M10x25mm Steel Thread.

£23.14  Excl VAT £27.77  Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K2128.2502210X30

Adjustable Cam Lever. 96mm Handle Length. M10x30mm Steel Thread.

£23.14  Excl VAT £27.77  Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K2128.2502210X40

Adjustable Cam Lever. 96mm Handle Length. M10x40mm Steel Thread.

£23.73  Excl VAT £28.48  Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K2128.2502210X50

Adjustable Cam Lever. 96mm Handle Length. M10x50mm Steel Thread.

£23.73  Excl VAT £28.48  Inc VAT

Price breaks available

Text

Qty
