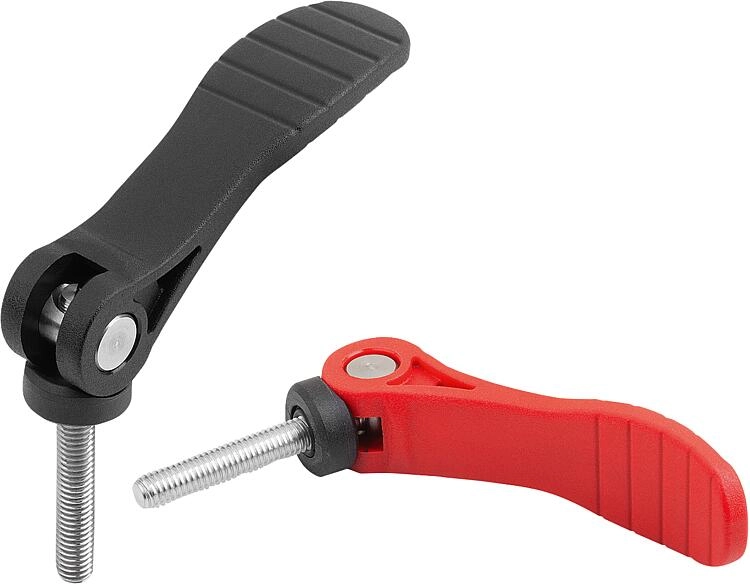

K2127 - Adjustable Cam Levers With Plastic Handle and Steel & Stainless Steel Thread M3-M10

K2127 - Adjustable Cam Levers With Plastic Handle and Steel & Stainless Steel Thread M3-M10

List view Grid view

Product description:
These cam levers have a technically optimised plastic thrust washer.
The thrust washer is made of a special high-performance plastic that guarantees very good wear and creep resistance.

Material:
Handle PA 6.6 fibreglass reinforced plastic
Thrust washer high performance carbon-fibre reinforced thermoplastic.
Hinge pin stainless steel 1.4305.
Stud steel, grade 5.8 or stainless steel 1.4305.

Version:
Grip black or traffic red RAL3020.
Thrust washer black.
Hinge pin bright.
Stud blue-passivated or bright stainless steel.

Note:
Adjustable cam levers are used if the position of the lever relative to the axis of tension only permits one specific position (interference circle). The exact position of the lever is adjusted using a screwdriver on the fine thread setscrew.
Plastics are subject to creeping under load (retardation).

Accessory:
For slightly curved contact faces, a stainless steel washer K2130 can also be ordered.
This washer can be mounted between the thrust washer and the contact face.

Drawing reference:
1) setscrew for fine adjustment of lever

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

	Hand Force FH (N)	A	A1	B	B1	Clamping force F (kN)	D	D1	D2	H	H1	L	Travel S	Price (Exc. Tax)	Stock
Filters
K2127.2521110X40 View product	170	100	110	33	24.2	5	M10	25	11	16.3	27.9	40	1.5	£9.64	0
K2127.15218406X40 View product	125	71.5	79.6	22	16	2.5	M6	16	9	14	23.2	40	1.15	£7.71	0
K2127.15218406X50 View product	125	71.5	79.6	22	16	2.5	M6	16	9	14	23.2	50	1.15	£7.71	0
K2127.25318408X50 View product	170	100	110	33	24.2	5	M8	25	11	16.3	27.9	50	1.5	£13.55	0
K2127.2521108X50 View product	170	100	110	33	24.2	5	M8	25	11	16.3	27.9	50	1.5	£9.64	0
K2127.25218408X25 View product	170	100	110	33	24.2	5	M8	25	11	16.3	27.9	25	1.5	£8.47	0
K2127.25318410X25 View product	170	100	110	33	24.2	5	M10	25	11	16.3	27.9	25	1.5	£12.69	0
K2127.2521110X25 View product	170	100	110	33	24.2	5	M10	25	11	16.3	27.9	25	1.5	£9.26	2
K2127.25218408X30 View product	170	100	110	33	24.2	5	M8	25	11	16.3	27.9	30	1.5	£8.47	0
K2127.25318410X30 View product	170	100	110	33	24.2	5	M10	25	11	16.3	27.9	30	1.5	£12.69	0
K2127.25218408X40 View product	170	100	110	33	24.2	5	M8	25	11	16.3	27.9	40	1.5	£8.81	0
K2127.25318410X40 View product	170	100	110	33	24.2	5	M10	25	11	16.3	27.9	40	1.5	£13.55	0
K2127.2521110X30 View product	170	100	110	33	24.2	5	M10	25	11	16.3	27.9	30	1.5	£9.26	0
K2127.25218408X50 View product	170	100	110	33	24.2	5	M8	25	11	16.3	27.9	50	1.5	£8.81	0
K2127.25318410X50 View product	170	100	110	33	24.2	5	M10	25	11	16.3	27.9	50	1.5	£13.55	0
K2127.25218410X25 View product	170	100	110	33	24.2	5	M10	25	11	16.3	27.9	25	1.5	£8.47	0
K2127.25318408X40 View product	170	100	110	33	24.2	5	M8	25	11	16.3	27.9	40	1.5	£13.55	0
K2127.25218410X30 View product	170	100	110	33	24.2	5	M10	25	11	16.3	27.9	30	1.5	£8.47	0
K2127.25218410X40 View product	170	100	110	33	24.2	5	M10	25	11	16.3	27.9	40	1.5	£8.81	0
K2127.2521110X50 View product	170	100	110	33	24.2	5	M10	25	11	16.3	27.9	50	1.5	£9.64	0
K2127.25218410X50 View product	170	100	110	33	24.2	5	M10	25	11	16.3	27.9	50	1.5	£8.81	0
K2127.1531105X20 View product	125	71.5	79.6	22	16	2.5	M5	16	9	14	23.2	20	1.15	£11.84	0
K2127.15318405X20 View product	125	71.5	79.6	22	16	2.5	M5	16	9	14	23.2	20	1.15	£10.83	0
K2127.1531105X30 View product	125	71.5	79.6	22	16	2.5	M5	16	9	14	23.2	30	1.15	£11.84	0
K2127.15318405X30 View product	125	71.5	79.6	22	16	2.5	M5	16	9	14	23.2	30	1.15	£10.83	0
K2127.1531105X40 View product	125	71.5	79.6	22	16	2.5	M5	16	9	14	23.2	40	1.15	£12.67	0
K2127.1531105X50 View product	125	71.5	79.6	22	16	2.5	M5	16	9	14	23.2	50	1.15	£12.67	0
K2127.1531106X20 View product	125	71.5	79.6	22	16	2.5	M6	16	9	14	23.2	20	1.15	£11.84	0
K2127.1531106X30 View product	125	71.5	79.6	22	16	2.5	M6	16	9	14	23.2	30	1.15	£11.84	0
K2127.1531106X40 View product	125	71.5	79.6	22	16	2.5	M6	16	9	14	23.2	40	1.15	£12.67	0
K2127.1531106X50 View product	125	71.5	79.6	22	16	2.5	M6	16	9	14	23.2	50	1.15	£12.67	2
K2127.2531108X25 View product	170	100	110	33	24.2	5	M8	25	11	16.3	27.9	25	1.5	£13.89	0
K2127.2531110X50 View product	170	100	110	33	24.2	5	M10	25	11	16.3	27.9	50	1.5	£14.84	0
K2127.1521105X30 View product	125	71.5	79.6	22	16	2.5	M5	16	9	14	23.2	30	1.15	£7.89	0
K2127.1521105X40 View product	125	71.5	79.6	22	16	2.5	M5	16	9	14	23.2	40	1.15	£8.44	0
K2127.1521105X50 View product	125	71.5	79.6	22	16	2.5	M5	16	9	14	23.2	50	1.15	£8.44	9
K2127.2531108X30 View product	170	100	110	33	24.2	5	M8	25	11	16.3	27.9	30	1.5	£13.89	2
K2127.2531108X40 View product	170	100	110	33	24.2	5	M8	25	11	16.3	27.9	40	1.5	£14.84	0
K2127.1521106X20 View product	125	71.5	79.6	22	16	2.5	M6	16	9	14	23.2	20	1.15	£7.89	0
K2127.2531108X50 View product	170	100	110	33	24.2	5	M8	25	11	16.3	27.9	50	1.5	£14.84	0
K2127.15318405X40 View product	125	71.5	79.6	22	16	2.5	M5	16	9	14	23.2	40	1.15	£11.59	0
K2127.1521106X30 View product	125	71.5	79.6	22	16	2.5	M6	16	9	14	23.2	30	1.15	£7.89	0
K2127.2531110X25 View product	170	100	110	33	24.2	5	M10	25	11	16.3	27.9	25	1.5	£13.89	12
K2127.2531110X30 View product	170	100	110	33	24.2	5	M10	25	11	16.3	27.9	30	1.5	£13.89	0
K2127.15318405X50 View product	125	71.5	79.6	22	16	2.5	M5	16	9	14	23.2	50	1.15	£11.59	0
K2127.2531110X40 View product	170	100	110	33	24.2	5	M10	25	11	16.3	27.9	40	1.5	£14.84	0
K2127.1521106X40 View product	125	71.5	79.6	22	16	2.5	M6	16	9	14	23.2	40	1.15	£8.44	0
K2127.15318406X20 View product	125	71.5	79.6	22	16	2.5	M6	16	9	14	23.2	20	1.15	£10.83	0
