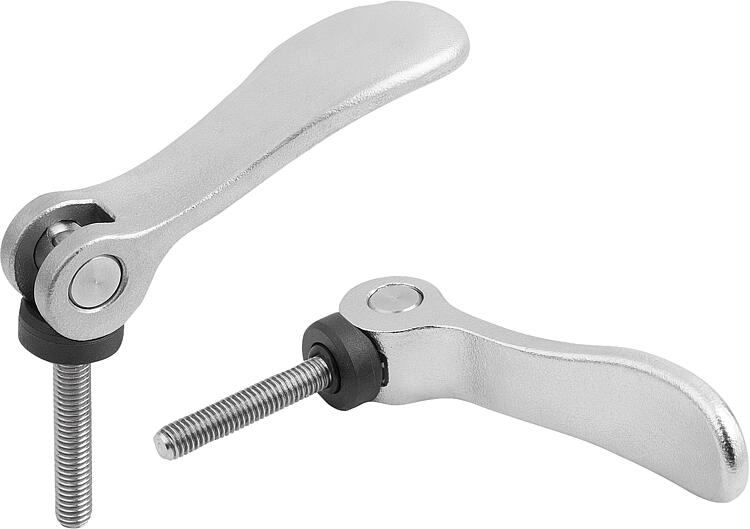

K2126 - Adjustable Cam Levers With Stainless Steel Handle & Stainless Steel Thread M3-M10

K2126 - Adjustable Cam Levers With Stainless Steel Handle & Stainless Steel Thread M3-M10

List view Grid view

Product description:
These cam levers have a technically optimised plastic thrust washer.
The thrust washer is made of a special high-performance plastic that guarantees very good wear and creep resistance.

Material:
Handle stainless steel 1.4308.
Thrust washer high performance carbon-fibre reinforced thermoplastic.
Hinge pin and stud stainless steel 1.4305.

Version:
Handle electropolished or abrasive blasted.
Thrust washer, black.
Hinge pin and stud bright.

Note:
Adjustable cam levers are used if the position of the lever relative to the axis of tension only permits one specific position (interference circle). The exact position of the lever is adjusted using a screwdriver on the fine thread setscrew.
Plastics are subject to creeping under load (retardation).

Accessory:
For slightly curved contact faces, a stainless steel washer K2130 can also be ordered.
This washer can be mounted between the thrust washer and the contact face.

Drawing reference:
1) setscrew for fine adjustment of lever

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

	Hand Force FH (N)	A	A1	B	B1	Clamping force F (kN)	D	D1	D2	H	H1	L	Surface Body finish	Travel S	Price (Exc. Tax)	Stock
Filters
K2126.7512303X10 View product	50	22	27.5	13.8	11.5	0.5	M3	10.7	6	9	13.5	10	Blasted	1	£17.58	0
K2126.7512303X15 View product	50	22	27.5	13.8	11.5	0.5	M3	10.7	6	9	13.5	15	Blasted	1	£17.58	0
K2126.7512303X30 View product	50	22	27.5	13.8	11.5	0.5	M3	10.7	6	9	13.5	30	Blasted	1	£17.58	0
K2126.8512303X10 View product	45	28	33.5	14.4	11.5	0.6	M3	10.7	6	9	13.5	10	Blasted	1	£17.58	0
K2126.8512303X15 View product	45	28	33.5	14.4	11.5	0.6	M3	10.7	6	9	13.5	15	Blasted	1	£17.58	0
K2126.8512303X30 View product	45	28	33.5	14.4	11.5	0.6	M3	10.7	6	9	13.5	30	Blasted	1	£17.58	0
K2126.9512303X10 View product	90	36.2	41.7	14.4	11.5	1.5	M3	10.7	6	9	13.5	10	Blasted	1	£17.58	0
K2126.9512303X15 View product	90	36.2	41.7	14.4	11.5	1.5	M3	10.7	6	9	13.5	15	Blasted	1	£17.58	0
K2126.9512303X30 View product	90	36.2	41.7	14.4	11.5	1.5	M3	10.7	6	9	13.5	30	Blasted	1	£17.58	0
K2126.7512003X10 View product	50	22	27.5	13.8	11.5	0.5	M3	10.7	6	9	13.5	10	Electropolished	1	£21.41	0
K2126.7512003X15 View product	50	22	27.5	13.8	11.5	0.5	M3	10.7	6	9	13.5	15	Electropolished	1	£21.41	0
K2126.8512304X15 View product	45	28	33.5	14.4	11.5	0.6	M4	10.7	6	9	13.5	15	Blasted	1	£17.58	0
K2126.0512005X20 View product	100	52.3	59.1	18	13	2.5	M5	13.8	8	11.4	17.2	20	Electropolished	1	£22.78	0
K2126.7512003X30 View product	50	22	27.5	13.8	11.5	0.5	M3	10.7	6	9	13.5	30	Electropolished	1	£21.41	0
K2126.8512304X30 View product	45	28	33.5	14.4	11.5	0.6	M4	10.7	6	9	13.5	30	Blasted	1	£17.58	0
K2126.0512005X30 View product	100	52.3	59.1	18	13	2.5	M5	13.8	8	11.4	17.2	30	Electropolished	1	£22.78	0
K2126.8512003X10 View product	45	28	33.5	14.4	11.5	0.6	M3	10.7	6	9	13.5	10	Electropolished	1	£21.41	0
K2126.9512304X10 View product	90	36.2	41.7	14.4	11.5	1.5	M4	10.7	6	9	13.5	10	Blasted	1	£17.58	0
K2126.0512005X40 View product	100	52.3	59.1	18	13	2.5	M5	13.8	8	11.4	17.2	40	Electropolished	1	£23.60	0
K2126.8512003X15 View product	45	28	33.5	14.4	11.5	0.6	M3	10.7	6	9	13.5	15	Electropolished	1	£21.41	0
K2126.2512310X30 View product	350	96	108	33.3	24	8	M10	25	11	18.3	28.8	30	Blasted	1.5	£29.86	0
K2126.9512304X15 View product	90	36.2	41.7	14.4	11.5	1.5	M4	10.7	6	9	13.5	15	Blasted	1	£17.58	0
K2126.0512005X50 View product	100	52.3	59.1	18	13	2.5	M5	13.8	8	11.4	17.2	50	Electropolished	1	£23.60	0
K2126.8512003X30 View product	45	28	33.5	14.4	11.5	0.6	M3	10.7	6	9	13.5	30	Electropolished	1	£21.41	0
K2126.2512310X40 View product	350	96	108	33.3	24	8	M10	25	11	18.3	28.8	40	Blasted	1.5	£30.75	0
K2126.9512304X30 View product	90	36.2	41.7	14.4	11.5	1.5	M4	10.7	6	9	13.5	30	Blasted	1	£17.58	0
K2126.1512005X20 View product	120	70.4	79.2	21.5	15	4	M5	16	9	14.7	22.2	20	Electropolished	1.2	£26.77	3
K2126.2512310X50 View product	350	96	108	33.3	24	8	M10	25	11	18.3	28.8	50	Blasted	1.5	£30.75	0
K2126.9512003X10 View product	90	36.2	41.7	14.4	11.5	1.5	M3	10.7	6	9	13.5	10	Electropolished	1	£21.41	0
K2126.1512005X30 View product	120	70.4	79.2	21.5	15	4	M5	16	9	14.7	22.2	30	Electropolished	1.2	£26.77	0
K2126.0512004X15 View product	100	52.3	59.1	18	13	2.5	M4	13.8	8	11.4	17.2	15	Electropolished	1	£22.78	0
K2126.2512010X25 View product	350	96	108	33.3	24	8	M10	25	11	18.3	28.8	25	Electropolished	1.5	£36.35	0
K2126.9512003X15 View product	90	36.2	41.7	14.4	11.5	1.5	M3	10.7	6	9	13.5	15	Electropolished	1	£21.41	0
K2126.1512005X40 View product	120	70.4	79.2	21.5	15	4	M5	16	9	14.7	22.2	40	Electropolished	1.2	£27.75	0
K2126.0512004X20 View product	100	52.3	59.1	18	13	2.5	M4	13.8	8	11.4	17.2	20	Electropolished	1	£22.78	0
K2126.2512010X30 View product	350	96	108	33.3	24	8	M10	25	11	18.3	28.8	30	Electropolished	1.5	£36.35	0
K2126.9512003X30 View product	90	36.2	41.7	14.4	11.5	1.5	M3	10.7	6	9	13.5	30	Electropolished	1	£21.41	0
K2126.1512005X50 View product	120	70.4	79.2	21.5	15	4	M5	16	9	14.7	22.2	50	Electropolished	1.2	£27.75	0
K2126.2512010X40 View product	350	96	108	33.3	24	8	M10	25	11	18.3	28.8	40	Electropolished	1.5	£37.43	0
K2126.0512004X30 View product	100	52.3	59.1	18	13	2.5	M4	13.8	8	11.4	17.2	30	Electropolished	1	£22.78	0
K2126.0512304X15 View product	100	52.3	59.1	18	13	2.5	M4	13.8	8	11.4	17.2	15	Blasted	1	£18.73	0
K2126.1512306X20 View product	120	70.4	79.2	21.5	15	4	M6	16	9	14.7	22.2	20	Blasted	1.2	£22.01	0
K2126.2512010X50 View product	350	96	108	33.3	24	8	M10	25	11	18.3	28.8	50	Electropolished	1.5	£37.43	0
K2126.7512004X10 View product	50	22	27.5	13.8	11.5	0.5	M4	10.7	6	9	13.5	10	Electropolished	1	£21.41	0
K2126.0512304X20 View product	100	52.3	59.1	18	13	2.5	M4	13.8	8	11.4	17.2	20	Blasted	1	£18.73	0
K2126.1512306X30 View product	120	70.4	79.2	21.5	15	4	M6	16	9	14.7	22.2	30	Blasted	1.2	£22.01	0
K2126.0512304X30 View product	100	52.3	59.1	18	13	2.5	M4	13.8	8	11.4	17.2	30	Blasted	1	£18.73	0
K2126.7512004X15 View product	50	22	27.5	13.8	11.5	0.5	M4	10.7	6	9	13.5	15	Electropolished	1	£21.41	0
