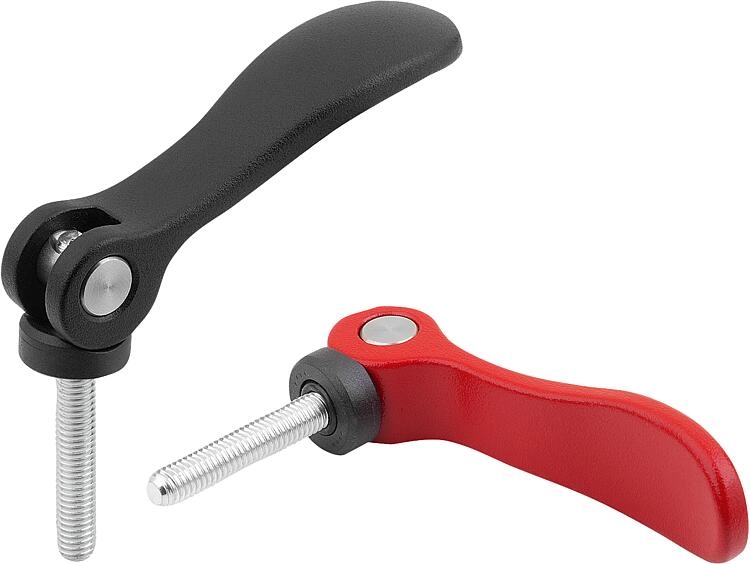

K2125 - Adjustable Cam Levers With Aluminium Handles Steel & Stainless Steel Threads M3-M10

K2125 - Adjustable Cam Levers With Aluminium Handles Steel & Stainless Steel Threads M3-M10

List view Grid view

Product description:
These cam levers have a technically optimised plastic thrust washer.
The thrust washer is made of a special high-performance plastic that guarantees very good wear and creep resistance.

Material:
Handle cast aluminium EN AC-46200.
Thrust washer high performance carbon-fibre reinforced thermoplastic.
Hinge pin steel, grade 5.8 or stainless steel 1.4305.
Stud steel, grade 5.8 or stainless steel 1.4305.

Version:
Lever powder-coated black fine structured or traffic red fine structured.
Thrust washer, black.
Hinge pin, stud steel, blue passivated or bright stainless steel.

Note:
Adjustable cam levers are used if the position of the lever relative to the axis of tension only permits one specific position (interference circle). The exact position of the lever is adjusted using a screwdriver on the fine thread setscrew.
Plastics are subject to creeping under load (retardation).

Drawing reference:
1) setscrew for fine adjustment of lever

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

	A	A1	B	B1	Clamping force F (kN)	D	D1	D2	H	H1	Hand force FH N	L	Travel S	Price (Exc. Tax)	Stock
Filters
K2125.0511104X15 View product	52.3	59.1	18	13	2.5	M4	13.8	8	11.4	17.2	100	15	1	£13.34	0
K2125.0511104X20 View product	52.3	59.1	18	13	2.5	M4	13.8	8	11.4	17.2	100	20	1	£13.34	0
K2125.0511104X30 View product	52.3	59.1	18	13	2.5	M4	13.8	8	11.4	17.2	100	30	1	£13.34	0
K2125.0511105X20 View product	52.3	59.1	18	13	2.5	M5	13.8	8	11.4	17.2	100	20	1	£13.34	0
K2125.0511105X30 View product	52.3	59.1	18	13	2.5	M5	13.8	8	11.4	17.2	100	30	1	£13.34	0
K2125.0511105X40 View product	52.3	59.1	18	13	2.5	M5	13.8	8	11.4	17.2	100	40	1	£14.16	6
K2125.0511105X50 View product	52.3	59.1	18	13	2.5	M5	13.8	8	11.4	17.2	100	50	1	£14.16	0
K2125.1511105X20 View product	70.4	79.2	21.5	15	4	M5	16	9	14.7	22.2	120	20	1.2	£14.82	8
K2125.1511105X30 View product	70.4	79.2	21.5	15	4	M5	16	9	14.7	22.2	120	30	1.2	£14.82	0
K2125.1511105X40 View product	70.4	79.2	21.5	15	4	M5	16	9	14.7	22.2	120	40	1.2	£15.83	0
K2125.7511103X30 View product	22	27.5	13.8	11.5	0.5	M3	10.7	6	9	13.5	50	30	1	£12.76	0
K2125.1511405X40 View product	70.4	79.2	21.5	15	4	M5	16	9	14.7	22.2	120	40	1.2	£15.83	0
K2125.1511105X50 View product	70.4	79.2	21.5	15	4	M5	16	9	14.7	22.2	120	50	1.2	£15.83	0
K2125.1511405X50 View product	70.4	79.2	21.5	15	4	M5	16	9	14.7	22.2	120	50	1.2	£15.83	0
K2125.7511104X10 View product	22	27.5	13.8	11.5	0.5	M4	10.7	6	9	13.5	50	10	1	£12.76	0
K2125.1511406X20 View product	70.4	79.2	21.5	15	4	M6	16	9	14.7	22.2	120	20	1.2	£14.82	0
K2125.1511106X20 View product	70.4	79.2	21.5	15	4	M6	16	9	14.7	22.2	120	20	1.2	£14.82	0
K2125.7511104X15 View product	22	27.5	13.8	11.5	0.5	M4	10.7	6	9	13.5	50	15	1	£12.76	0
K2125.1511406X30 View product	70.4	79.2	21.5	15	4	M6	16	9	14.7	22.2	120	30	1.2	£14.82	0
K2125.1511106X30 View product	70.4	79.2	21.5	15	4	M6	16	9	14.7	22.2	120	30	1.2	£14.82	0
K2125.7511104X30 View product	22	27.5	13.8	11.5	0.5	M4	10.7	6	9	13.5	50	30	1	£12.76	0
K2125.1511406X40 View product	70.4	79.2	21.5	15	4	M6	16	9	14.7	22.2	120	40	1.2	£15.83	0
K2125.1511106X40 View product	70.4	79.2	21.5	15	4	M6	16	9	14.7	22.2	120	40	1.2	£15.83	0
K2125.8511103X10 View product	28	33.5	14.4	11.5	0.6	M3	10.7	6	9	13.5	45	10	1	£12.76	0
K2125.1511406X50 View product	70.4	79.2	21.5	15	4	M6	16	9	14.7	22.2	120	50	1.2	£15.83	0
K2125.8511404X30 View product	28	33.5	14.4	11.5	0.6	M4	10.7	6	9	13.5	45	30	1	£12.76	0
K2125.1511106X50 View product	70.4	79.2	21.5	15	4	M6	16	9	14.7	22.2	120	50	1.2	£15.83	0
K2125.8511103X15 View product	28	33.5	14.4	11.5	0.6	M3	10.7	6	9	13.5	45	15	1	£12.76	0
K2125.2511408X25 View product	96	108	33.3	24	8	M8	25	11	18.3	28.8	350	25	1.5	£16.33	0
K2125.2501108X50 View product	96	108	33.3	24	8	M8	25	11	18.3	28.8	350	50	1.5	£11.28	0
K2125.9511403X10 View product	36.2	41.7	14.4	11.5	1.5	M3	10.7	6	9	13.5	90	10	1	£12.76	0
K2125.0501404X30 View product	52.3	59.1	18	13	2.5	M4	13.8	8	11.4	17.2	100	30	1	£9.37	0
K2125.2511108X25 View product	96	108	33.3	24	8	M8	25	11	18.3	28.8	350	25	1.5	£16.33	0
K2125.2511408X30 View product	96	108	33.3	24	8	M8	25	11	18.3	28.8	350	30	1.5	£16.33	0
K2125.2501110X25 View product	96	108	33.3	24	8	M10	25	11	18.3	28.8	350	25	1.5	£10.90	0
K2125.8511103X30 View product	28	33.5	14.4	11.5	0.6	M3	10.7	6	9	13.5	45	30	1	£12.76	0
K2125.9511403X15 View product	36.2	41.7	14.4	11.5	1.5	M3	10.7	6	9	13.5	90	15	1	£12.76	0
K2125.0501405X20 View product	52.3	59.1	18	13	2.5	M5	13.8	8	11.4	17.2	100	20	1	£9.37	0
K2125.2511408X40 View product	96	108	33.3	24	8	M8	25	11	18.3	28.8	350	40	1.5	£17.44	0
K2125.2511108X30 View product	96	108	33.3	24	8	M8	25	11	18.3	28.8	350	30	1.5	£16.33	0
K2125.2501110X30 View product	96	108	33.3	24	8	M10	25	11	18.3	28.8	350	30	1.5	£10.90	8
K2125.9511403X30 View product	36.2	41.7	14.4	11.5	1.5	M3	10.7	6	9	13.5	90	30	1	£12.76	0
K2125.7501404X15 View product	22	27.5	13.8	11.5	0.5	M4	10.7	6	9	13.5	50	15	1	£9.03	0
K2125.8511104X10 View product	28	33.5	14.4	11.5	0.6	M4	10.7	6	9	13.5	45	10	1	£12.76	0
K2125.0501405X30 View product	52.3	59.1	18	13	2.5	M5	13.8	8	11.4	17.2	100	30	1	£9.37	0
K2125.2511408X50 View product	96	108	33.3	24	8	M8	25	11	18.3	28.8	350	50	1.5	£17.44	0
K2125.2511108X40 View product	96	108	33.3	24	8	M8	25	11	18.3	28.8	350	40	1.5	£17.44	0
K2125.2501110X40 View product	96	108	33.3	24	8	M10	25	11	18.3	28.8	350	40	1.5	£11.28	6
