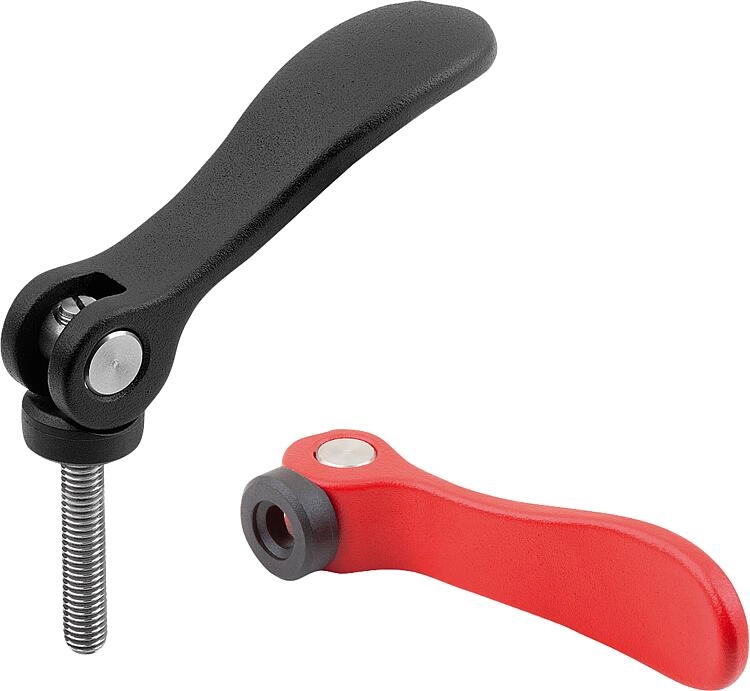

K2120 - Cam Levers With Aluminium Handles Steel & Stainless Steel Threads M3-M10

K2120 - Cam Levers With Aluminium Handles Steel & Stainless Steel Threads M3-M10

List view Grid view

Product Description:
These cam levers have a technically optimised plastic thrust washer.
The thrust washer is made of a special high-performance plastic that guarantees very good wear and creep resistance.

Material:
Handle cast aluminium EN AC-46200.
Thrust washer high performance carbon-fibre reinforced thermoplastic.
Hinge pin steel, grade 5.8 or stainless steel 1.4305.
Stud steel, grade 5.8 or stainless steel 1.4305.

Version:
Lever powder-coated black fine structured or traffic red fine structured.
Thrust washer, black.
Hinge pin, stud steel, blue passivated or bright stainless steel.

Note:
Plastics are subject to creeping under load (retardation).

Accessory:
For slightly curved contact faces, a stainless steel washer K2130 can also be ordered.
This washer can be mounted between the thrust washer and the contact face.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

	Hand Force FH (N)	A	A1	B	B1	Clamping force F (kN)	D	D1	D2	H	H1	L	Male/Female	Travel S	Price (Exc. Tax)	Stock
Filters
K2120.2501410X25 View product	350	96	108	33.3	24	8	M10	25	11	18.3	28.8	25	Male	1.5	£9.06	0
K2120.2501110X50 View product	350	96	108	33.3	24	8	M10	25	11	18.3	28.8	50	Male	1.5	£9.72	19
K2120.9511104X30 View product	90	36.2	41.7	14.4	11.5	1.5	M4	10.7	6	9	13.5	30	Male	1	£10.60	0
K2120.2501110X30 View product	350	96	108	33.3	24	8	M10	25	11	18.3	28.8	30	Male	1.5	£9.06	0
K2120.1501105X20 View product	120	70.4	79.2	21.5	15	4	M5	16	9	14.7	22.2	20	Male	1.2	£8.23	4
K2120.8511104X30 View product	45	28	33.5	14.4	11.5	0.6	M4	10.7	6	9	13.5	30	Male	1	£10.60	0
K2120.8511104X15 View product	45	28	33.5	14.4	11.5	0.6	M4	10.7	6	9	13.5	15	Male	1	£10.60	0
K2120.8501403X10 View product	45	28	33.5	14.4	11.5	0.6	M3	10.7	6	9	13.5	10	Male	1	£7.42	0
K2120.8511104X10 View product	45	28	33.5	14.4	11.5	0.6	M4	10.7	6	9	13.5	10	Male	1	£10.60	0
K2120.7501403X30 View product	50	22	27.5	13.8	11.5	0.5	M3	10.7	6	9	13.5	30	Male	1	£7.42	0
K2120.1511405 View product	120	70.4	79.2	21.5	15	4	M5	16	9	14.7	22.2	--	Female	1.2	£11.05	0
K2120.0511405 View product	100	52.3	59.1	18	13	2.5	M5	13.8	8	11.4	17.2	--	Female	1	£10.49	0
K2120.1511405X20 View product	120	70.4	79.2	21.5	15	4	M5	16	9	14.7	22.2	20	Male	1.2	£11.76	0
K2120.1511406X30 View product	120	70.4	79.2	21.5	15	4	M6	16	9	14.7	22.2	30	Male	1.2	£11.76	0
K2120.7511104X15 View product	50	22	27.5	13.8	11.5	0.5	M4	10.7	6	9	13.5	15	Male	1	£10.60	0
K2120.7501403X10 View product	50	22	27.5	13.8	11.5	0.5	M3	10.7	6	9	13.5	10	Male	1	£7.42	0
K2120.0511405X50 View product	100	52.3	59.1	18	13	2.5	M5	13.8	8	11.4	17.2	50	Male	1	£11.94	0
K2120.9501103X30 View product	90	36.2	41.7	14.4	11.5	1.5	M3	10.7	6	9	13.5	30	Male	1	£7.42	0
K2120.1511106X50 View product	120	70.4	79.2	21.5	15	4	M6	16	9	14.7	22.2	50	Male	1.2	£12.58	0
K2120.2511108X30 View product	350	96	108	33.3	24	8	M8	25	11	18.3	28.8	30	Male	1.5	£12.96	0
K2120.1511106X40 View product	120	70.4	79.2	21.5	15	4	M6	16	9	14.7	22.2	40	Male	1.2	£12.58	0
K2120.1501405 View product	120	70.4	79.2	21.5	15	4	M5	16	9	14.7	22.2	--	Female	1.2	£7.74	0
K2120.2511108X25 View product	350	96	108	33.3	24	8	M8	25	11	18.3	28.8	25	Male	1.5	£12.96	0
K2120.1511106X30 View product	120	70.4	79.2	21.5	15	4	M6	16	9	14.7	22.2	30	Male	1.2	£11.76	0
K2120.0511104X20 View product	100	52.3	59.1	18	13	2.5	M4	13.8	8	11.4	17.2	20	Male	1	£11.18	0
K2120.1511106X20 View product	120	70.4	79.2	21.5	15	4	M6	16	9	14.7	22.2	20	Male	1.2	£11.76	1
K2120.2501408X50 View product	350	96	108	33.3	24	8	M8	25	11	18.3	28.8	50	Male	1.5	£9.72	0
K2120.1511105X50 View product	120	70.4	79.2	21.5	15	4	M5	16	9	14.7	22.2	50	Male	1.2	£12.58	0
K2120.0511104X15 View product	100	52.3	59.1	18	13	2.5	M4	13.8	8	11.4	17.2	15	Male	1	£11.18	0
K2120.9501104X15 View product	90	36.2	41.7	14.4	11.5	1.5	M4	10.7	6	9	13.5	15	Male	1	£7.42	0
K2120.2501408X40 View product	350	96	108	33.3	24	8	M8	25	11	18.3	28.8	40	Male	1.5	£9.72	0
K2120.9501404X30 View product	90	36.2	41.7	14.4	11.5	1.5	M4	10.7	6	9	13.5	30	Male	1	£7.42	0
K2120.8501103X15 View product	45	28	33.5	14.4	11.5	0.6	M3	10.7	6	9	13.5	15	Male	1	£7.42	0
K2120.1511105X30 View product	120	70.4	79.2	21.5	15	4	M5	16	9	14.7	22.2	30	Male	1.2	£11.76	0
K2120.8501104X15 View product	45	28	33.5	14.4	11.5	0.6	M4	10.7	6	9	13.5	15	Male	1	£7.42	0
K2120.9501404X15 View product	90	36.2	41.7	14.4	11.5	1.5	M4	10.7	6	9	13.5	15	Male	1	£7.42	0
K2120.9511404X30 View product	90	36.2	41.7	14.4	11.5	1.5	M4	10.7	6	9	13.5	30	Male	1	£10.60	0
K2120.1511105X20 View product	120	70.4	79.2	21.5	15	4	M5	16	9	14.7	22.2	20	Male	1.2	£11.76	0
K2120.2501408X25 View product	350	96	108	33.3	24	8	M8	25	11	18.3	28.8	25	Male	1.5	£9.06	0
K2120.8501104X10 View product	45	28	33.5	14.4	11.5	0.6	M4	10.7	6	9	13.5	10	Male	1	£7.42	0
K2120.2511410X25 View product	350	96	108	33.3	24	8	M10	25	11	18.3	28.8	25	Male	1.5	£12.96	0
K2120.1501106X50 View product	120	70.4	79.2	21.5	15	4	M6	16	9	14.7	22.2	50	Male	1.2	£8.76	6
K2120.9511403X15 View product	90	36.2	41.7	14.4	11.5	1.5	M3	10.7	6	9	13.5	15	Male	1	£10.60	0
K2120.9511404X10 View product	90	36.2	41.7	14.4	11.5	1.5	M4	10.7	6	9	13.5	10	Male	1	£10.60	0
K2120.9511403X10 View product	90	36.2	41.7	14.4	11.5	1.5	M3	10.7	6	9	13.5	10	Male	1	£10.60	0
K2120.8501404X15 View product	45	28	33.5	14.4	11.5	0.6	M4	10.7	6	9	13.5	15	Male	1	£7.42	0
K2120.2501108X30 View product	350	96	108	33.3	24	8	M8	25	11	18.3	28.8	30	Male	1.5	£9.06	4
K2120.8511403X15 View product	45	28	33.5	14.4	11.5	0.6	M3	10.7	6	9	13.5	15	Male	1	£10.60	0
