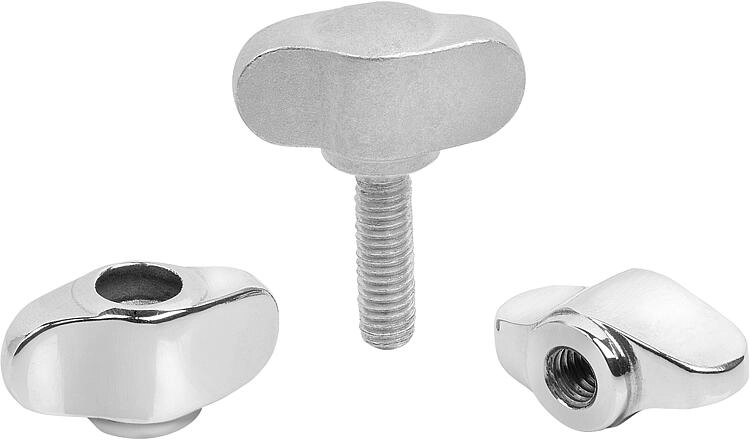

K2041 - Mini Wing Knobs In Stainless Steel & 316 Stainless Steel M4-M8

K2041 - Mini Wing Knobs In Stainless Steel & 316 Stainless Steel M4-M8

Product description:
The Miniwing wing grips is characterised by their ergonomic and compact design.
The materials used enable diverse applications including those with the highest demands on corrosion resistance.

Material:
Stainless steel 1.4308 or 1.4404.

Version:
Polished or blasted.

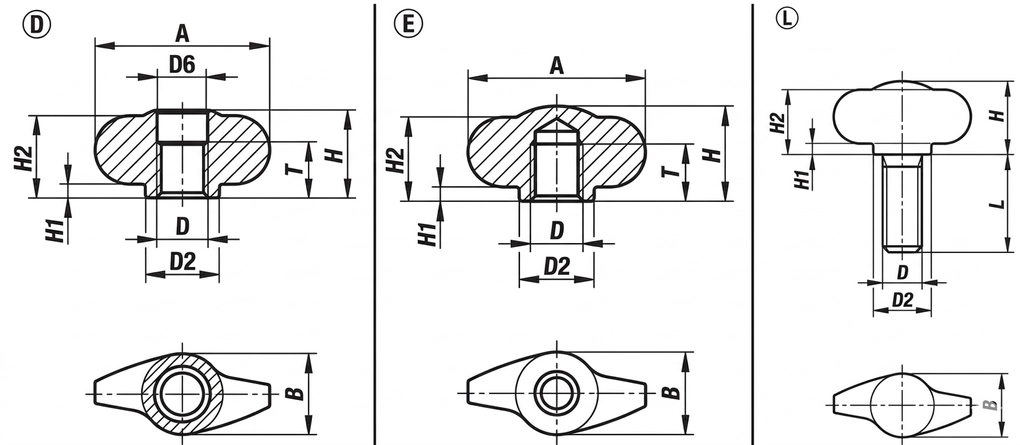

Drawing reference:
Form D: tapped through thread
Form E: tapped blind hole
Form L: external thread

Select your sizes

Line drawing placeholder

Move drawing here

	A	B	D	D2	D6	Form	H	H1	H2	L	Material	Surface finish body	T	Price (Exc. Tax)	Stock
Filters
K2041.5280421 View product	28	13	M4	11.8	--	E	15	2.25	13.25	--	316 Stainless Steel	Blasted	6	£7.88	0
K2041.4280421 View product	28	13	M4	11.8	8.1	D	14.1	2.25	13.25	--	316 Stainless Steel	Blasted	9	£7.88	0
K2041.4280422 View product	28	13	M4	11.8	8.1	D	14.1	2.25	13.25	--	316 Stainless Steel	polished	9	£9.36	0
K2041.5280422 View product	28	13	M4	11.8	--	E	15	2.25	13.25	--	316 Stainless Steel	polished	6	£9.36	0
K2041.6280421X8 View product	28	13	M4	11.8	--	L	15	2.25	13.25	8	316 Stainless Steel	Blasted	--	£9.60	0
K2041.6280422X8 View product	28	13	M4	11.8	--	L	15	2.25	13.25	8	316 Stainless Steel	polished	--	£10.98	0
K2041.5280521 View product	28	13	M5	11.8	--	E	15	2.25	13.25	--	316 Stainless Steel	Blasted	7.5	£7.88	0
K2041.4280521 View product	28	13	M5	11.8	8.1	D	14.1	2.25	13.25	--	316 Stainless Steel	Blasted	9	£7.88	0
K2041.4280522 View product	28	13	M5	11.8	8.1	D	14.1	2.25	13.25	--	316 Stainless Steel	polished	9	£9.36	0
K2041.5280522 View product	28	13	M5	11.8	--	E	15	2.25	13.25	--	316 Stainless Steel	polished	7.5	£9.36	0
K2041.6280521X10 View product	28	13	M5	11.8	--	L	15	2.25	13.25	10	316 Stainless Steel	Blasted	--	£9.60	0
K2041.6280522X10 View product	28	13	M5	11.8	--	L	15	2.25	13.25	10	316 Stainless Steel	polished	--	£10.98	0
K2041.6280521X15 View product	28	13	M5	11.8	--	L	15	2.25	13.25	15	316 Stainless Steel	Blasted	--	£9.60	0
K2041.6280522X15 View product	28	13	M5	11.8	--	L	15	2.25	13.25	15	316 Stainless Steel	polished	--	£10.98	0
K2041.6280521X20 View product	28	13	M5	11.8	--	L	15	2.25	13.25	20	316 Stainless Steel	Blasted	--	£9.60	0
K2041.6280522X20 View product	28	13	M5	11.8	--	L	15	2.25	13.25	20	316 Stainless Steel	polished	--	£10.98	0
K2041.5280621 View product	28	13	M6	11.8	--	E	15	2.25	13.25	--	316 Stainless Steel	Blasted	9	£7.88	0
K2041.4280621 View product	28	13	M6	11.8	8.1	D	14.1	2.25	13.25	--	316 Stainless Steel	Blasted	9	£7.88	0
K2041.4280622 View product	28	13	M6	11.8	8.1	D	14.1	2.25	13.25	--	316 Stainless Steel	polished	9	£9.36	0
K2041.5280622 View product	28	13	M6	11.8	--	E	15	2.25	13.25	--	316 Stainless Steel	polished	9	£9.36	0
K2041.6280621X10 View product	28	13	M6	11.8	--	L	15	2.25	13.25	10	316 Stainless Steel	Blasted	--	£10.44	0
K2041.6280622X10 View product	28	13	M6	11.8	--	L	15	2.25	13.25	10	316 Stainless Steel	polished	--	£11.94	0
K2041.6280621X15 View product	28	13	M6	11.8	--	L	15	2.25	13.25	15	316 Stainless Steel	Blasted	--	£10.44	0
K2041.6280622X15 View product	28	13	M6	11.8	--	L	15	2.25	13.25	15	316 Stainless Steel	polished	--	£11.94	0
K2041.6280621X20 View product	28	13	M6	11.8	--	L	15	2.25	13.25	20	316 Stainless Steel	Blasted	--	£10.44	0
K2041.6280622X20 View product	28	13	M6	11.8	--	L	15	2.25	13.25	20	316 Stainless Steel	polished	--	£11.94	0
K2041.6280621X25 View product	28	13	M6	11.8	--	L	15	2.25	13.25	25	316 Stainless Steel	Blasted	--	£10.44	0
K2041.6280622X25 View product	28	13	M6	11.8	--	L	15	2.25	13.25	25	316 Stainless Steel	polished	--	£11.94	0
K2041.6280621X30 View product	28	13	M6	11.8	--	L	15	2.25	13.25	30	316 Stainless Steel	Blasted	--	£10.44	0
K2041.6280622X30 View product	28	13	M6	11.8	--	L	15	2.25	13.25	30	316 Stainless Steel	polished	--	£11.94	0
K2041.4280821 View product	28	13	M8	11.8	8.1	D	14.1	2.25	13.25	--	316 Stainless Steel	Blasted	9	£7.88	0
K2041.5280821 View product	28	13	M8	11.8	--	E	15	2.25	13.25	--	316 Stainless Steel	Blasted	9	£7.88	0
K2041.5280822 View product	28	13	M8	11.8	--	E	15	2.25	13.25	--	316 Stainless Steel	polished	9	£9.36	0
K2041.4280822 View product	28	13	M8	11.8	8.1	D	14.1	2.25	13.25	--	316 Stainless Steel	polished	9	£9.36	0
K2041.6280821X20 View product	28	13	M8	11.8	--	L	15	2.25	13.25	20	316 Stainless Steel	Blasted	--	£11.30	0
K2041.6280822X20 View product	28	13	M8	11.8	--	L	15	2.25	13.25	20	316 Stainless Steel	polished	--	£12.92	0
K2041.6280821X25 View product	28	13	M8	11.8	--	L	15	2.25	13.25	25	316 Stainless Steel	Blasted	--	£11.30	0
K2041.6280822X25 View product	28	13	M8	11.8	--	L	15	2.25	13.25	25	316 Stainless Steel	polished	--	£12.92	0
K2041.6280821X30 View product	28	13	M8	11.8	--	L	15	2.25	13.25	30	316 Stainless Steel	Blasted	--	£11.30	0
K2041.6280822X30 View product	28	13	M8	11.8	--	L	15	2.25	13.25	30	316 Stainless Steel	polished	--	£12.92	0
K2041.6280821X40 View product	28	13	M8	11.8	--	L	15	2.25	13.25	40	316 Stainless Steel	Blasted	--	£11.30	0
K2041.6280822X40 View product	28	13	M8	11.8	--	L	15	2.25	13.25	40	316 Stainless Steel	polished	--	£12.92	0
K2041.4280411 View product	28	13	M4	11.8	8.1	D	14.1	2.25	13.25	--	Stainless Steel	Blasted	9	£4.92	0
K2041.5280411 View product	28	13	M4	11.8	--	E	15	2.25	13.25	--	Stainless Steel	Blasted	6	£4.92	0
K2041.4280412 View product	28	13	M4	11.8	8.1	D	14.1	2.25	13.25	--	Stainless Steel	polished	9	£8.12	0
K2041.5280412 View product	28	13	M4	11.8	--	E	15	2.25	13.25	--	Stainless Steel	polished	6	£8.12	0
K2041.6280411X8 View product	28	13	M4	11.8	--	L	15	2.25	13.25	8	Stainless Steel	Blasted	--	£7.38	0
K2041.6280412X8 View product	28	13	M4	11.8	--	L	15	2.25	13.25	8	Stainless Steel	polished	--	£9.98	0
