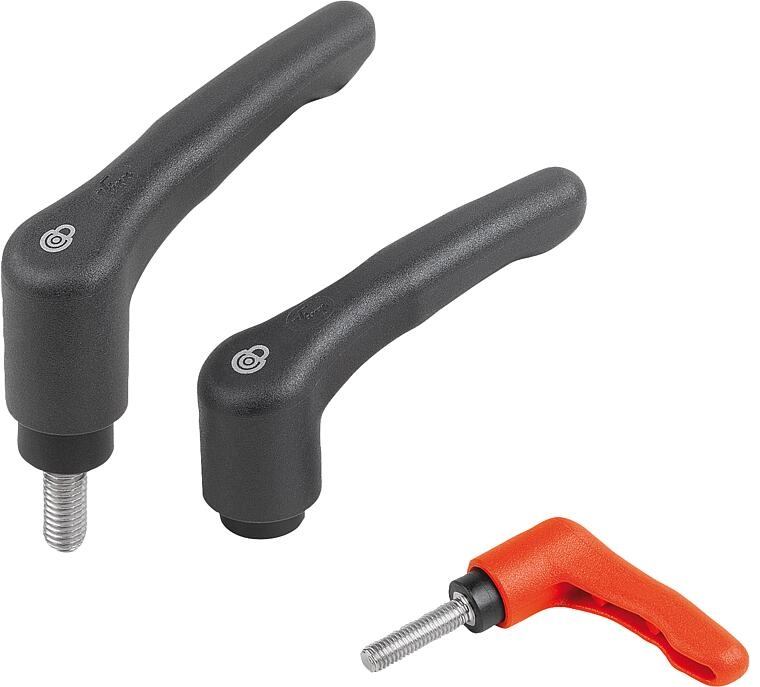

K1873 - Safety Lock Clamp Levers With Thermoplastic Handle And Stainless Steel Thread M4-M10

K1873 - Safety Lock Clamp Levers With Thermoplastic Handle And Stainless Steel Thread M4-M10

Product description:
Clamping levers with safety function prevent changes in the locking point through accidental opening or closing.
In the default position, the lever can be freely rotated and has no connection to the clamping point. The grip lever only engages when pushed down and the clamp can the loosened or tightened.
A spring sets the lever automatically into the default position when released.

Material:
Grip lever and insert made from reinforced thermoplastic.
Screw stainless steel

Version:
Stainless steel bright.

Advantages:
Protection against accidental opening or closing.
Closed grip contour without protruding edges.

Select your sizes

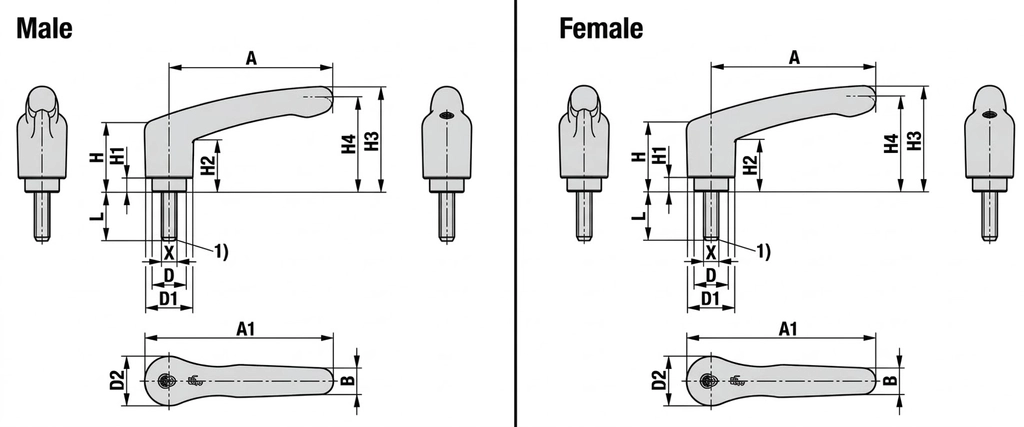

Line drawing placeholder

Move drawing here

	No. Of Teeth	A	A1	B	D	D1	D2	H	H1	H2	H3	H4	L	Male/Female	X	Price (Exc. Tax)	Stock
Filters
K1873.1041 View product	12	39.9	46.8	7.9	10	13.2	13.8	22.7	5	15.2	31.8	28.9	--	Female	M4	£8.42	0
K1873.10484 View product	12	39.9	46.8	7.9	10	13.2	13.8	22.7	5	15.2	31.8	28.9	--	Female	M4	£8.42	0
K1873.1041X10 View product	12	39.9	46.8	7.9	10	13.2	13.8	22.7	5	15.2	31.8	28.9	10	Male	M4	£8.66	0
K1873.10484X10 View product	12	39.9	46.8	7.9	10	13.2	13.8	22.7	5	15.2	31.8	28.9	10	Male	M4	£8.66	0
K1873.1041X15 View product	12	39.9	46.8	7.9	10	13.2	13.8	22.7	5	15.2	31.8	28.9	15	Male	M4	£8.66	0
K1873.10484X15 View product	12	39.9	46.8	7.9	10	13.2	13.8	22.7	5	15.2	31.8	28.9	15	Male	M4	£8.66	0
K1873.1041X20 View product	12	39.9	46.8	7.9	10	13.2	13.8	22.7	5	15.2	31.8	28.9	20	Male	M4	£8.66	0
K1873.10484X20 View product	12	39.9	46.8	7.9	10	13.2	13.8	22.7	5	15.2	31.8	28.9	20	Male	M4	£8.66	0
K1873.1051 View product	12	39.9	46.8	7.9	10	13.2	13.8	22.7	5	15.2	31.8	28.9	--	Female	M5	£8.42	0
K1873.10584 View product	12	39.9	46.8	7.9	10	13.2	13.8	22.7	5	15.2	31.8	28.9	--	Female	M5	£8.42	0
K1873.1051X10 View product	12	39.9	46.8	7.9	10	13.2	13.8	22.7	5	15.2	31.8	28.9	10	Male	M5	£8.66	0
K1873.10584X10 View product	12	39.9	46.8	7.9	10	13.2	13.8	22.7	5	15.2	31.8	28.9	10	Male	M5	£8.66	0
K1873.1051X15 View product	12	39.9	46.8	7.9	10	13.2	13.8	22.7	5	15.2	31.8	28.9	15	Male	M5	£8.66	0
K1873.10584X15 View product	12	39.9	46.8	7.9	10	13.2	13.8	22.7	5	15.2	31.8	28.9	15	Male	M5	£8.66	0
K1873.1051X20 View product	12	39.9	46.8	7.9	10	13.2	13.8	22.7	5	15.2	31.8	28.9	20	Male	M5	£8.66	0
K1873.10584X20 View product	12	39.9	46.8	7.9	10	13.2	13.8	22.7	5	15.2	31.8	28.9	20	Male	M5	£8.66	0
K1873.1051X25 View product	12	39.9	46.8	7.9	10	13.2	13.8	22.7	5	15.2	31.8	28.9	25	Male	M5	£8.66	0
K1873.10584X25 View product	12	39.9	46.8	7.9	10	13.2	13.8	22.7	5	15.2	31.8	28.9	25	Male	M5	£8.66	0
K1873.2051 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	--	Female	M5	£9.92	0
K1873.20584 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	--	Female	M5	£9.92	0
K1873.2051X10 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	10	Male	M5	£10.24	0
K1873.20584X10 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	10	Male	M5	£10.24	0
K1873.2051X15 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	15	Male	M5	£10.24	0
K1873.20584X15 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	15	Male	M5	£10.24	0
K1873.2051X20 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	20	Male	M5	£10.24	0
K1873.20584X20 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	20	Male	M5	£10.24	0
K1873.2051X25 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	25	Male	M5	£10.24	0
K1873.20584X25 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	25	Male	M5	£10.24	0
K1873.2051X30 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	30	Male	M5	£10.24	0
K1873.20584X30 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	30	Male	M5	£10.24	0
K1873.2051X40 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	40	Male	M5	£10.38	0
K1873.20584X40 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	40	Male	M5	£10.38	0
K1873.2061 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	--	Female	M6	£9.92	0
K1873.20684 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	--	Female	M6	£9.92	0
K1873.2061X10 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	10	Male	M6	£10.24	0
K1873.20684X10 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	10	Male	M6	£10.24	0
K1873.2061X15 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	15	Male	M6	£10.24	0
K1873.20684X15 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	15	Male	M6	£10.24	0
K1873.2061X20 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	20	Male	M6	£10.24	0
K1873.20684X20 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	20	Male	M6	£10.24	0
K1873.2061X25 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	25	Male	M6	£10.24	0
K1873.20684X25 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	25	Male	M6	£10.24	0
K1873.2061X30 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	30	Male	M6	£10.24	0
K1873.20684X30 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	30	Male	M6	£10.24	0
K1873.2061X40 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	40	Male	M6	£10.38	0
K1873.20684X40 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	40	Male	M6	£10.38	0
K1873.2081 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	--	Female	M8	£10.81	0
K1873.20884 View product	12	65.2	75	10.5	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	--	Female	M8	£9.92	0
