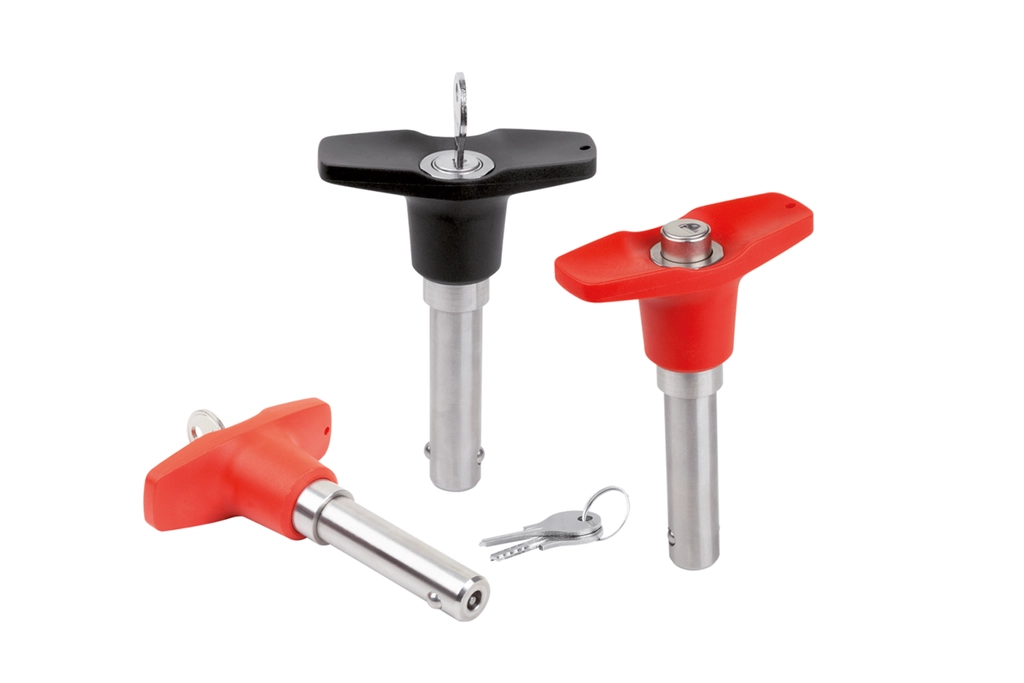

K1804 - Lockable T-Grip Ball Lock Pins In Plastic & Stainless Steel

K1804 - Lockable T-Grip Ball Lock Pins In Plastic & Stainless Steel

Product description:
Ball lock pins are used for easy fastening or joining of components. The lockable type prevents unauthorised loosening or connections.

The two balls are disengaged by opening the cylinder lock with a key and the pin can be slipped into holes in the workpieces. When the cylinder lock is pressed in manually, the balls lock and the connection is secure. The balls can only be disengaged using a matching key.

Material:
Grip, thermoplastic.
Steel parts stainless steel.
Lock Zamac.
Key galvanized steel.

Version:
Grip black grey, or traffic red RAL 3020.
Stainless steel bright.

Note:
Shear force double shear (F) = S · τ aB max.

The values given for the shear force are the theoretical breaking load. These are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for information purposes only and do not constitute a legally binding assurance of properties.

The load values have been calculated in accordance with DIN 50141. Each user must determine individually whether the ball lock pin is suitable for the respective application.

Different materials in which the ball lock pins are used, weather conditions and wear can influence the determined values.

The cylinder lock is a single-key system. All cylinder locks can be opened using the same key. The lockable ball lock pins are supplied with two keys.

On request:
Other versions.

Accessory:
Locating bushings for ball lock pins K0724
Safety spiral cable K0367
Retaining cable with loop K0367
Key ring K0367

Select your sizes

Line drawing placeholder

Move drawing here

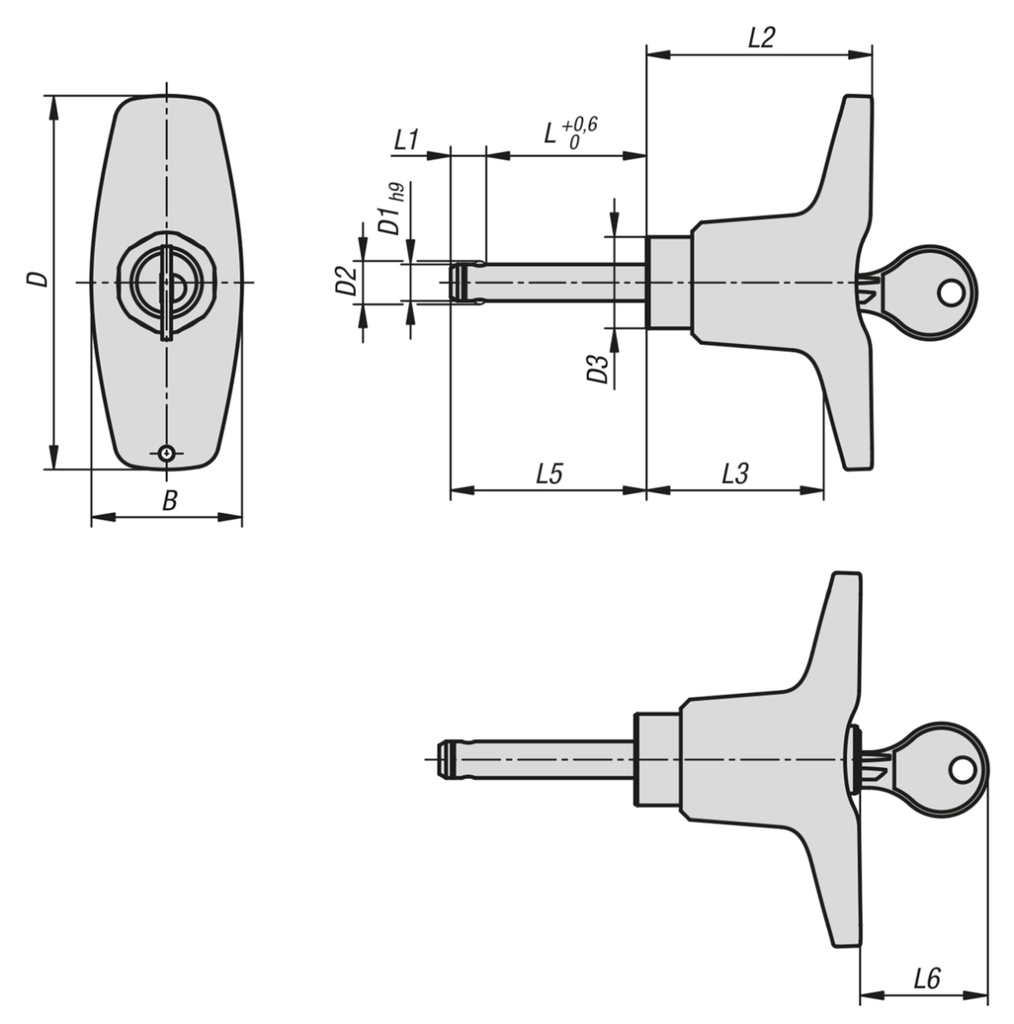

	B	Component Colour	D	D1	D2	D3	L	L1	L2	L3	L5	L6	Receiving Hole H11	Shearing force double shear max.kN	Price (Exc. Tax)	Stock
Filters
K1804.208210020 View product	33	Black	81.8	10	12	20	20	8.9	49.4	38.8	28.9	28	10	60	£45.04	0
K1804.20848210020 View product	33	Red	81.8	10	12	20	20	8.9	49.4	38.8	28.9	28	10	60	£45.04	0
K1804.208210025 View product	33	Black	81.8	10	12	20	25	8.9	49.4	38.8	33.9	28	10	60	£45.04	0
K1804.20848210025 View product	33	Red	81.8	10	12	20	25	8.9	49.4	38.8	33.9	28	10	60	£45.04	0
K1804.208210030 View product	33	Black	81.8	10	12	20	30	8.9	49.4	38.8	38.9	28	10	60	£47.00	0
K1804.20848210030 View product	33	Red	81.8	10	12	20	30	8.9	49.4	38.8	38.9	28	10	60	£47.00	0
K1804.208210035 View product	33	Black	81.8	10	12	20	35	8.9	49.4	38.8	43.9	28	10	60	£47.00	0
K1804.20848210035 View product	33	Red	81.8	10	12	20	35	8.9	49.4	38.8	43.9	28	10	60	£47.00	0
K1804.208210040 View product	33	Black	81.8	10	12	20	40	8.9	49.4	38.8	48.9	28	10	60	£47.00	0
K1804.20848210040 View product	33	Red	81.8	10	12	20	40	8.9	49.4	38.8	48.9	28	10	60	£47.00	0
K1804.208210045 View product	33	Black	81.8	10	12	20	45	8.9	49.4	38.8	53.9	28	10	60	£47.00	0
K1804.20848210045 View product	33	Red	81.8	10	12	20	45	8.9	49.4	38.8	53.9	28	10	60	£47.00	0
K1804.208210050 View product	33	Black	81.8	10	12	20	50	8.9	49.4	38.8	58.9	28	10	60	£47.00	0
K1804.20848210050 View product	33	Red	81.8	10	12	20	50	8.9	49.4	38.8	58.9	28	10	60	£47.00	0
K1804.208210060 View product	33	Black	81.8	10	12	20	60	8.9	49.4	38.8	68.9	28	10	60	£49.42	0
K1804.20848210060 View product	33	Red	81.8	10	12	20	60	8.9	49.4	38.8	68.9	28	10	60	£49.42	0
K1804.208212025 View product	33	Black	81.8	12	14.5	20	25	9.9	49.4	38.8	34.9	28	12	86	£40.44	0
K1804.20848212025 View product	33	Red	81.8	12	14.5	20	25	9.9	49.4	38.8	34.9	28	12	86	£40.44	0
K1804.208212030 View product	33	Black	81.8	12	14.5	20	30	9.9	49.4	38.8	39.9	28	12	86	£42.64	0
K1804.20848212030 View product	33	Red	81.8	12	14.5	20	30	9.9	49.4	38.8	39.9	28	12	86	£42.64	0
K1804.208212035 View product	33	Black	81.8	12	14.5	20	35	9.9	49.4	38.8	44.9	28	12	86	£42.64	0
K1804.20848212035 View product	33	Red	81.8	12	14.5	20	35	9.9	49.4	38.8	44.9	28	12	86	£42.64	0
K1804.208212040 View product	33	Black	81.8	12	14.5	20	40	9.9	49.4	38.8	49.9	28	12	86	£42.64	0
K1804.20848212040 View product	33	Red	81.8	12	14.5	20	40	9.9	49.4	38.8	49.9	28	12	86	£42.64	0
K1804.208212045 View product	33	Black	81.8	12	14.5	20	45	9.9	49.4	38.8	54.9	28	12	86	£42.64	0
K1804.20848212045 View product	33	Red	81.8	12	14.5	20	45	9.9	49.4	38.8	54.9	28	12	86	£42.64	0
K1804.208212050 View product	33	Black	81.8	12	14.5	20	50	9.9	49.4	38.8	59.9	28	12	86	£42.64	0
K1804.20848212050 View product	33	Red	81.8	12	14.5	20	50	9.9	49.4	38.8	59.9	28	12	86	£42.64	0
K1804.208212060 View product	33	Black	81.8	12	14.5	20	60	9.9	49.4	38.8	69.9	28	12	86	£44.82	0
K1804.20848212060 View product	33	Red	81.8	12	14.5	20	60	9.9	49.4	38.8	69.9	28	12	86	£44.82	0
K1804.208212070 View product	33	Black	81.8	12	14.5	20	70	9.9	49.4	38.8	79.9	28	12	86	£44.82	0
K1804.20848212070 View product	33	Red	81.8	12	14.5	20	70	9.9	49.4	38.8	79.9	28	12	86	£44.82	0
K1804.208212080 View product	33	Black	81.8	12	14.5	20	80	9.9	49.4	38.8	89.9	28	12	86	£46.76	0
K1804.20848212080 View product	33	Red	81.8	12	14.5	20	80	9.9	49.4	38.8	89.9	28	12	86	£46.76	0
K1804.208216030 View product	33	Black	81.8	16	19	20	30	13.1	49.4	38.8	43.1	28	16	153	£59.94	0
K1804.20848216030 View product	33	Red	81.8	16	19	20	30	13.1	49.4	38.8	43.1	28	16	153	£59.94	0
K1804.208216035 View product	33	Black	81.8	16	19	20	35	13.1	49.4	38.8	48.1	28	16	153	£60.90	0
K1804.20848216035 View product	33	Red	81.8	16	19	20	35	13.1	49.4	38.8	48.1	28	16	153	£60.90	0
K1804.208216040 View product	33	Black	81.8	16	19	20	40	13.1	49.4	38.8	53.1	28	16	153	£60.90	0
K1804.20848216040 View product	33	Red	81.8	16	19	20	40	13.1	49.4	38.8	53.1	28	16	153	£60.90	0
K1804.208216045 View product	33	Black	81.8	16	19	20	45	13.1	49.4	38.8	58.1	28	16	153	£60.90	0
K1804.20848216045 View product	33	Red	81.8	16	19	20	45	13.1	49.4	38.8	58.1	28	16	153	£60.90	0
K1804.208216050 View product	33	Black	81.8	16	19	20	50	13.1	49.4	38.8	63.1	28	16	153	£60.90	0
K1804.20848216050 View product	33	Red	81.8	16	19	20	50	13.1	49.4	38.8	63.1	28	16	153	£60.90	0
K1804.208216060 View product	33	Black	81.8	16	19	20	60	13.1	49.4	38.8	73.1	28	16	153	£64.72	0
K1804.20848216060 View product	33	Red	81.8	16	19	20	60	13.1	49.4	38.8	73.1	28	16	153	£64.72	0
K1804.208216070 View product	33	Black	81.8	16	19	20	70	13.1	49.4	38.8	83.1	28	16	153	£64.72	0
K1804.20848216070 View product	33	Red	81.8	16	19	20	70	13.1	49.4	38.8	83.1	28	16	153	£64.72	0
