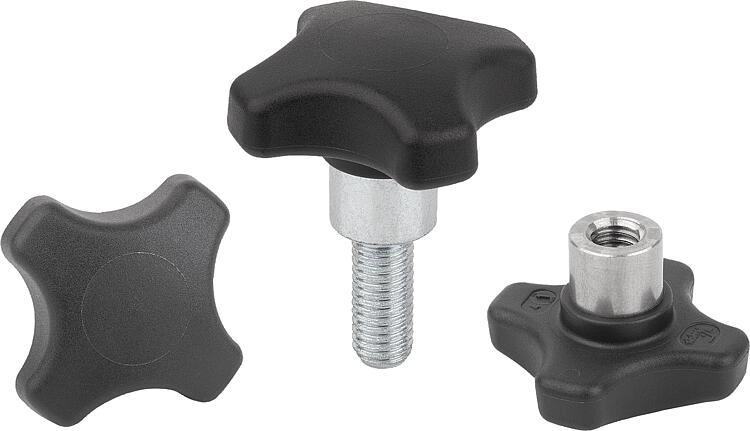

K1794 - Plastic Palm Grips With Protruding Steel & Stainless Steel Bush

K1794 - Plastic Palm Grips With Protruding Steel & Stainless Steel Bush

Material:
Reinforced thermoplastic polyamide, black-gray RAL 7021.
Steel parts grade 5.8 steel or 1.4305 stainless steel.

Version:
Metal parts trivalent blue passivated steel or bright stainless steel.

Note:
Palm grips with projecting steel bushing and internal thread are highly suitable for cross pinning.

Application:
These palm grips have been specially developed for use in applications with high hygienic requirements. The closed grip contour with smooth surfaces are very easy to clean.

Advantages:
Resistant to humidity and cleaning products (during disinfection) with no toxic side effects (bio-compatible).
The palm grips can be tightened or loosened without tools.
Suitable for manual fixating and clamping. Various thread sizes.

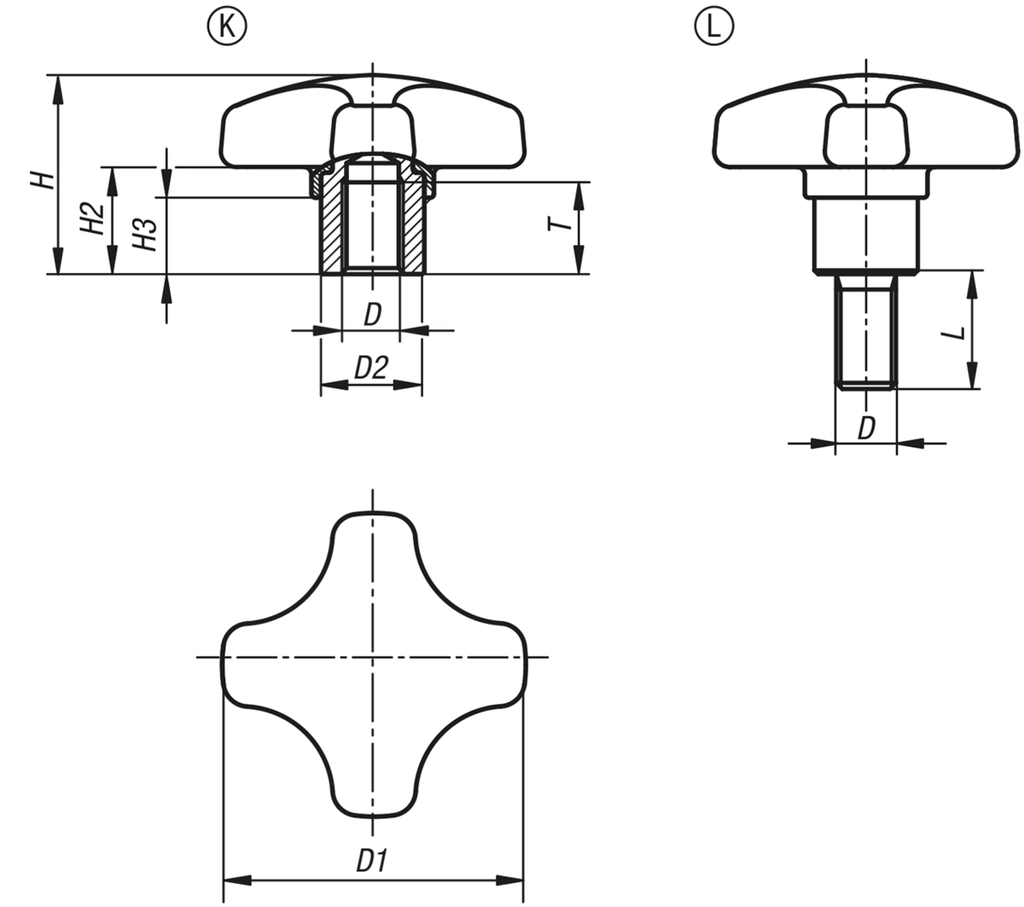

Drawing reference:
style K: tapped bushing
style L: external thread

Select your sizes

Line drawing placeholder

Move drawing here

	Style	Colour	Component Material	D	D1	D2	H	H2	H3	L	Surface finish component	T	Price (Exc. Tax)	Stock
Filters
K1794.5010290 View product	K	Black	Stainless Steel	M10	50	19	32	18	12	--	Bright	17	£4.77	0
K1794.6310290 View product	K	Black	Stainless Steel	M10	63	19	38	21.5	12.5	--	Bright	17	£6.09	0
K1794.5010290X20 View product	L	Black	Stainless Steel	M10	50	19	32	18	12	20	Bright	--	£4.40	0
K1794.5010290X25 View product	L	Black	Stainless Steel	M10	50	19	32	18	12	25	Bright	--	£4.44	0
K1794.5010290X30 View product	L	Black	Stainless Steel	M10	50	19	32	18	12	30	Bright	--	£4.51	0
K1794.5010290X40 View product	L	Black	Stainless Steel	M10	50	19	32	18	12	40	Bright	--	£4.64	0
K1794.5010290X50 View product	L	Black	Stainless Steel	M10	50	19	32	18	12	50	Bright	--	£4.69	0
K1794.5010290X60 View product	L	Black	Stainless Steel	M10	50	19	32	18	12	60	Bright	--	£4.77	0
K1794.6312290 View product	K	Black	Stainless Steel	M12	63	19	38	21.5	12.5	--	Bright	17	£6.09	0
K1794.6312290X20 View product	L	Black	Stainless Steel	M12	63	19	38	21.5	12.5	20	Bright	--	£5.53	0
K1794.6312290X25 View product	L	Black	Stainless Steel	M12	63	19	38	21.5	12.5	25	Bright	--	£5.66	0
K1794.6312290X30 View product	L	Black	Stainless Steel	M12	63	19	38	21.5	12.5	30	Bright	--	£5.93	0
K1794.6312290X40 View product	L	Black	Stainless Steel	M12	63	19	38	21.5	12.5	40	Bright	--	£6.07	0
K1794.6312290X50 View product	L	Black	Stainless Steel	M12	63	19	38	21.5	12.5	50	Bright	--	£6.24	0
K1794.6312290X60 View product	L	Black	Stainless Steel	M12	63	19	38	21.5	12.5	60	Bright	--	£6.74	0
K1794.6316290 View product	K	Black	Stainless Steel	M16	63	19	38	21.5	12.5	--	Bright	17	£8.79	0
K1794.2505290 View product	K	Black	Stainless Steel	M5	25	10	18	9	7	--	Bright	9	£2.30	0
K1794.2505290X10 View product	L	Black	Stainless Steel	M5	25	10	18	9	7	10	Bright	--	£2.39	0
K1794.2505290X15 View product	L	Black	Stainless Steel	M5	25	10	18	9	7	15	Bright	--	£2.39	0
K1794.2505290X20 View product	L	Black	Stainless Steel	M5	25	10	18	9	7	20	Bright	--	£2.39	0
K1794.3206290 View product	K	Black	Stainless Steel	M6	32	13.5	22	12	9.5	--	Bright	12	£2.81	0
K1794.4006290 View product	K	Black	Stainless Steel	M6	40	13.5	26	14	10	--	Bright	12	£3.52	0
K1794.3206290X10 View product	L	Black	Stainless Steel	M6	32	13.5	22	12	9.5	10	Bright	--	£2.61	0
K1794.3206290X15 View product	L	Black	Stainless Steel	M6	32	13.5	22	12	9.5	15	Bright	--	£2.61	0
K1794.3206290X20 View product	L	Black	Stainless Steel	M6	32	13.5	22	12	9.5	20	Bright	--	£2.61	0
K1794.3206290X25 View product	L	Black	Stainless Steel	M6	32	13.5	22	12	9.5	25	Bright	--	£2.76	0
K1794.3206290X30 View product	L	Black	Stainless Steel	M6	32	13.5	22	12	9.5	30	Bright	--	£2.76	0
K1794.4008290 View product	K	Black	Stainless Steel	M8	40	13.5	26	14	10	--	Bright	12	£3.52	0
K1794.5008290 View product	K	Black	Stainless Steel	M8	50	19	32	18	12	--	Bright	17	£4.77	0
K1794.4008290X15 View product	L	Black	Stainless Steel	M8	40	13.5	26	14	10	15	Bright	--	£3.24	0
K1794.4008290X20 View product	L	Black	Stainless Steel	M8	40	13.5	26	14	10	20	Bright	--	£3.34	0
K1794.4008290X25 View product	L	Black	Stainless Steel	M8	40	13.5	26	14	10	25	Bright	--	£3.44	0
K1794.4008290X30 View product	L	Black	Stainless Steel	M8	40	13.5	26	14	10	30	Bright	--	£3.50	0
K1794.4008290X40 View product	L	Black	Stainless Steel	M8	40	13.5	26	14	10	40	Bright	--	£3.64	0
K1794.4008290X50 View product	L	Black	Stainless Steel	M8	40	13.5	26	14	10	50	Bright	--	£3.72	0
K1794.501090 View product	K	Black	Steel	M10	50	19	32	18	12	--	trivalent blue passivated	17	£2.43	0
K1794.631090 View product	K	Black	Steel	M10	63	19	38	21.5	12.5	--	trivalent blue passivated	17	£3.55	0
K1794.501090X20 View product	L	Black	Steel	M10	50	19	32	18	12	20	trivalent blue passivated	--	£2.90	0
K1794.501090X25 View product	L	Black	Steel	M10	50	19	32	18	12	25	trivalent blue passivated	--	£3.17	0
K1794.501090X30 View product	L	Black	Steel	M10	50	19	32	18	12	30	trivalent blue passivated	--	£3.41	0
K1794.501090X40 View product	L	Black	Steel	M10	50	19	32	18	12	40	trivalent blue passivated	--	£3.72	0
K1794.501090X50 View product	L	Black	Steel	M10	50	19	32	18	12	50	trivalent blue passivated	--	£4.06	0
K1794.501090X60 View product	L	Black	Steel	M10	50	19	32	18	12	60	trivalent blue passivated	--	£4.11	0
K1794.631290 View product	K	Black	Steel	M12	63	19	38	21.5	12.5	--	trivalent blue passivated	17	£3.55	0
K1794.631290X20 View product	L	Black	Steel	M12	63	19	38	21.5	12.5	20	trivalent blue passivated	--	£3.88	0
K1794.631290X25 View product	L	Black	Steel	M12	63	19	38	21.5	12.5	25	trivalent blue passivated	--	£4.15	0
K1794.631290X30 View product	L	Black	Steel	M12	63	19	38	21.5	12.5	30	trivalent blue passivated	--	£4.46	0
K1794.631290X40 View product	L	Black	Steel	M12	63	19	38	21.5	12.5	40	trivalent blue passivated	--	£4.79	0
