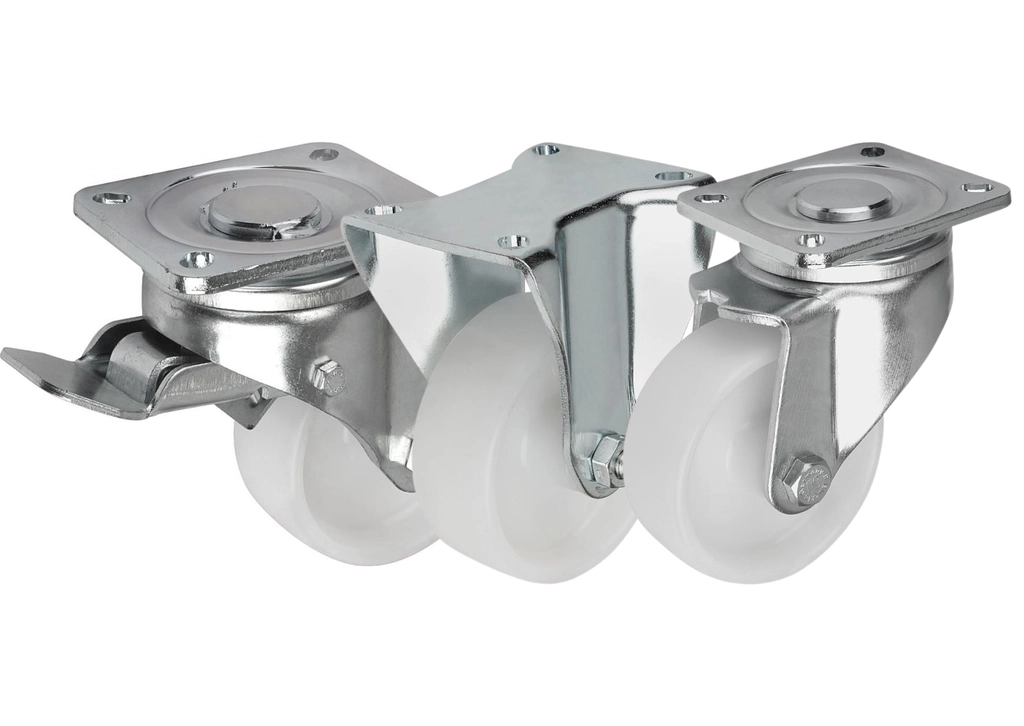

K1771 - Heavy Duty Steel Plate Swivel & Fixed Castors With Polyamide Wheels

K1771 - Heavy Duty Steel Plate Swivel & Fixed Castors With Polyamide Wheels

Material:
Housing thick steel plate.
Wheels PA 6.

Version:
Housing press formed.
Swivel castor housing with strong fork and base plate, very robust centre pin bolted and secured. The swivel head is additionally reinforced with specially formed and hardened bearing shells.
Plain bearings in the wheels.

Note:
Wheel axle bolted. The wheels are particularly shock and impact proof and have high abrasion resistance.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

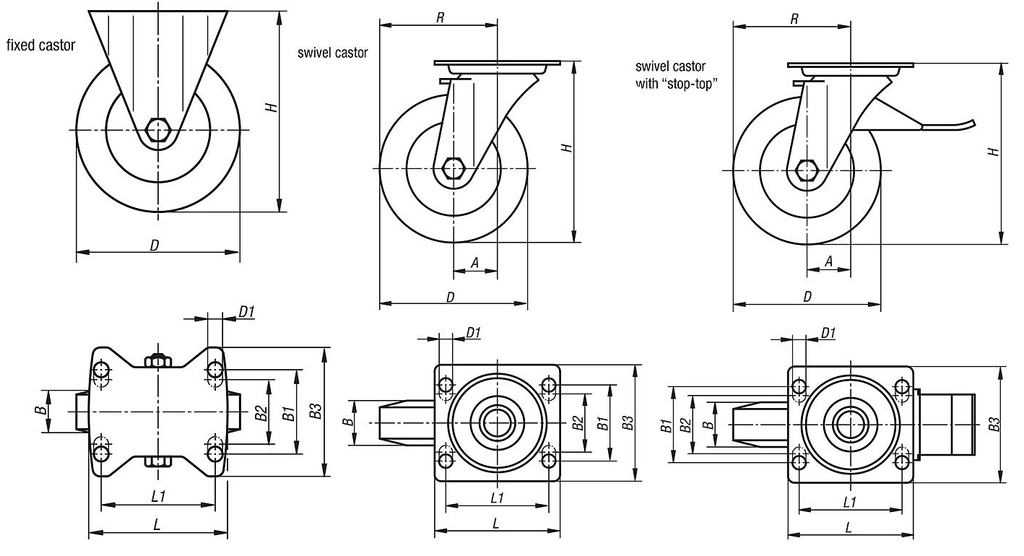

	Load Kg	A	B	B1	B2	B3	D	D1	H	L	L1	R	Version	Price (Exc. Tax)	Stock
Filters
K1771.100371 View product	280	--	37	60	--	85	100	9	140	100	80	--	Fixed Castor	£25.89	0
K1771.125401 View product	300	--	40	60	--	85	125	9	165	100	80	--	Fixed Castor	£29.61	0
K1771.150501 View product	400	--	50	80	75	110	150	11	197	140	105	--	Fixed Castor	£50.09	0
K1771.200501 View product	600	--	50	80	75	110	200	11	245	140	105	--	Fixed Castor	£67.66	0
K1771.10037 View product	280	45	37	60	--	85	100	9	140	100	80	95	Swivel Castor	£66.13	0
K1771.12540 View product	300	45	40	60	--	85	125	9	165	100	80	107.5	Swivel Castor	£70.12	0
K1771.15050 View product	400	65	50	80	75	110	150	11	197	140	105	140	Swivel Castor	£93.40	0
K1771.20050 View product	600	70	50	80	75	110	200	11	245	140	105	170	Swivel Castor	£118.04	0
K1771.100372 View product	280	45	37	60	--	85	100	9	140	100	80	95	Swivel Castor With Lock	£99.12	0
K1771.125402 View product	300	45	40	60	--	85	125	9	165	100	80	107.5	Swivel Castor With Lock	£103.30	0
K1771.150502 View product	400	65	50	80	75	110	150	11	197	140	105	140	Swivel Castor With Lock	£127.95	0
K1771.200502 View product	600	70	50	80	75	110	200	11	245	140	105	170	Swivel Castor With Lock	£151.64	0

Showing products per page

Sort by

Dispatch by 28/10/25

Item Code: K1771.100371

Fixed Castor. Without Lock. Diameter 100mm. Load 280Kg.

£25.89 Excl VAT £31.07 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1771.125401

Fixed Castor. Without Lock. Diameter 125mm. Load 300Kg.

£29.61 Excl VAT £35.53 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1771.150501

Fixed Castor. Without Lock. Diameter 150mm. Load 400Kg.

£50.09 Excl VAT £60.11 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1771.200501

Fixed Castor. Without Lock. Diameter 200mm. Load 600Kg.

£67.66 Excl VAT £81.19 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1771.10037

Swivel Castor. Without Lock. Diameter 100mm. Load 280Kg.

£66.13 Excl VAT £79.36 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1771.12540

Swivel Castor. Without Lock. Diameter 125mm. Load 300Kg.

£70.12 Excl VAT £84.14 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1771.15050

Swivel Castor. Without Lock. Diameter 150mm. Load 400Kg.

£93.40 Excl VAT £112.08 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1771.20050

Swivel Castor. Without Lock. Diameter 200mm. Load 600Kg.

£118.04 Excl VAT £141.65 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1771.100372

Swivel Castor. With Lock. Diameter 100mm. Load 280Kg.

£99.12 Excl VAT £118.94 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1771.125402

Swivel Castor. With Lock. Diameter 125mm. Load 300Kg.

£103.30 Excl VAT £123.96 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1771.150502

Swivel Castor. With Lock. Diameter 150mm. Load 400Kg.

£127.95 Excl VAT £153.54 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1771.200502

Swivel Castor. With Lock. Diameter 200mm. Load 600Kg.

Dispatch by 28/10/25

Item Code: K1771.200502

£151.64 Excl VAT £181.97 Inc VAT

Price breaks available

Text

Qty
