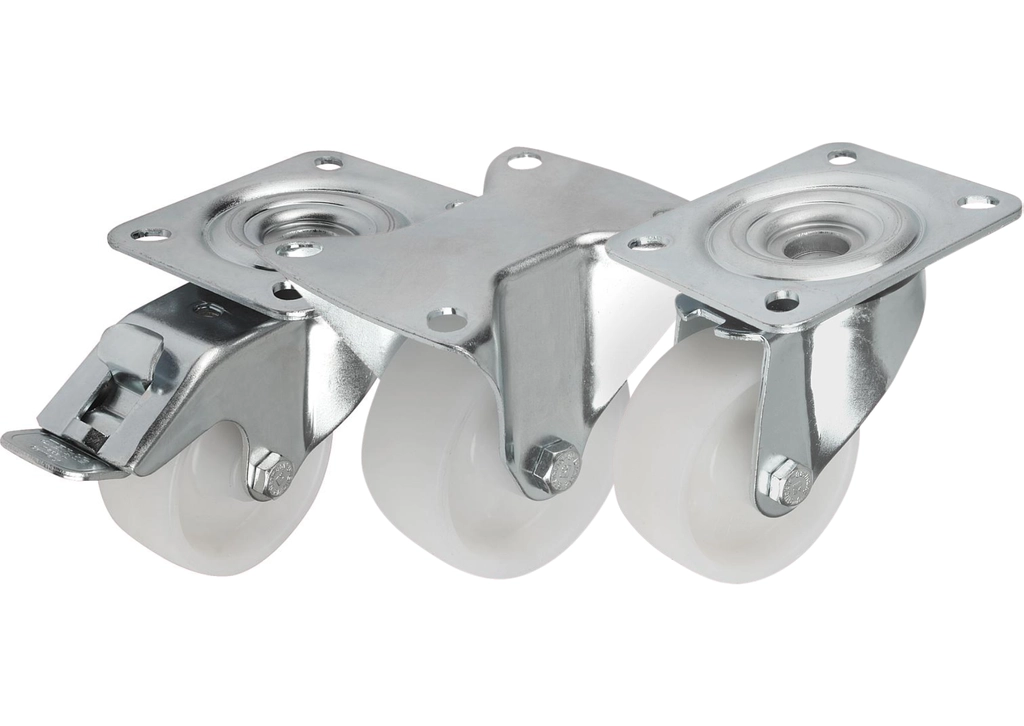

K1770- Steel Plate Swivel & Fixed Castors With Polyamide Wheels

K1770- Steel Plate Swivel & Fixed Castors With Polyamide Wheels

Material:
Housing steel plate.
Wheels PA 6.

Version:
Housing press formed.
Double ball bearing with ball shield in the castor head.
Plain bearings in the wheels.

Note:
The PA 6 wheels have a low rolling resistance, are non-corroding, resist abrasion and are particularly shock and impact proof.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

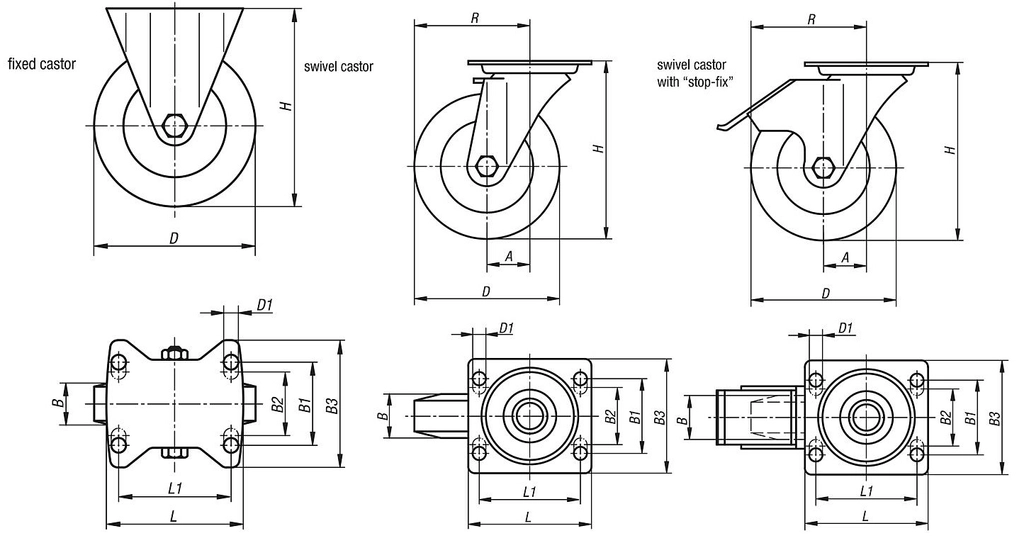

	Load Kg	A	B	B1	B2	B3	D	D1	H	L	L1	R	Version	Price (Exc. Tax)	Stock
Filters
K1770.075321 View product	200	--	32	60	--	85	75	9	98	100	80	--	Fixed Castor	£12.19	0
K1770.100371 View product	200	--	37	60	--	85	100	9	125	100	80	--	Fixed Castor	£17.26	0
K1770.125401 View product	200	--	40	60	--	85	125	9	150	100	80	--	Fixed Castor	£20.84	0
K1770.150501 View product	400	--	50	80	75	110	150	11	190	140	105	--	Fixed Castor	£41.17	0
K1770.07532 View product	200	35	32	60	--	85	75	9	98	100	80	72.5	Swivel Castor	£18.64	0
K1770.10037 View product	200	35	37	60	--	85	100	9	125	100	80	85	Swivel Castor	£23.43	0
K1770.12540 View product	200	40	40	60	--	85	125	9	150	100	80	102.5	Swivel Castor	£26.99	0
K1770.15050 View product	400	60	50	80	75	110	150	11	190	140	105	135	Swivel Castor	£51.18	0
K1770.075322 View product	200	35	32	60	--	85	75	9	98	100	80	72.5	Swivel Castor With Lock	£37.16	0
K1770.100372 View product	200	35	37	60	--	85	100	9	125	100	80	85	Swivel Castor With Lock	£41.75	0
K1770.125402 View product	200	40	40	60	--	85	125	9	150	100	80	102.5	Swivel Castor With Lock	£45.47	0
K1770.150502 View product	400	60	50	80	75	110	150	11	190	140	105	135	Swivel Castor With Lock	£76.62	0

Showing products per page

Sort by

Dispatch by 28/10/25

Item Code: K1770.075321

Fixed Castor. Without Lock. Diameter 75mm. Load 200Kg.

£12.19 Excl VAT £14.63 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1770.100371

Fixed Castor. Without Lock. Diameter 100mm. Load 200Kg.

£17.26 Excl VAT £20.71 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1770.125401

Fixed Castor. Without Lock. Diameter 125mm. Load 200Kg.

£20.84 Excl VAT £25.01 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1770.150501

Fixed Castor. Without Lock. Diameter 150mm. Load 400Kg.

£41.17 Excl VAT £49.40 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1770.07532

Swivel Castor. Without Lock. Diameter 75mm. Load 200Kg.

£18.64 Excl VAT £22.37 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1770.10037

Swivel Castor. Without Lock. Diameter 100mm. Load 200Kg.

£23.43 Excl VAT £28.12 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1770.12540

Swivel Castor. Without Lock. Diameter 125mm. Load 200Kg.

£26.99 Excl VAT £32.39 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1770.15050

Swivel Castor. Without Lock. Diameter 150mm. Load 400Kg.

£51.18 Excl VAT £61.42 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1770.075322

Swivel Castor. With Lock. Diameter 75mm. Load 200Kg.

£37.16 Excl VAT £44.59 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1770.100372

Swivel Castor. With Lock. Diameter 100mm. Load 200Kg.

£41.75 Excl VAT £50.10 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1770.125402

Swivel Castor. With Lock. Diameter 125mm. Load 200Kg.

£45.47 Excl VAT £54.56 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1770.150502

Swivel Castor. With Lock. Diameter 150mm. Load 400Kg.

Dispatch by 28/10/25

Item Code: K1770.150502

£76.62 Excl VAT £91.94 Inc VAT

Price breaks available

Text

Qty
