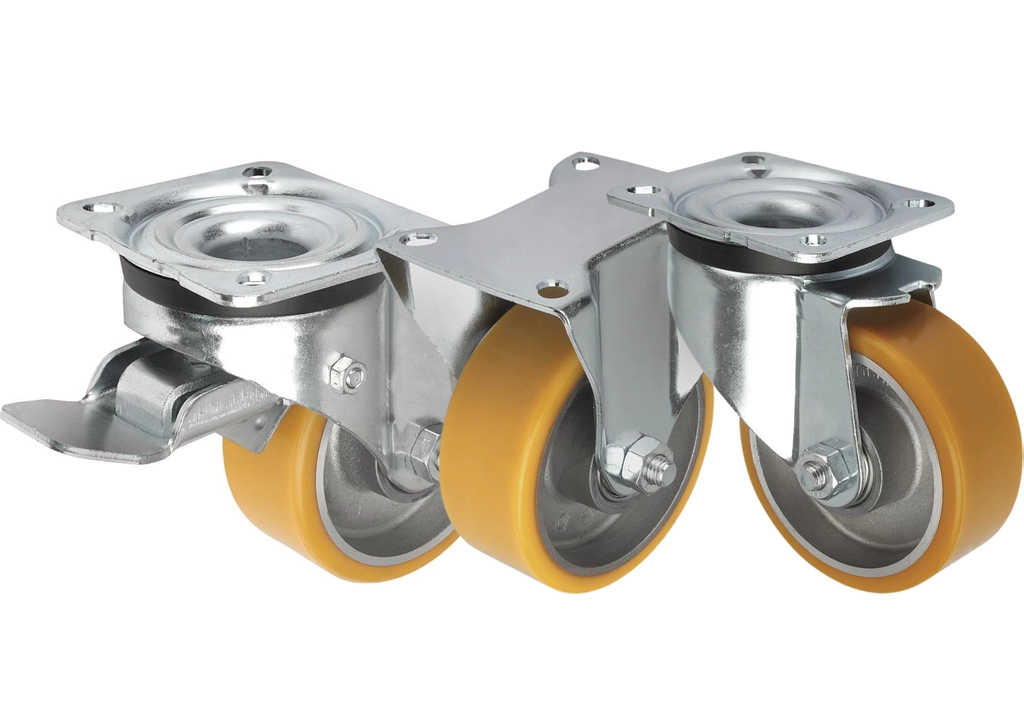

K1767 - Steel Plate Swivel & Fixed Castors With Extrathane® Tread

K1767 - Steel Plate Swivel & Fixed Castors With Extrathane® Tread

Material:
Housing, steel plate.
Wheel body die-cast aluminium with Extrathane® tread.

Version:
Housing, press-formed.
Double ball bearing with ball shield in the castor head.
Precision ball bearings in the wheels.

Note:
The wheels are corrosion resistant and they have a low rolling resistance. Wheel axle bolted.
From diameter 125 mm the wheels have spokes.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

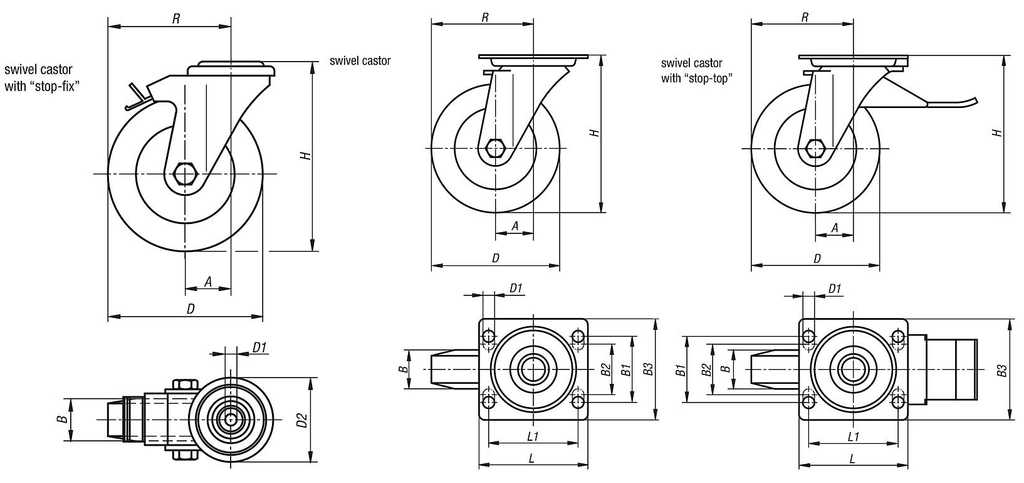

Line drawing placeholder

Move drawing here

	Load Kg	A	B	B1	B2	B3	D	D1	H	L	L1	R	Version	Price (Exc. Tax)	Stock
Filters
K1767.100401 View product	250	--	40	60	--	85	100	9	130	100	80	--	Fixed Castor	£64.14	0
K1767.125401 View product	250	--	40	60	--	85	125	9	155	100	80	--	Fixed Castor	£72.28	0
K1767.160501 View product	550	--	50	80	75	110	160	11	202	140	105	--	Fixed Castor	£110.67	0
K1767.200501 View product	800	--	50	80	75	110	200	11	245	140	105	--	Fixed Castor	£131.94	0
K1767.10040 View product	250	45	40	60	--	85	100	9	130	100	80	95	Swivel Castor	£71.49	0
K1767.12540 View product	250	48	40	60	--	85	125	9	155	100	80	110.5	Swivel Castor	£81.23	0
K1767.16050 View product	550	63	50	80	75	110	160	11	202	140	105	143	Swivel Castor	£137.66	0
K1767.20050 View product	800	70	50	80	75	110	200	11	245	140	105	170	Swivel Castor	£157.23	0
K1767.100402 View product	250	45	40	60	--	85	100	9	130	100	80	95	Swivel Castor With Lock	£94.32	0
K1767.125402 View product	250	48	40	60	--	85	125	9	155	100	80	110.5	Swivel Castor With Lock	£104.05	0
K1767.160502 View product	550	63	50	80	75	110	160	11	202	140	105	143	Swivel Castor With Lock	£169.54	0
K1767.200502 View product	800	70	50	80	75	110	200	11	245	140	105	170	Swivel Castor With Lock	£189.59	0

Showing products per page

Sort by

Dispatch by 29/10/25

Item Code: K1767.100401

Fixed Castor. Without Lock. Diameter 100mm. Load 250Kg.

£64.14 Excl VAT £76.97 Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1767.125401

Fixed Castor. Without Lock. Diameter 125mm. Load 250Kg.

£72.28 Excl VAT £86.74 Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1767.160501

Fixed Castor. Without Lock. Diameter 160mm. Load 550Kg.

£110.67 Excl VAT £132.80 Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1767.200501

Fixed Castor. Without Lock. Diameter 200mm. Load 800Kg.

£131.94 Excl VAT £158.33 Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1767.10040

Swivel Castor. Without Lock. Diameter 100mm. Load 250Kg.

£71.49 Excl VAT £85.79 Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1767.12540

Swivel Castor. Without Lock. Diameter 125mm. Load 250Kg.

£81.23 Excl VAT £97.48 Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1767.16050

Swivel Castor. Without Lock. Diameter 160mm. Load 550Kg.

£137.66 Excl VAT £165.19 Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1767.20050

Swivel Castor. Without Lock. Diameter 200mm. Load 800Kg.

£157.23 Excl VAT £188.68 Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1767.100402

Swivel Castor. With Lock. Diameter 100mm. Load 250Kg.

£94.32 Excl VAT £113.18 Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1767.125402

Swivel Castor. With Lock. Diameter 125mm. Load 250Kg.

£104.05 Excl VAT £124.86 Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1767.160502

Swivel Castor. With Lock. Diameter 160mm. Load 550Kg.

£169.54 Excl VAT £203.45 Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1767.200502

Swivel Castor. With Lock. Diameter 200mm. Load 800Kg.

Dispatch by 29/10/25

Item Code: K1767.200502

£189.59 Excl VAT £227.51 Inc VAT

Price breaks available

Text

Qty
