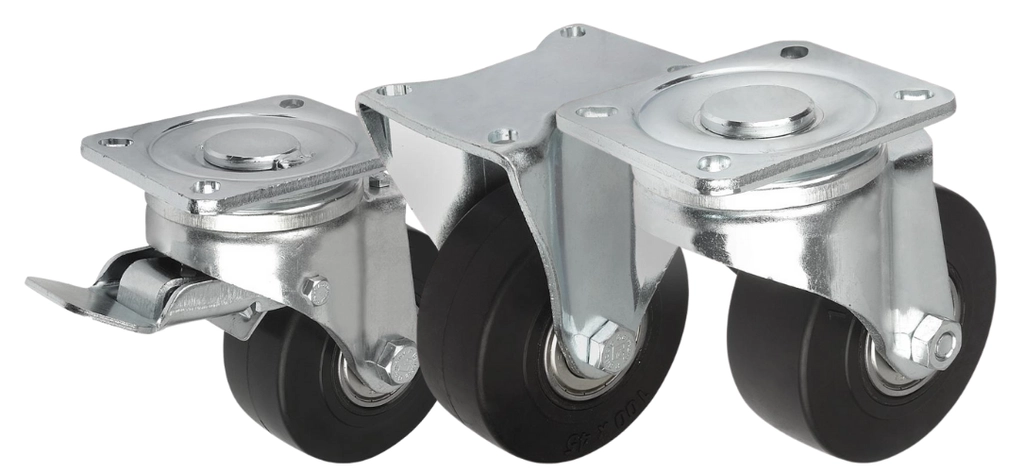

K1763 - Heavy Duty Steel Plate Swivel and Fixed Castors With Steel Wire Reinforced Elastic Solid Rubber Tyres

List view Grid view
K1763 - Heavy Duty Steel Plate Swivel and Fixed Castors With Steel Wire Reinforced Elastic Solid Rubber Tyres

Material:
Housing thick steel plate.
Tyres steel-wire reinforced elastic solid rubber.
Wheel body welded steel.

Version:
Housing press formed.
Reinforced fork, base plate and centre pin.
Double ball bearing with hardened shells in the castor head.
Precision ball bearings in the wheels.

Note:
These castors are particularly impact and shock proof and assure a high service life.
Wheel axle bolted.

Wheels and Casters.

K1763 - Heavy Duty Steel Plate Swivel and Fixed Castors With Steel Wire Reinforced Elastic Solid Rubber Tyres

Quick Filters

Choose Vertical Base Type

Flat

Side Mount

Straight

Choose Horizontal Base Type

Flat

Side Mount

Straight

Choose Stroke Length

0-40mm

41-80mm

81mm and Over

Choose Type

Hook

Latch

Vertical Latch

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Air Knife Only

Air Knife With Filter and Shim Set

Air Knife With Plumbing Kit Installed, Filter and Shim Set

Style

Air Knife Only

Air Knife With Filter and Shim Set

Style

Air Knife Only

Air Knife With Filter and Shim Set

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Air Amplifier Only

Air Amplifier With Filter and Shim Set

Style

Air Amplifier Only

Air Amplifier With Filter

Item

Filter / Regulator

Air Amplifier Shim Set

Item

Filter / Regulator

Vortex Tube Generator

Vortex Tube Cold Silencer

Vortex Tube Hot Silencer

Style

Vortex Tube Only

Vortex Tube With Generator Kit, Muffler, Tubing And Filter

Clamp Type

Horizontal

Vertical

Latch

Vertical Latch

Clamp Type

Vertical

Press

Push-Pull

Clamp Type

Horizontal

Vertical

Hook

Latch

Vertical Latch

Push-Pull

Flip-Flop

Line drawing placeholder

Move drawing here

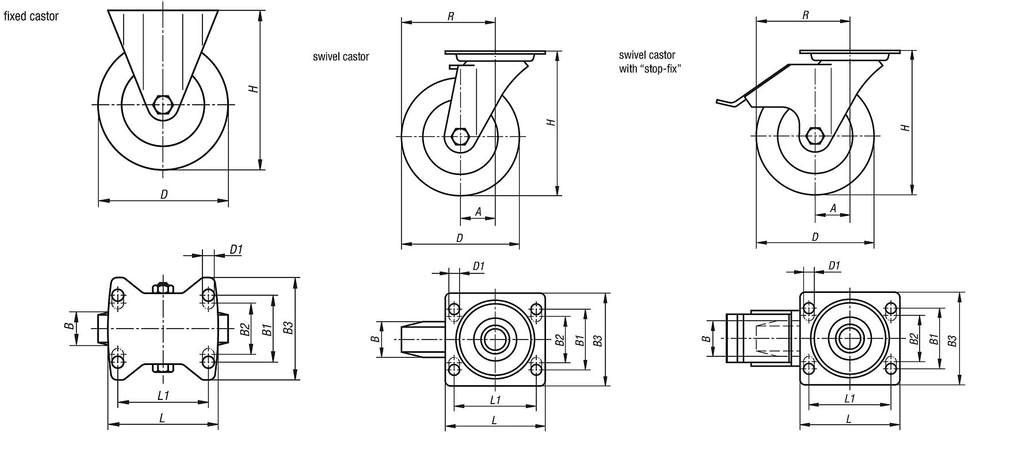

Load Kg A B B1 B2 B3 D D1 H L L1 R Version Price (Exc. Tax) Stock Qty basket

Filters

K1763.100401
View product
180 -- 40 60 -- 85 100 9 140 100 80 -- Fixed Castor
£56.87
0
K1763.125501
View product
280 -- 50 80 75 110 125 11 170 140 105 -- Fixed Castor
£87.70
0
K1763.160501
View product
400 -- 50 80 75 110 160 11 202 140 105 -- Fixed Castor
£121.32
0
K1763.200501
View product
500 -- 50 80 75 110 200 11 245 140 105 -- Fixed Castor
£131.17
0
K1763.250601
View product
700 -- 60 80 75 110 250 11 295 140 105 -- Fixed Castor
£200.36
0
K1763.10040
View product
180 45 40 60 - 85 100 9 140 100 80 95 Swivel Castor
£97.59
0
K1763.12550
View product
280 55 50 80 75 110 125 11 170 140 105 117,5 Swivel Castor
£125.49
0
K1763.16050
View product
400 65 50 80 75 110 160 11 202 140 105 145 Swivel Castor
£166.46
0
K1763.20050
View product
500 70 50 80 75 110 200 11 245 140 105 170 Swivel Castor
£181.88
0
K1763.25060
View product
700 82 60 80 75 110 250 11 295 140 105 207 Swivel Castor
£251.25
0
K1763.100402
View product
180 45 40 60 - 85 100 9 140 100 80 95 Swivel Castor With Lock
£131.17
0
K1763.125502
View product
280 55 50 80 75 110 125 11 170 140 105 117,5 Swivel Castor With Lock
£158.77
0
K1763.160502
View product
400 65 50 80 75 110 160 11 202 140 105 145 Swivel Castor With Lock
£198.86
0
K1763.200502
View product
500 70 50 80 75 110 200 11 245 140 105 170 Swivel Castor With Lock
£215.79
0
K1763.250602
View product
700 82 60 80 75 110 250 11 295 140 105 207 Swivel Castor With Lock
£285.15
0

Showing products per page


£
£

Dispatch by 29/10/25

Item Code: K1763.100401

Fixed Castor. Without Lock. Diameter 100mm. Load 180Kg.

£56.87  Excl VAT £68.24  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1763.125501

Fixed Castor. Without Lock. Diameter 125mm. Load 280Kg.

£87.70  Excl VAT £105.24  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1763.160501

Fixed Castor. Without Lock. Diameter 160mm. Load 400Kg.

£121.32  Excl VAT £145.58  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1763.200501

Fixed Castor. Without Lock. Diameter 200mm. Load 500Kg.

£131.17  Excl VAT £157.40  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1763.250601

Fixed Castor. Without Lock. Diameter 250mm. Load 700Kg.

£200.36  Excl VAT £240.43  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1763.10040

Swivel Castor. Without Lock. Diameter 100mm. Load 180Kg.

£97.59  Excl VAT £117.11  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1763.12550

Swivel Castor. Without Lock. Diameter 125mm. Load 280Kg.

£125.49  Excl VAT £150.59  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1763.16050

Swivel Castor. Without Lock. Diameter 160mm. Load 400Kg.

£166.46  Excl VAT £199.75  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1763.20050

Swivel Castor. Without Lock. Diameter 200mm. Load 500Kg.

£181.88  Excl VAT £218.26  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1763.25060

Swivel Castor. Without Lock. Diameter 250mm. Load 700Kg.

£251.25  Excl VAT £301.50  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1763.100402

Swivel Castor. Without Lock. Diameter 100mm. Load 180Kg.

£131.17  Excl VAT £157.40  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1763.125502

Swivel Castor. Without Lock. Diameter 125mm. Load 280Kg.

£158.77  Excl VAT £190.52  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1763.160502

Swivel Castor. Without Lock. Diameter 160mm. Load 400Kg.

£198.86  Excl VAT £238.63  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1763.200502

Swivel Castor. Without Lock. Diameter 200mm. Load 500Kg.

£215.79  Excl VAT £258.95  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1763.250602

Swivel Castor. Without Lock. Diameter 250mm. Load 700Kg.

£285.15  Excl VAT £342.18  Inc VAT

Price breaks available

Text

Qty

Showing products per page
