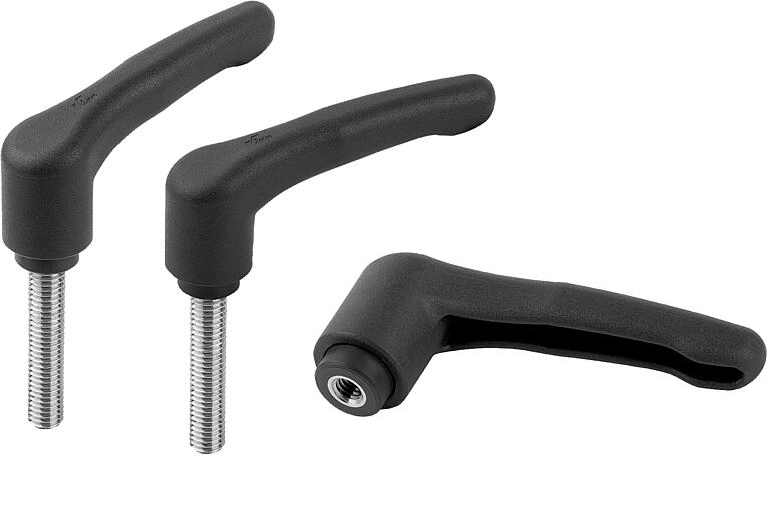

K1743 - Metal Detectable Clamp Levers With Reinforced Plastic Handle And Stainless Steel Thread M6-M8

K1743 - Metal Detectable Clamp Levers With Reinforced Plastic Handle And Stainless Steel Thread M6-M8

Product description:
The metal detectable operating parts are made from a EU10/2011 and FDA conform plastic granulate.
Due to special additives to the plastic granulate, it is possible for metal detectors (induction technology) to detect plastic particles from a size of 0.027 cm³ (3x3x3 mm). This means that in sensitive production sectors, e.g. foodstuff processing, plastic fragments of metal detectable operating parts can be identified and the risk of production downtimes or complaints are significantly reduced.

Material:
Thermoplastic (fibreglass reinforced polyamide), metal detectable, EU10/2011 and FDA conform.
Steel parts stainless steel 1.4404.

Version:
Thermoplastic black-grey RAL 7021.
Steel parts bright stainless steel.

Note:
The metal detectable additive can lead to partial colour variations in the plastic surface.Application:- Foodstuff industry
- Pharmaceutical industry
- Packaging industryTemperature range:-20°C to +100°C.

Advantages:
Metal detectable.
Detections volume ≥ 0.027 cm³.

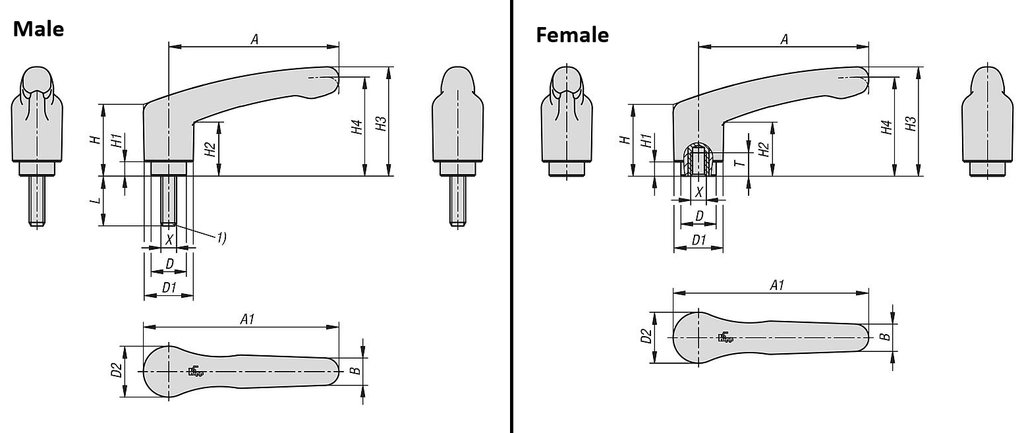

Foodstuff conform material.Drawing reference:

1) flat point DIN EN ISO 4753

Select your sizes

Line drawing placeholder

Move drawing here

	No. Of Teeth	A	A1	B	Colour	D	D1	D2	H	H1	H2	H3	H4	L	Male/Female	T	X	Price (Exc. Tax)	Stock
Filters
K1743.14206 View product	12	65.2	75	10.5	Black	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38		Female	8	M6	£13.33	0
K1743.14206X20 View product	12	65.2	75	10.5	Black	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	20	Male	--	M6	£15.47	0
K1743.14206X25 View product	12	65.2	75	10.5	Black	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	25	Male	--	M6	£15.55	0
K1743.14208 View product	12	65.2	75	10.5	Black	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	--	Female	9	M8	£13.96	0
K1743.14208X20 View product	12	65.2	75	10.5	Black	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	20	Male	--	M8	£15.65	0
K1743.14208X40 View product	12	65.2	75	10.5	Black	13.5	18.8	19.5	27.4	5.5	20.7	41.9	38	40	Male	--	M8	£16.36	0
