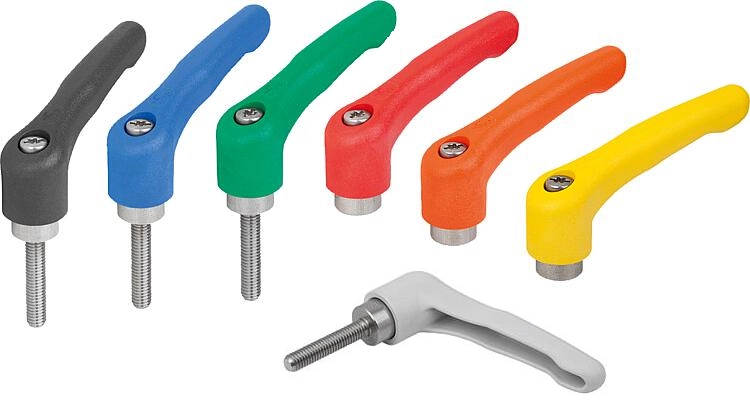

K1701 - Ergonomic Clamp Levers With Thermoplastic Handle and Stainless Steel Thread M3-M16

K1701 - Ergonomic Clamp Levers With Thermoplastic Handle and Stainless Steel Thread M3-M16

Product description:
The plastic clamping lever with ergonomic grip design offers a high-quality, modern appearance in combination with very pleasant haptics.
The clamping lever is made of a special high-performance plastic and is available in many standard colours.
The advantages of the clamping lever are high rigidity and strength. The light weight make it ideal for mobile applications.
It offers good chemical and corrosion resistance.

Material:
High performance fibreglass reinforced thermoplastic.
Steel parts stainless steel 1.4305.

Version:
Steel parts bright.

Type of operation:
When not actuated, the handle is engaged in the tooth insert by a gear ring, thus allowing the thread to be fastened or released. When raised, the handle can be re-positioned and then re-engaged in the gear ring by spring force.

Application:
Machine, equipment and systems engineering, rehab applications, medical technology, food processing industry.

Temperature range:
Permanent temperature max. 100 °C.
Brief use with temperatures up to 130 °C.

Advantages:
Good chemical and corrosion resistance.
Seven colour variants.

Select your sizes

Line drawing placeholder

Move drawing here

	No. Of Teeth	A	A1	B	Colour	Component Material	D	D1	D2	H	H1	H2	H3	H4	L	Main material	Male/Female	T	X	Price (Exc. Tax)	Stock
Filters
K1701.5121 View product	26	110.9	126.6	15.1	Black	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	--	high performance thermoplastic	Female	23	M12	£15.38	0
K1701.51287 View product	26	110.9	126.6	15.1	Blue	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	--	high performance thermoplastic	Female	23	M12	£15.38	0
K1701.51286 View product	26	110.9	126.6	15.1	Green	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	--	high performance thermoplastic	Female	23	M12	£15.38	0
K1701.51288 View product	26	110.9	126.6	15.1	Light Grey	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	--	high performance thermoplastic	Female	23	M12	£15.38	0
K1701.5122 View product	26	110.9	126.6	15.1	Orange	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	--	high performance thermoplastic	Female	23	M12	£15.38	0
K1701.51284 View product	26	110.9	126.6	15.1	Red	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	--	high performance thermoplastic	Female	23	M12	£15.38	0
K1701.51216 View product	26	110.9	126.6	15.1	Yellow	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	--	high performance thermoplastic	Female	23	M12	£15.38	0
K1701.5161 View product	26	110.9	126.6	15.1	Black	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	--	high performance thermoplastic	Female	23	M16	£15.38	0
K1701.51687 View product	26	110.9	126.6	15.1	Blue	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	--	high performance thermoplastic	Female	23	M16	£15.38	0
K1701.51686 View product	26	110.9	126.6	15.1	Green	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	--	high performance thermoplastic	Female	23	M16	£15.38	0
K1701.51688 View product	26	110.9	126.6	15.1	Light Grey	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	--	high performance thermoplastic	Female	23	M16	£15.38	0
K1701.5162 View product	26	110.9	126.6	15.1	Orange	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	--	high performance thermoplastic	Female	23	M16	£15.38	0
K1701.51684 View product	26	110.9	126.6	15.1	Red	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	--	high performance thermoplastic	Female	23	M16	£15.38	0
K1701.51616 View product	26	110.9	126.6	15.1	Yellow	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	--	high performance thermoplastic	Female	23	M16	£15.38	0
K1701.5161X30 View product	26	110.9	126.6	15.1	Black	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	30	high performance thermoplastic	Male	--	M16	£16.50	0
K1701.51687X30 View product	26	110.9	126.6	15.1	Blue	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	30	high performance thermoplastic	Male	--	M16	£16.50	0
K1701.51686X30 View product	26	110.9	126.6	15.1	Green	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	30	high performance thermoplastic	Male	--	M16	£16.50	0
K1701.51688X30 View product	26	110.9	126.6	15.1	Light Grey	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	30	high performance thermoplastic	Male	--	M16	£16.50	0
K1701.5162X30 View product	26	110.9	126.6	15.1	Orange	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	30	high performance thermoplastic	Male	--	M16	£16.50	0
K1701.51684X30 View product	26	110.9	126.6	15.1	Red	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	30	high performance thermoplastic	Male	--	M16	£16.50	0
K1701.51616X30 View product	26	110.9	126.6	15.1	Yellow	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	30	high performance thermoplastic	Male	--	M16	£16.50	0
K1701.5161X40 View product	26	110.9	126.6	15.1	Black	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	40	high performance thermoplastic	Male	--	M16	£18.00	0
K1701.51687X40 View product	26	110.9	126.6	15.1	Blue	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	40	high performance thermoplastic	Male	--	M16	£18.00	0
K1701.51686X40 View product	26	110.9	126.6	15.1	Green	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	40	high performance thermoplastic	Male	--	M16	£18.00	0
K1701.51688X40 View product	26	110.9	126.6	15.1	Light Grey	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	40	high performance thermoplastic	Male	--	M16	£18.00	0
K1701.5162X40 View product	26	110.9	126.6	15.1	Orange	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	40	high performance thermoplastic	Male	--	M16	£18.00	0
K1701.51684X40 View product	26	110.9	126.6	15.1	Red	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	40	high performance thermoplastic	Male	--	M16	£18.00	0
K1701.51616X40 View product	26	110.9	126.6	15.1	Yellow	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	40	high performance thermoplastic	Male	--	M16	£18.00	0
K1701.5161X50 View product	26	110.9	126.6	15.1	Black	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	50	high performance thermoplastic	Male	--	M16	£18.00	0
K1701.51687X50 View product	26	110.9	126.6	15.1	Blue	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	50	high performance thermoplastic	Male	--	M16	£18.00	0
K1701.51686X50 View product	26	110.9	126.6	15.1	Green	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	50	high performance thermoplastic	Male	--	M16	£18.00	0
K1701.51688X50 View product	26	110.9	126.6	15.1	Light Grey	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	50	high performance thermoplastic	Male	--	M16	£18.00	0
K1701.5162X50 View product	26	110.9	126.6	15.1	Orange	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	50	high performance thermoplastic	Male	--	M16	£18.00	0
K1701.51684X50 View product	26	110.9	126.6	15.1	Red	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	50	high performance thermoplastic	Male	--	M16	£18.00	0
K1701.51616X50 View product	26	110.9	126.6	15.1	Yellow	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	50	high performance thermoplastic	Male	--	M16	£18.00	0
K1701.5161X60 View product	26	110.9	126.6	15.1	Black	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	60	high performance thermoplastic	Male	--	M16	£18.00	0
K1701.51687X60 View product	26	110.9	126.6	15.1	Blue	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	60	high performance thermoplastic	Male	--	M16	£18.00	0
K1701.51686X60 View product	26	110.9	126.6	15.1	Green	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	60	high performance thermoplastic	Male	--	M16	£18.00	0
K1701.51688X60 View product	26	110.9	126.6	15.1	Light Grey	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	60	high performance thermoplastic	Male	--	M16	£18.00	0
K1701.5162X60 View product	26	110.9	126.6	15.1	Orange	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	60	high performance thermoplastic	Male	--	M16	£18.00	0
K1701.51684X60 View product	26	110.9	126.6	15.1	Red	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	60	high performance thermoplastic	Male	--	M16	£18.00	0
K1701.51616X60 View product	26	110.9	126.6	15.1	Yellow	Stainless Steel	23	30.5	31.5	49.1	12	30.8	72.9	79.2	60	high performance thermoplastic	Male	--	M16	£18.00	0
K1701.9031 View product	12	22	27.5	6.4	Black	Stainless Steel	8	10.5	11	21.4	4	12.4	24	27	--	high performance thermoplastic	Female	6	M3	£5.78	0
K1701.90387 View product	12	22	27.5	6.4	Blue	Stainless Steel	8	10.5	11	21.4	4	12.4	24	27	--	high performance thermoplastic	Female	6	M3	£5.78	0
K1701.90386 View product	12	22	27.5	6.4	Green	Stainless Steel	8	10.5	11	21.4	4	12.4	24	27	--	high performance thermoplastic	Female	6	M3	£5.78	0
K1701.90388 View product	12	22	27.5	6.4	Light Grey	Stainless Steel	8	10.5	11	21.4	4	12.4	24	27	--	high performance thermoplastic	Female	6	M3	£5.78	0
K1701.9032 View product	12	22	27.5	6.4	Orange	Stainless Steel	8	10.5	11	21.4	4	12.4	24	27	--	high performance thermoplastic	Female	6	M3	£5.78	0
K1701.90384 View product	12	22	27.5	6.4	Red	Stainless Steel	8	10.5	11	21.4	4	12.4	24	27	--	high performance thermoplastic	Female	6	M3	£5.78	0
