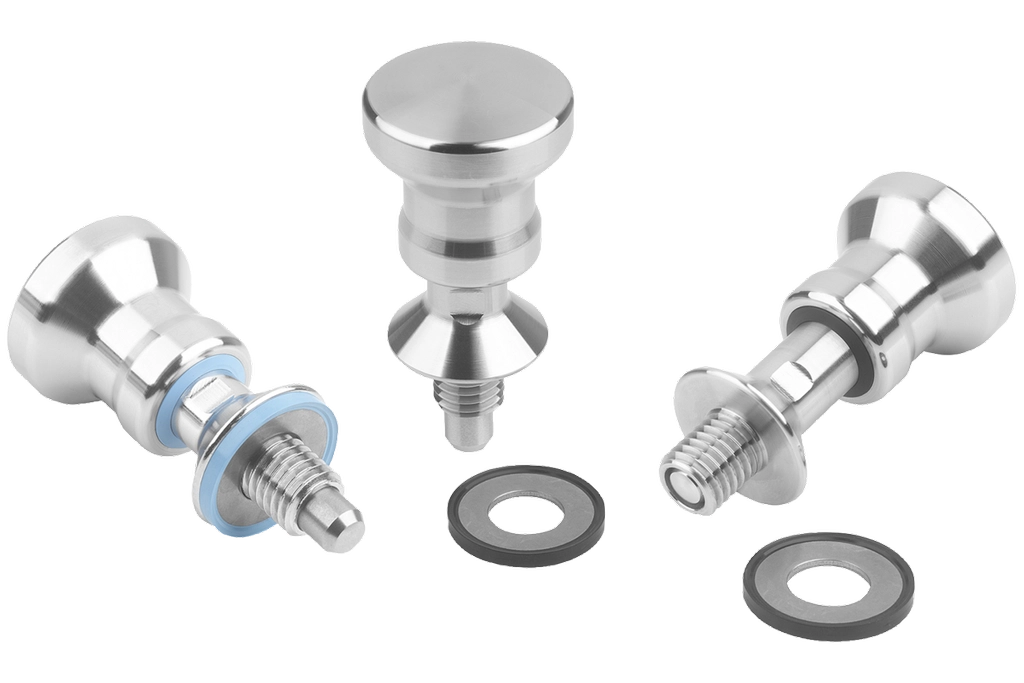

K1698 - Hygienic 316 Stainlesss Steel Indexing Plungers With Shim Size M10-M12

K1698 - Hygienic 316 Stainlesss Steel Indexing Plungers With Shim Size M10-M12

Product description:
Indexing plungers are used where it is necessary to prevent changes of position due to lateral forces. A new locking position can be set only after the plunger has been manually retracted. Style C (with lockout slot) is recommended for applications where the indexing pin should remain disengaged for an extended period and be prevented from springing back.

This indexing plunger is suitable for the foodstuff sectors. It has a conical collar so that the fastening point can be hygienically sealed using the Hygienic USIT^® sealing and shim washer. The surface finish is Ra < 0.8 µm, which prevents dirt particles from adhering and ensures easy cleaning.

Material:
Steel parts stainless steel 1.4404.
75 Fluoroprene^® XP (blue)

Version:
Indexing pin hardened, bright.

Temperature range:
75 EPDM 295: -40 °C to 150 °C.
75 Fluoroprene^® XP: -15 °C to 200 °C.

Advantages:
Hygienic conform design
Stainless steel 1.4404
Suitable for CIP/SIP cleaning
Resistant to polar and nonpolar media as well as aromatic substances
Certified according to DGUV test

Scope of delivery:
Indexing plunger including seal and shim washer Hygienic USIT^®.

Accessory:
Hygienic USIT^® seal and shim washers K1491.

Select your sizes

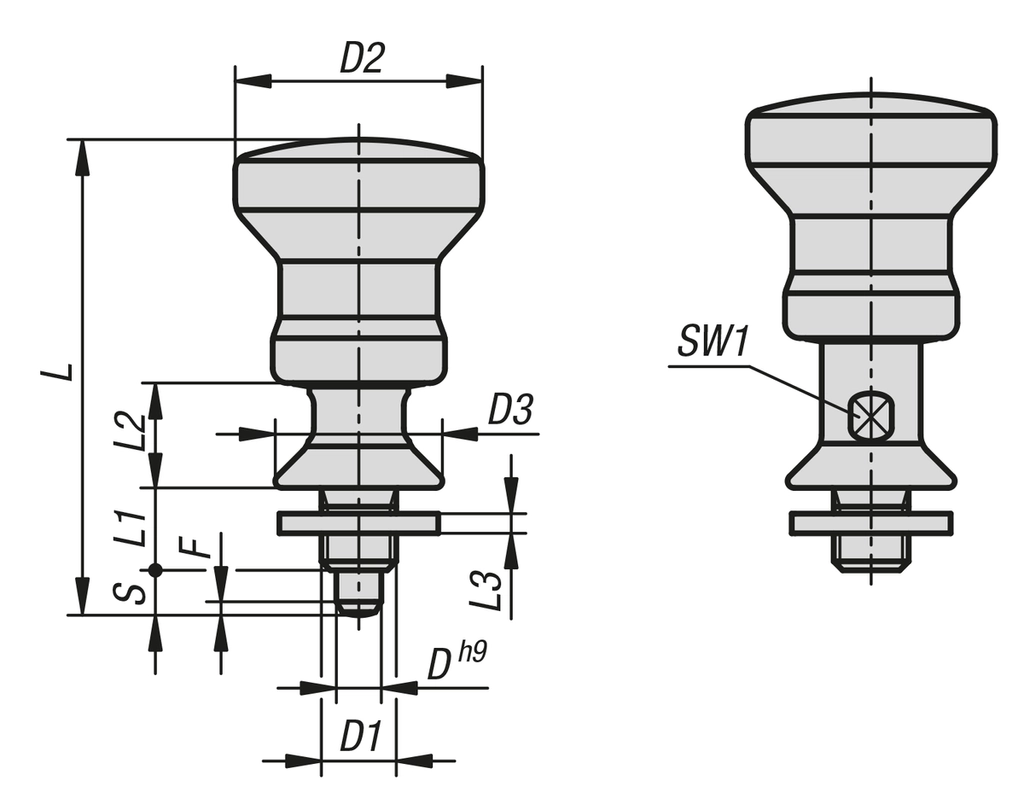

Line drawing placeholder

Move drawing here

	Component Colour	D	D1	D2	D3	Fx30°	L	L1	L2	L3	Main material	Spring force final pressure F2 approx. N	Spring force initial pressure F1 approx. N	Style	Style Definition	Surface Finish Body	SW1	Travel S	Price (Exc. Tax)	Stock
Filters
K1698.0310601 View product	Black	6	M10	33	22.3	1.8	63.5	11	14	1.5	316 Stainless Steel	45	40	C	With Locking Slot	Hardened	12	6	£58.74	0
K1698.0310602 View product	Blue	6	M10	33	22.3	1.8	63.5	11	14	1.5	316 Stainless Steel	45	40	C	With Locking Slot	Hardened	12	6	£70.94	0
K1698.1310601 View product	Black	6	M10	33	22.3	1.8	63.5	11	14	1.5	316 Stainless Steel	45	40	C	With Locking Slot	Not Hardened	12	6	£57.16	0
K1698.1310602 View product	Blue	6	M10	33	22.3	1.8	63.5	11	14	1.5	316 Stainless Steel	45	40	C	With Locking Slot	Not Hardened	12	6	£68.91	0
K1698.0110601 View product	Black	6	M10	33	22.3	1.8	63.5	11	14	1.5	316 Stainless Steel	45	40	A	Without Locking Slot	Hardened	12	6	£54.68	0
K1698.0110602 View product	Blue	6	M10	33	22.3	1.8	63.5	11	14	1.5	316 Stainless Steel	45	40	A	Without Locking Slot	Hardened	12	6	£65.59	0
K1698.1110602 View product	Blue	6	M10	33	22.3	1.8	63.5	11	14	1.5	316 Stainless Steel	45	40	A	Without Locking Slot	Not Hardened	12	6	£63.75	0
K1698.1110601 View product	Black	6	M10	33	22.3	1.8	63.5	11	14	1.5	316 Stainless Steel	45	40	A	Without Locking Slot	Not Hardened	12	6	£52.96	0
K1698.0310611 View product	Black	6	M10x1	33	22.3	1.8	63.5	11	14	1.5	316 Stainless Steel	45	40	C	With Locking Slot	Hardened	12	6	£58.74	0
K1698.0310612 View product	Blue	6	M10x1	33	22.3	1.8	63.5	11	14	1.5	316 Stainless Steel	45	40	C	With Locking Slot	Hardened	12	6	£70.94	0
K1698.1310611 View product	Black	6	M10x1	33	22.3	1.8	63.5	11	14	1.5	316 Stainless Steel	45	40	C	With Locking Slot	Not Hardened	12	6	£57.16	0
K1698.1310612 View product	Blue	6	M10x1	33	22.3	1.8	63.5	11	14	1.5	316 Stainless Steel	45	40	C	With Locking Slot	Not Hardened	12	6	£68.91	0
K1698.0110611 View product	Black	6	M10x1	33	22.3	1.8	63.5	11	14	1.5	316 Stainless Steel	45	40	A	Without Locking Slot	Hardened	12	6	£54.68	0
K1698.0110612 View product	Blue	6	M10x1	33	22.3	1.8	63.5	11	14	1.5	316 Stainless Steel	45	40	A	Without Locking Slot	Hardened	12	6	£65.59	0
K1698.1110611 View product	Black	6	M10x1	33	22.3	1.8	63.5	11	14	1.5	316 Stainless Steel	45	40	A	Without Locking Slot	Not Hardened	12	6	£52.96	0
K1698.1110612 View product	Blue	6	M10x1	33	22.3	1.8	63.5	11	14	1.5	316 Stainless Steel	45	40	A	Without Locking Slot	Not Hardened	12	6	£63.75	0
K1698.0320802 View product	Blue	8	M12	33	26.6	2.3	69.5	13	16	1.5	316 Stainless Steel	62	40	C	With Locking Slot	Hardened	12	8	£80.20	0
K1698.0320801 View product	Black	8	M12	33	26.6	2.3	69.5	13	16	1.5	316 Stainless Steel	62	40	C	With Locking Slot	Hardened	12	8	£64.56	0
K1698.1320801 View product	Black	8	M12	33	26.6	2.3	69.5	13	16	1.5	316 Stainless Steel	62	40	C	With Locking Slot	Not Hardened	12	8	£61.66	0
K1698.1320802 View product	Blue	8	M12	33	26.6	2.3	69.5	13	16	1.5	316 Stainless Steel	62	40	C	With Locking Slot	Not Hardened	12	8	£77.17	0
K1698.0120801 View product	Black	8	M12	33	26.6	2.3	69.5	13	16	1.5	316 Stainless Steel	62	40	A	Without Locking Slot	Hardened	12	8	£59.76	0
K1698.0120802 View product	Blue	8	M12	33	26.6	2.3	69.5	13	16	1.5	316 Stainless Steel	62	40	A	Without Locking Slot	Hardened	12	8	£74.27	0
K1698.1120801 View product	Black	8	M12	33	26.6	2.3	69.5	13	16	1.5	316 Stainless Steel	62	40	A	Without Locking Slot	Not Hardened	12	8	£57.03	0
K1698.1120802 View product	Blue	8	M12	33	26.6	2.3	69.5	13	16	1.5	316 Stainless Steel	62	40	A	Without Locking Slot	Not Hardened	12	8	£71.53	0
K1698.0320811 View product	Black	8	M12x1.5	33	26.6	2.3	69.5	13	16	1.5	316 Stainless Steel	62	40	C	With Locking Slot	Hardened	12	8	£64.56	0
K1698.0320812 View product	Blue	8	M12x1.5	33	26.6	2.3	69.5	13	16	1.5	316 Stainless Steel	62	40	C	With Locking Slot	Hardened	12	8	£80.20	0
K1698.1320812 View product	Blue	8	M12x1.5	33	26.6	2.3	69.5	13	16	1.5	316 Stainless Steel	62	40	C	With Locking Slot	Not Hardened	12	8	£77.17	0
K1698.1320811 View product	Black	8	M12x1.5	33	26.6	2.3	69.5	13	16	1.5	316 Stainless Steel	62	40	C	With Locking Slot	Not Hardened	12	8	£61.66	0
K1698.0120811 View product	Black	8	M12x1.5	33	26.6	2.3	69.5	13	16	1.5	316 Stainless Steel	62	40	A	Without Locking Slot	Hardened	12	8	£59.76	0
K1698.0120812 View product	Blue	8	M12x1.5	33	26.6	2.3	69.5	13	16	1.5	316 Stainless Steel	62	40	A	Without Locking Slot	Hardened	12	8	£74.27	0
K1698.1120812 View product	Blue	8	M12x1.5	33	26.6	2.3	69.5	13	16	1.5	316 Stainless Steel	62	40	A	Without Locking Slot	Not Hardened	12	8	£71.53	0
K1698.1120811 View product	Black	8	M12x1.5	33	26.6	2.3	69.5	13	16	1.5	316 Stainless Steel	62	40	A	Without Locking Slot	Not Hardened	12	8	£57.03	0
