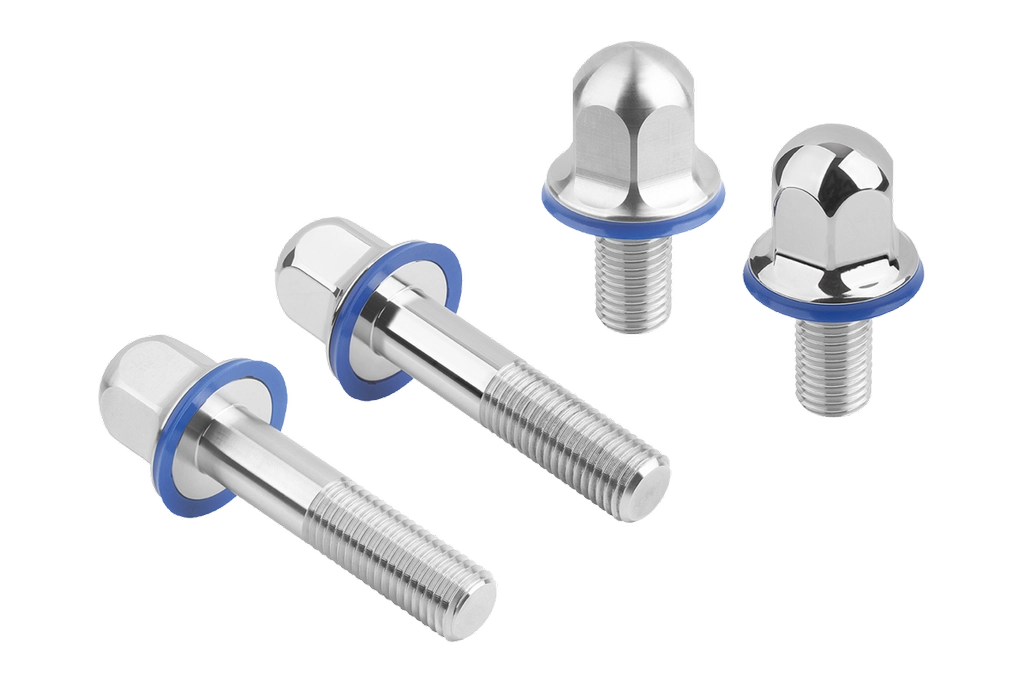

K1647 - Hygienic 316 Stainless Steel Hex Head Bolts Size M4-M16

K1647 - Hygienic 316 Stainless Steel Hex Head Bolts Size M4-M16

Product description:
The Hygienic DESIGN fastening system was specially developed for use in food-processing facilities. Special emphasis has been placed on the cleaning-optimised geometry and a surface finish of Ra ≤ 0.8 µm. Quick and easy product installation due to a pre-mounted sealing washer rounds off the overall package.

Material:
Hex head bolt: stainless steel 1.4404.
Sealing washer: EU10/2011 and FDA conform thermoplastic (POM).

Version:
Hex head bolt: Polished stainless steel.
Sealing washer: RAL5002 - Ultramarine blue (POM).

Note:
The contact face for the sealing ring must ideally be flat and perpendicular to the threaded hole and have a surface finish of Ra ≤ 0.8 µm.
Sealing ring is unsuitable for acidic cleaning (pH < 4) and oxidising agents.

Temperature range:
-20 °C to +100 °C (POM).

Advantages:
Pre-installed, exchangable seal washer.
Foodstuff conform material.
Cleaning optimised geometry.

On request:
Special versions.

Attention:
The suitability of the Hygienic DESIGN fasters for the respective application must be checked by the user. Depending on the loads and external influences (temperature, cleaning media, product media), the sealing washer should be inspected regularly and replaced if necessary.

Accessory:
Sealing washer K1649.
Stainless steel hex nut with sealing washer K1648.
Sockets with plastic inserts K1361.
Ring/open-end spanner with protective caps K1362.

Threaded version:
M4 - M16.

Supplied with:
Hex head bolt incl. seal washer.

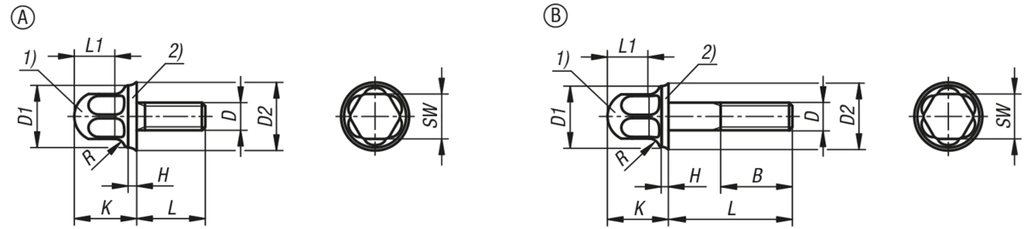

Drawing reference:
1) Hex head bolt
2) Sealing washer

Select your sizes

Line drawing placeholder

Move drawing here

	B	D	D1	D2	Form	Form Definition	H	K	L	L1	R	Surface Finish Body	SW	Price (Exc. Tax)	Stock
Filters
K1647.2110X20 View product	--	M10	22	23.74	A	Without Shaft	2.5	22.1	20	15	4	Not Polished	16	£9.39	0
K1647.1110X20 View product	--	M10	22	23.74	A	Without Shaft	2.5	22.1	20	15	4	Polished	16	£11.07	0
K1647.2110X25 View product	--	M10	22	23.74	A	Without Shaft	2.5	22.1	25	15	4	Not Polished	16	£9.54	0
K1647.1110X25 View product	--	M10	22	23.74	A	Without Shaft	2.5	22.1	25	15	4	Polished	16	£11.23	0
K1647.2110X30 View product	--	M10	22	23.74	A	Without Shaft	2.5	22.1	30	15	4	Not Polished	16	£9.91	0
K1647.1110X30 View product	--	M10	22	23.74	A	Without Shaft	2.5	22.1	30	15	4	Polished	16	£11.63	0
K1647.2110X35 View product	--	M10	22	23.74	A	Without Shaft	2.5	22.1	35	15	4	Not Polished	16	£10.50	0
K1647.1110X35 View product	--	M10	22	23.74	A	Without Shaft	2.5	22.1	35	15	4	Polished	16	£12.36	0
K1647.2110X40 View product	--	M10	22	23.74	A	Without Shaft	2.5	22.1	40	15	4	Not Polished	16	£11.46	0
K1647.1110X40 View product	--	M10	22	23.74	A	Without Shaft	2.5	22.1	40	15	4	Polished	16	£13.45	0
K1647.2110X45 View product	26	M10	22	23.74	B	With Shaft	2.5	22.1	45	15	4	Not Polished	16	£12.02	0
K1647.1110X45 View product	26	M10	22	23.74	B	With Shaft	2.5	22.1	45	15	4	Polished	16	£14.15	0
K1647.2110X50 View product	26	M10	22	23.74	B	With Shaft	2.5	22.1	50	15	4	Not Polished	16	£12.74	0
K1647.1110X50 View product	26	M10	22	23.74	B	With Shaft	2.5	22.1	50	15	4	Polished	16	£15.00	0
K1647.2110X60 View product	26	M10	22	23.74	B	With Shaft	2.5	22.1	60	15	4	Not Polished	16	£13.71	0
K1647.1110X60 View product	26	M10	22	23.74	B	With Shaft	2.5	22.1	60	15	4	Polished	16	£16.14	0
K1647.2110X70 View product	26	M10	22	23.74	B	With Shaft	2.5	22.1	70	15	4	Not Polished	16	£15.06	0
K1647.1110X70 View product	26	M10	22	23.74	B	With Shaft	2.5	22.1	70	15	4	Polished	16	£17.71	0
K1647.2110X80 View product	26	M10	22	23.74	B	With Shaft	2.5	22.1	80	15	4	Not Polished	16	£16.34	0
K1647.1110X80 View product	26	M10	22	23.74	B	With Shaft	2.5	22.1	80	15	4	Polished	16	£19.20	0
K1647.2112X25 View product	--	M12	26	28.25	A	Without Shaft	3	25.1	25	16.1	5	Not Polished	18	£15.21	0
K1647.1112X25 View product	--	M12	26	28.25	A	Without Shaft	3	25.1	25	16.1	5	Polished	18	£17.92	0
K1647.2112X30 View product	--	M12	26	28.25	A	Without Shaft	3	25.1	30	16.1	5	Not Polished	18	£16.66	0
K1647.1112X30 View product	--	M12	26	28.25	A	Without Shaft	3	25.1	30	16.1	5	Polished	18	£19.61	0
K1647.2112X35 View product	--	M12	26	28.25	A	Without Shaft	3	25.1	35	16.1	5	Not Polished	18	£16.92	0
K1647.1112X35 View product	--	M12	26	28.25	A	Without Shaft	3	25.1	35	16.1	5	Polished	18	£19.91	0
K1647.2112X40 View product	--	M12	26	28.25	A	Without Shaft	3	25.1	40	16.1	5	Not Polished	18	£17.27	0
K1647.1112X40 View product	--	M12	26	28.25	A	Without Shaft	3	25.1	40	16.1	5	Polished	18	£20.32	0
K1647.2112X45 View product	--	M12	26	28.25	A	Without Shaft	3	25.1	45	16.1	5	Not Polished	18	£18.42	0
K1647.1112X45 View product	--	M12	26	28.25	A	Without Shaft	3	25.1	45	16.1	5	Polished	18	£21.65	0
K1647.2112X50 View product	30	M12	26	28.25	B	With Shaft	3	25.1	50	16.1	5	Not Polished	18	£19.12	0
K1647.1112X50 View product	30	M12	26	28.25	B	With Shaft	3	25.1	50	16.1	5	Polished	18	£22.48	0
K1647.2112X60 View product	30	M12	26	28.25	B	With Shaft	3	25.1	60	16.1	5	Not Polished	18	£20.82	0
K1647.1112X60 View product	30	M12	26	28.25	B	With Shaft	3	25.1	60	16.1	5	Polished	18	£24.49	0
K1647.2112X70 View product	30	M12	26	28.25	B	With Shaft	3	25.1	70	16.1	5	Not Polished	18	£22.56	0
K1647.1112X70 View product	30	M12	26	28.25	B	With Shaft	3	25.1	70	16.1	5	Polished	18	£26.54	0
K1647.2112X80 View product	30	M12	26	28.25	B	With Shaft	3	25.1	80	16.1	5	Not Polished	18	£26.37	0
K1647.1112X80 View product	30	M12	26	28.25	B	With Shaft	3	25.1	80	16.1	5	Polished	18	£31.03	0
K1647.2116X30 View product	--	M16	35	37.25	A	Without Shaft	3	32.1	30	21.8	6	Not Polished	24	£21.22	0
K1647.1116X30 View product	--	M16	35	37.25	A	Without Shaft	3	32.1	30	21.8	6	Polished	24	£24.96	0
K1647.2116X35 View product	--	M16	35	37.25	A	Without Shaft	3	32.1	35	21.8	6	Not Polished	24	£21.86	0
K1647.1116X35 View product	--	M16	35	37.25	A	Without Shaft	3	32.1	35	21.8	6	Polished	24	£25.70	0
K1647.2116X40 View product	--	M16	35	37.25	A	Without Shaft	3	32.1	40	21.8	6	Not Polished	24	£22.38	0
K1647.1116X40 View product	--	M16	35	37.25	A	Without Shaft	3	32.1	40	21.8	6	Polished	24	£26.33	0
K1647.2116X45 View product	--	M16	35	37.25	A	Without Shaft	3	32.1	45	21.8	6	Not Polished	24	£23.51	0
K1647.1116X45 View product	--	M16	35	37.25	A	Without Shaft	3	32.1	45	21.8	6	Polished	24	£27.65	0
K1647.2116X50 View product	--	M16	35	37.25	A	Without Shaft	3	32.1	50	21.8	6	Not Polished	24	£24.91	0
K1647.1116X50 View product	--	M16	35	37.25	A	Without Shaft	3	32.1	50	21.8	6	Polished	24	£29.31	0
